Article No. 88090
AQUAFIX KBPPP Coalescence separator with bypass
KCBpPP 04
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

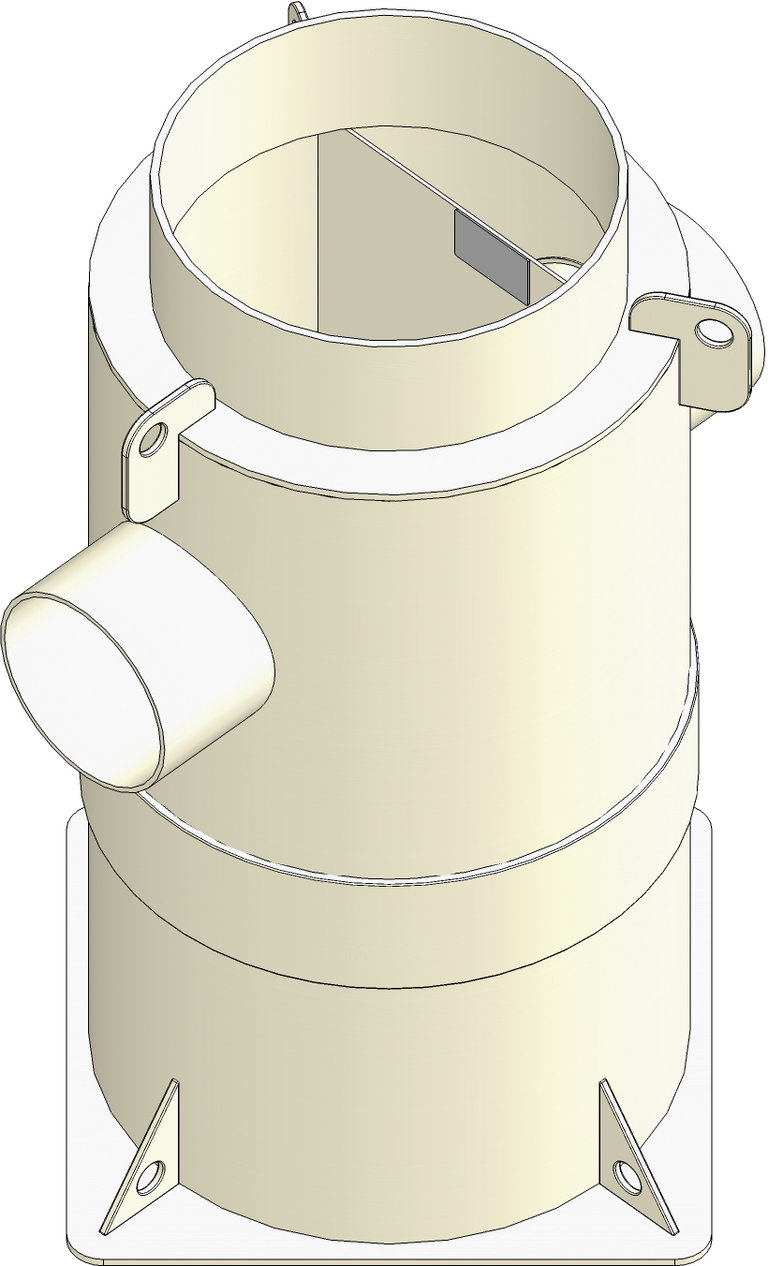

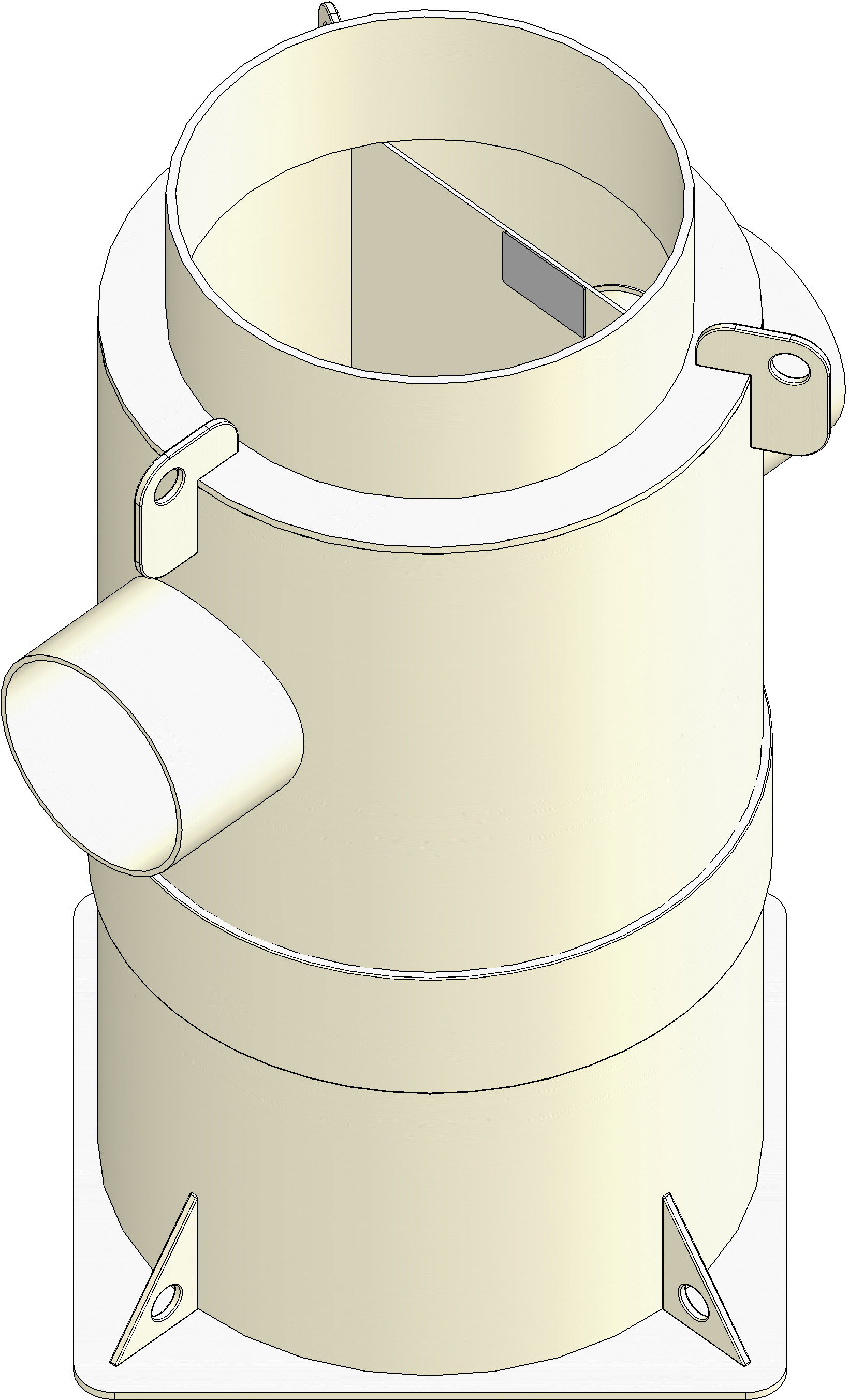

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

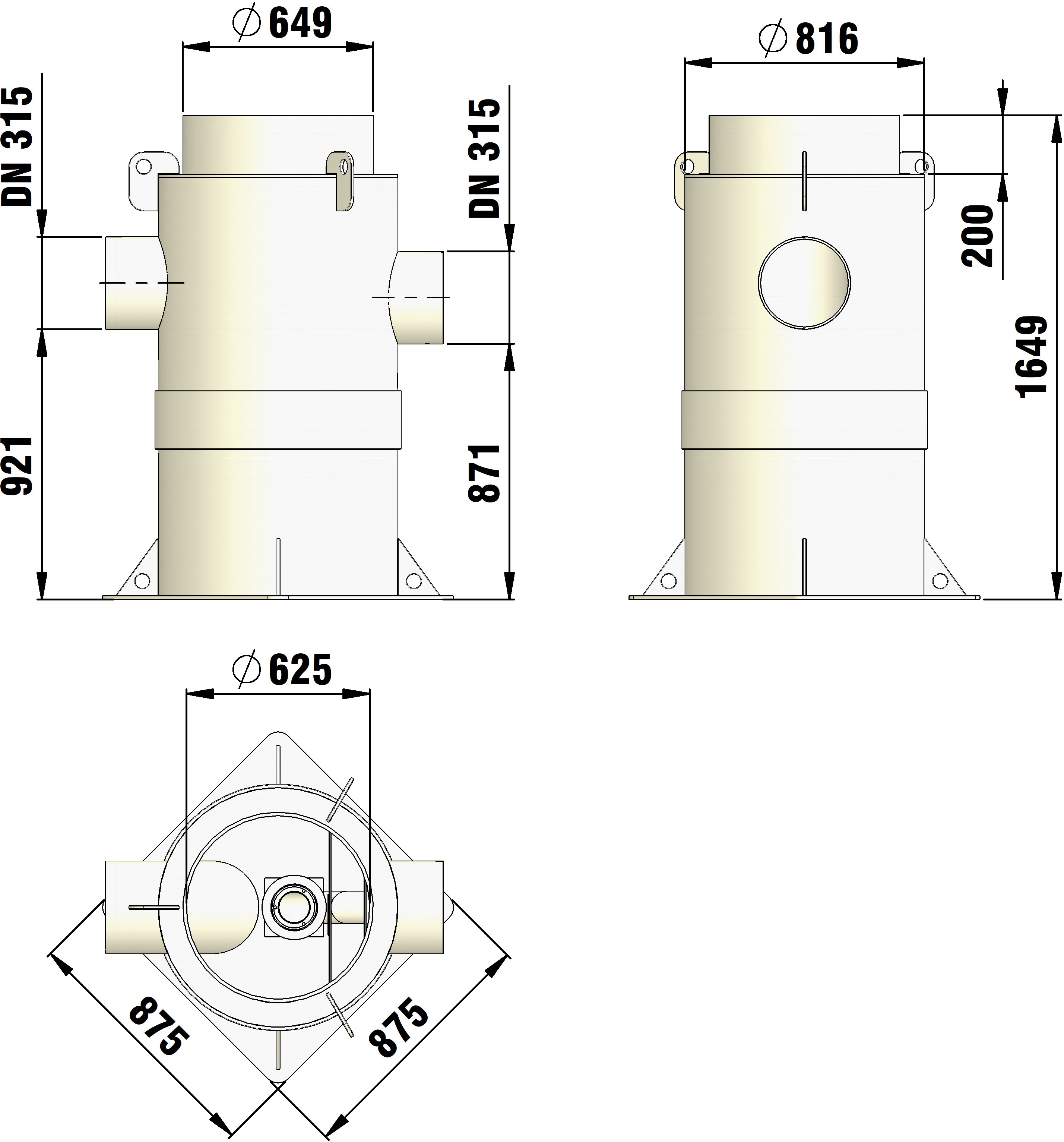

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88090
Length
875 mm
Width
875 mm
External diameter
816 mm
Height
1649 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
4.00 l/s
Bypass
single bypass
Durchflussleistung
20.0 l/s
Sludge trap capacity
-
Separator capacity
419 l
DN in-/outlet
315 mm
HE H inlet
921 mm
HA height outlet
871 mm
DNE Manhole 1
625 mm
Regulations
EN 858 conditionally
Sales text
AQUAFIX Compact Coalescence Separator - Single unit with Bypass KCBpPP 04 made of PP
Product description
AQUAFIX Compact Coalescence Separator - Single unit with Bypass KCBpPP 04 made of PP
Packaging unit
-
