Article No. 88110
AQUAFIX SKBPPP Coalescence separator with sludge trap and bypass
SKCBpPP 04/0400
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

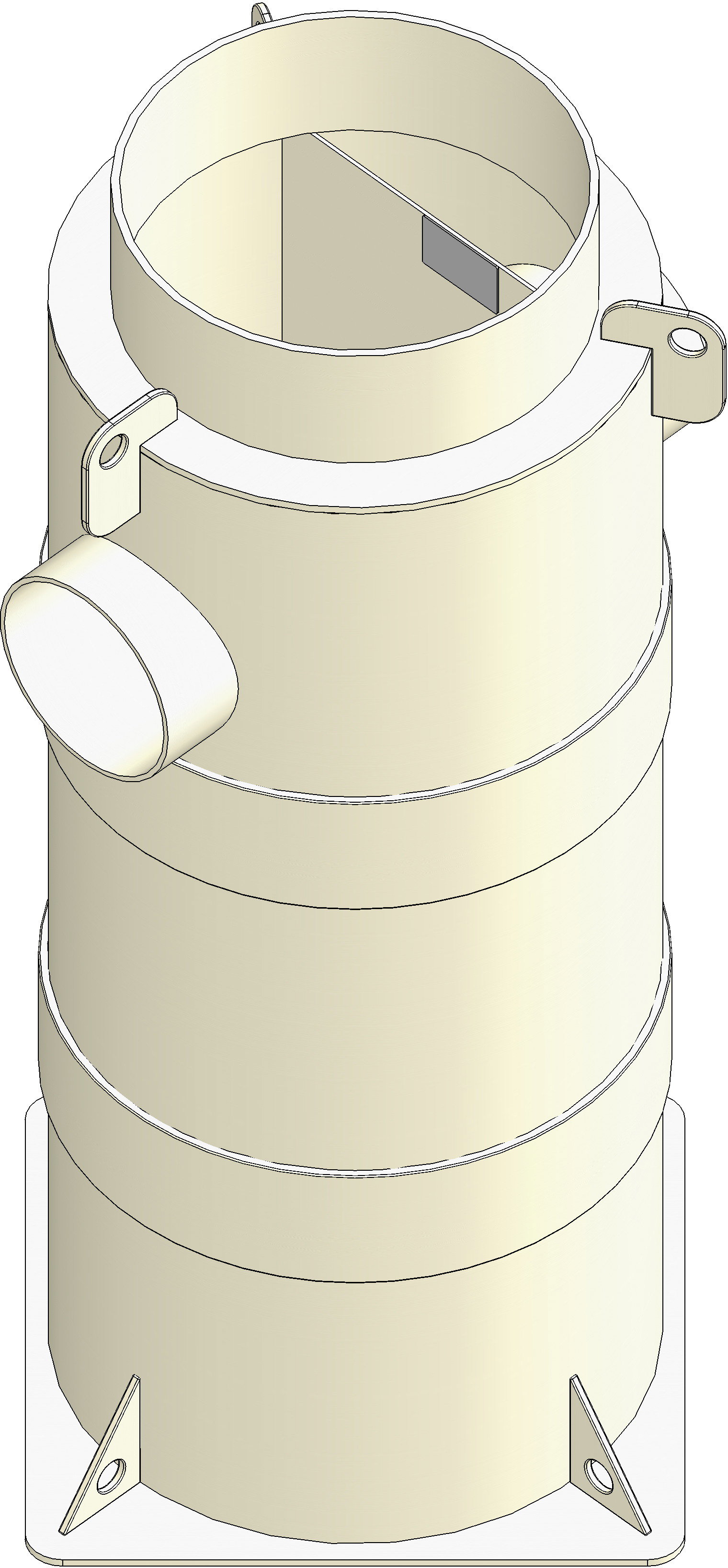

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

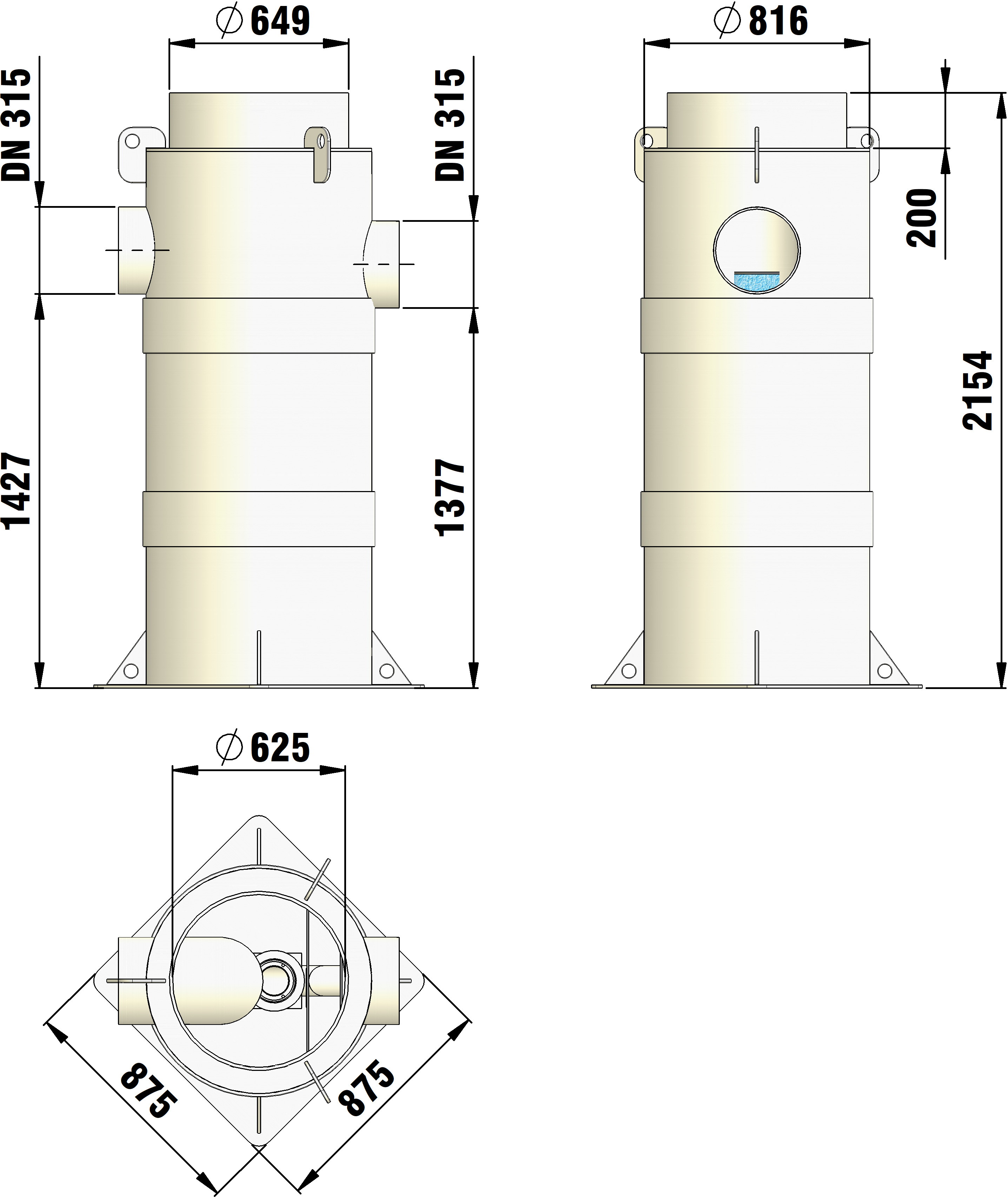

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88110
Length
875 mm
Width
875 mm
External diameter
816 mm
Height
2154 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
4.00 l/s
Bypass
single bypass
Durchflussleistung
20.0 l/s
Sludge trap capacity
400 l
Separator capacity
267 l
DN in-/outlet
315 mm
HE H inlet
1427 mm
HA height outlet
1377 mm
DNE Manhole 1
625 mm
Regulations
EN 858 conditionally
Sales text
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 04/0400 made of PP
Product description
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 04/0400 made of PP
Packaging unit
-
