Article No. 88111
AQUAFIX SKBPPP Coalescence separator with sludge trap and bypass
SKCBpPP 06/0600
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

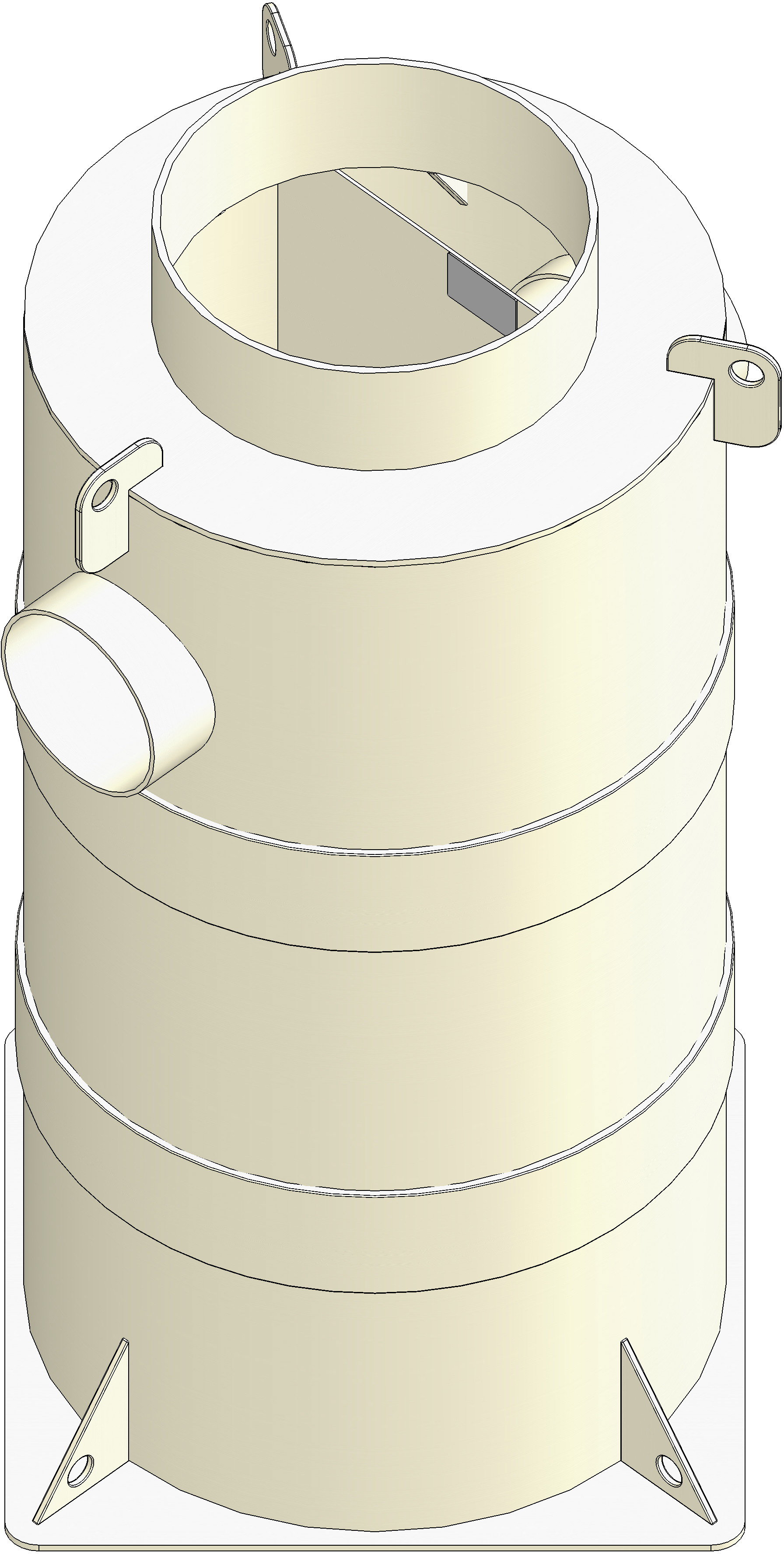

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

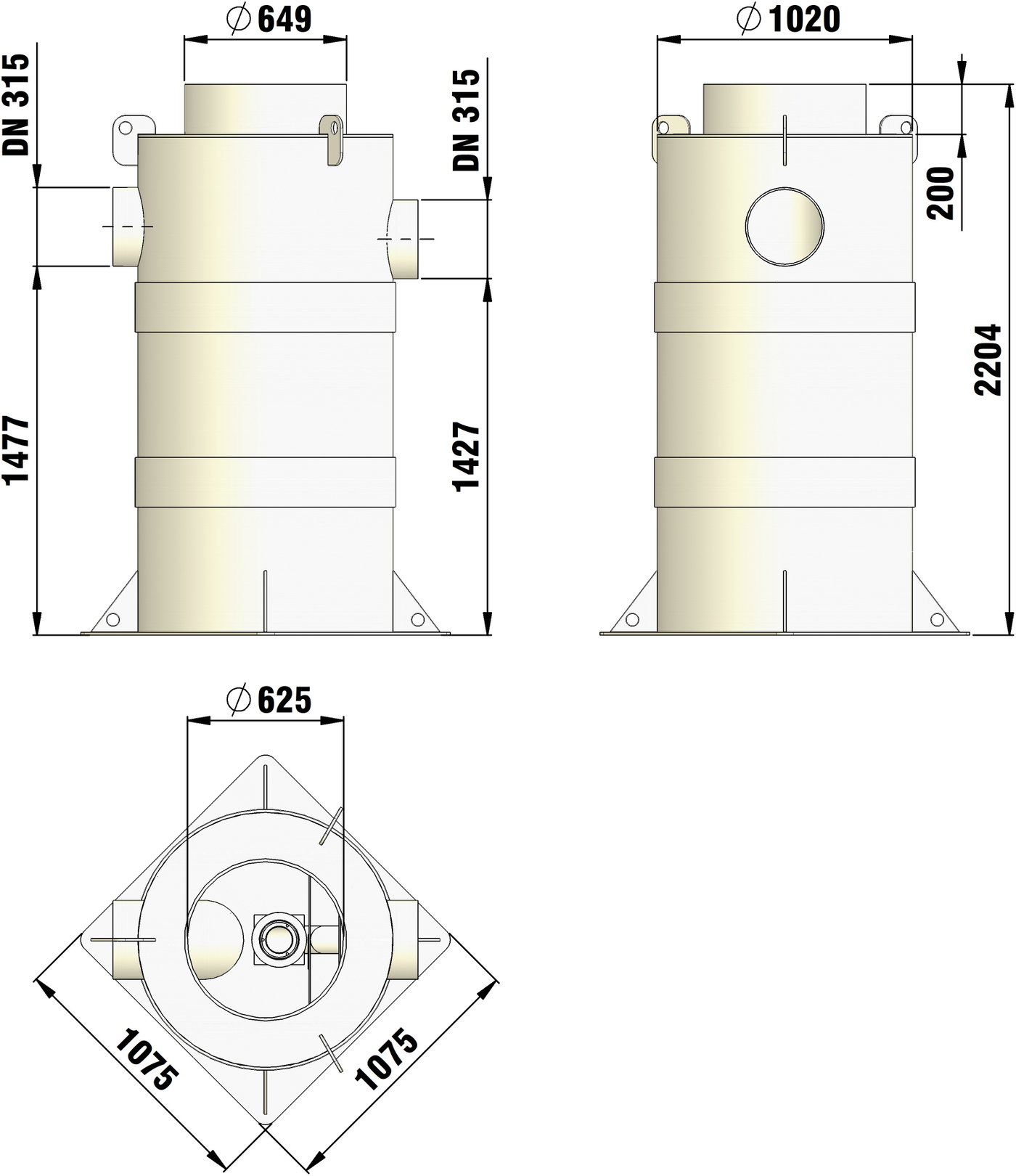

Technical drawing
Drawing (CAD)

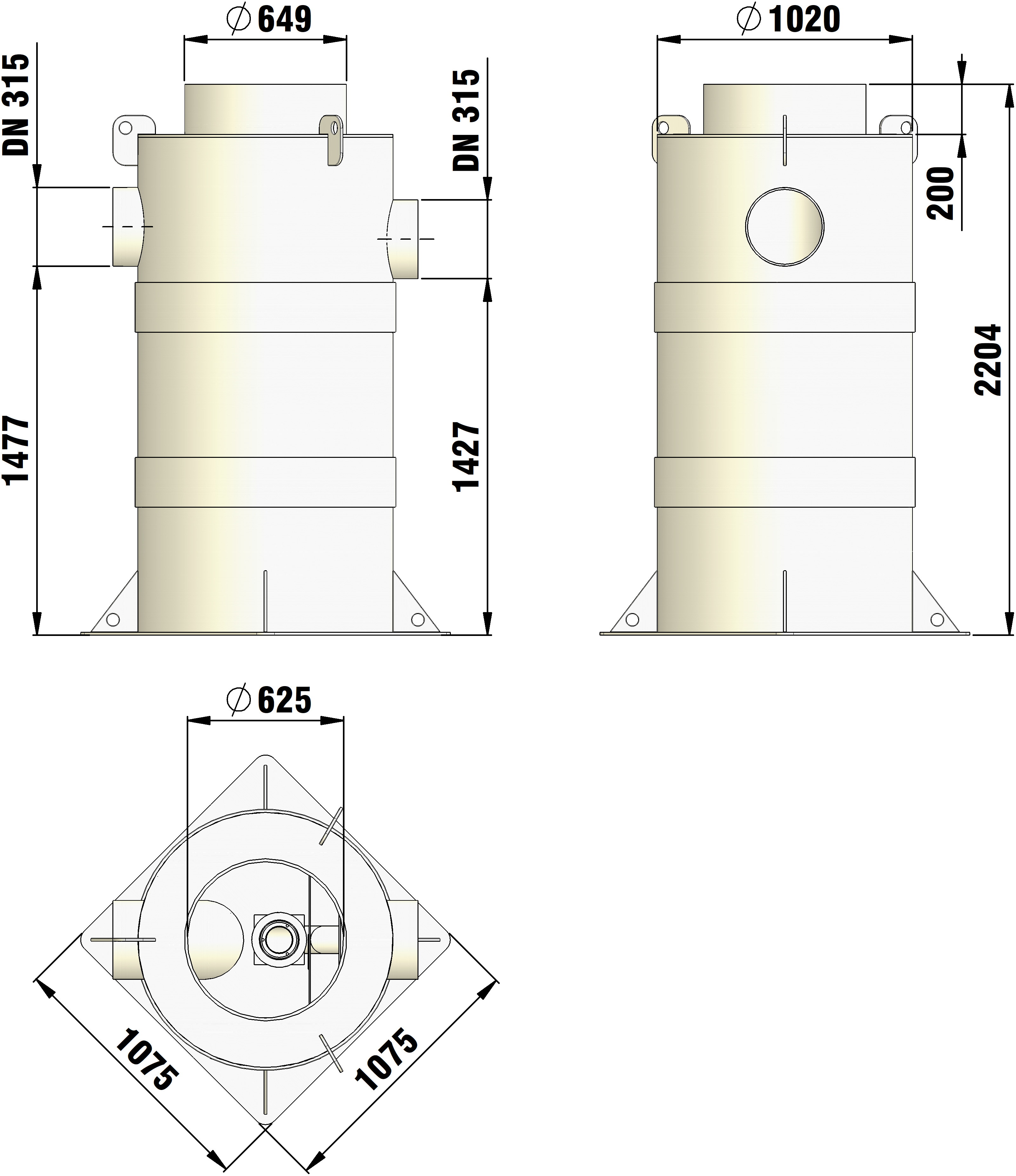

Drawing
Technical information and metrics
Article No.
88111
Length
1075 mm
Width
1075 mm
External diameter
1020 mm
Height
2204 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
6.00 l/s
Bypass
single bypass
Durchflussleistung
30.0 l/s
Sludge trap capacity
600 l
Separator capacity
378 l
DN in-/outlet
315 mm
HE H inlet
1477 mm
HA height outlet
1427 mm
DNE Manhole 1
625 mm
Regulations
EN 858 conditionally
Sales text
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 06/0600 made of PP
Product description
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 06/0600 made of PP
Packaging unit
-
