Article No. 88112
AQUAFIX SKBPPP Coalescence separator with sludge trap and bypass
SKCBpPP 08/0800
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

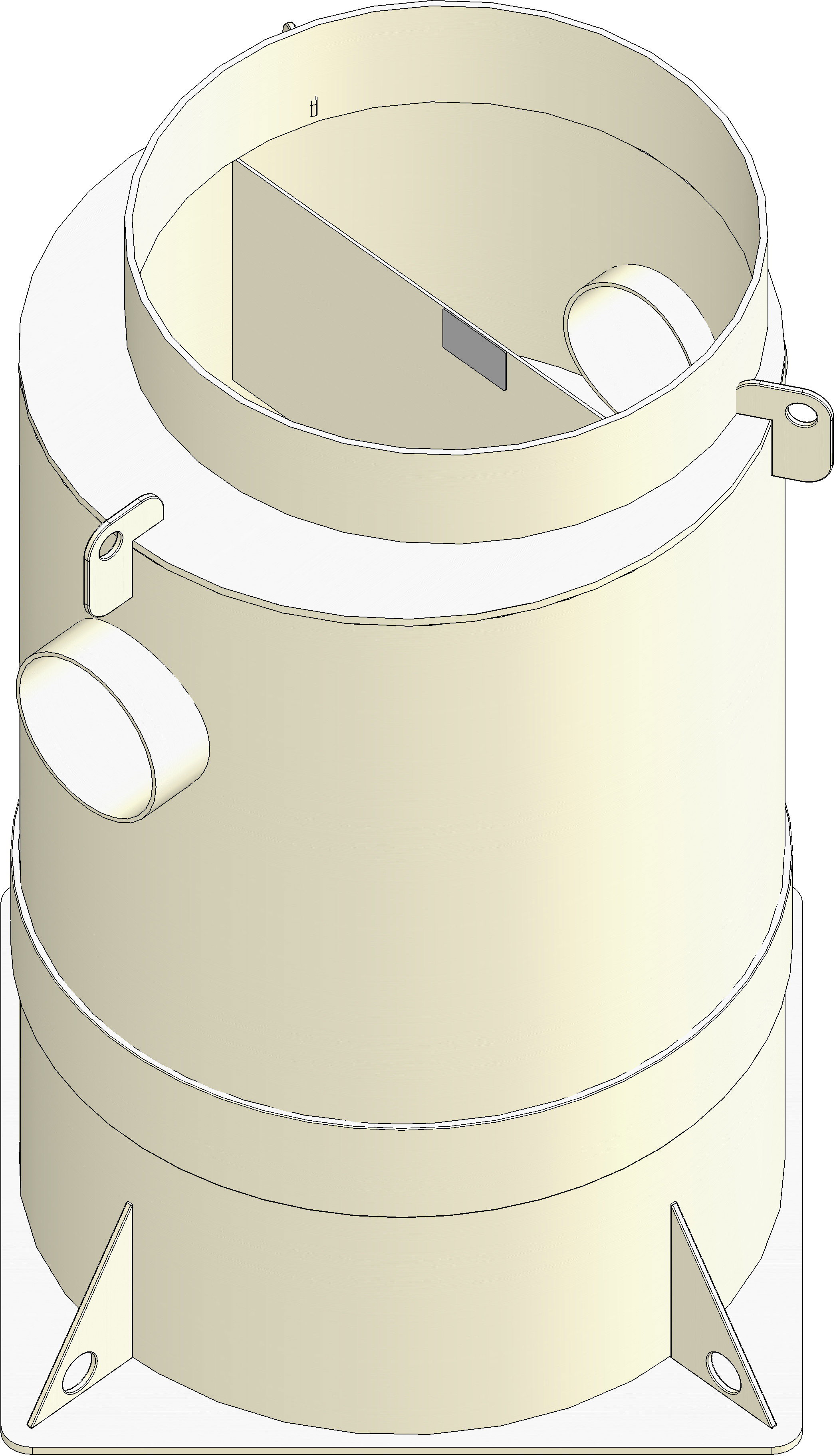

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

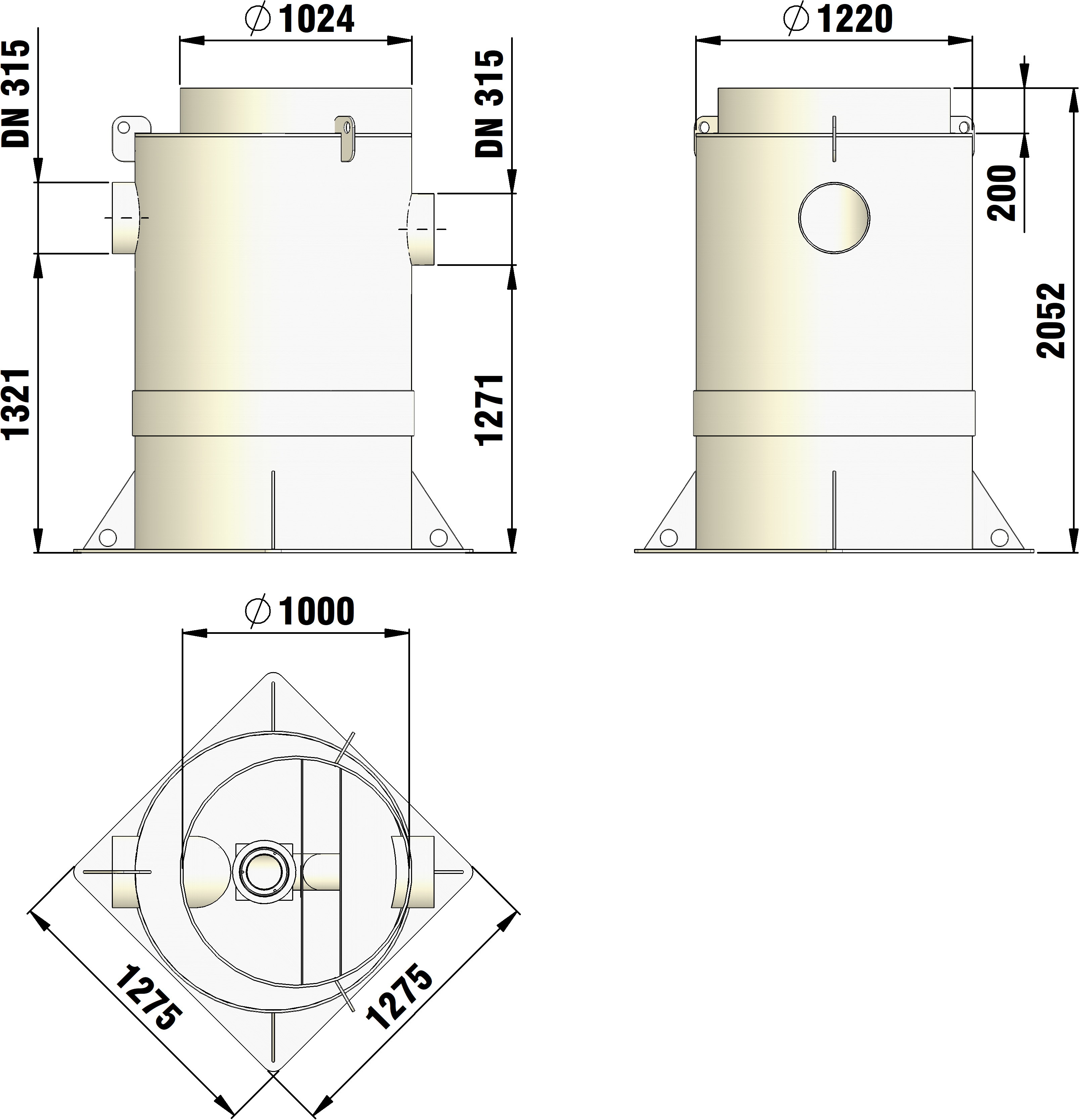

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88112
Length
1275 mm
Width
1275 mm
External diameter
1220 mm
Height
2052 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
8.00 l/s
Bypass
single bypass
Durchflussleistung
40.0 l/s
Sludge trap capacity
800 l
Separator capacity
539 l
DN in-/outlet
315 mm
HE H inlet
1321 mm
HA height outlet
1271 mm
DNE Manhole 1
1000 mm
Regulations
EN 858 conditionally
Sales text
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 08/0800 made of PP
Product description
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 08/0800 made of PP
Packaging unit
-
