Article No. 88163
AQUAFIX SKmPPE Coalescence separator with sludge trap and pump chamber
SKmPPE 10/1000
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

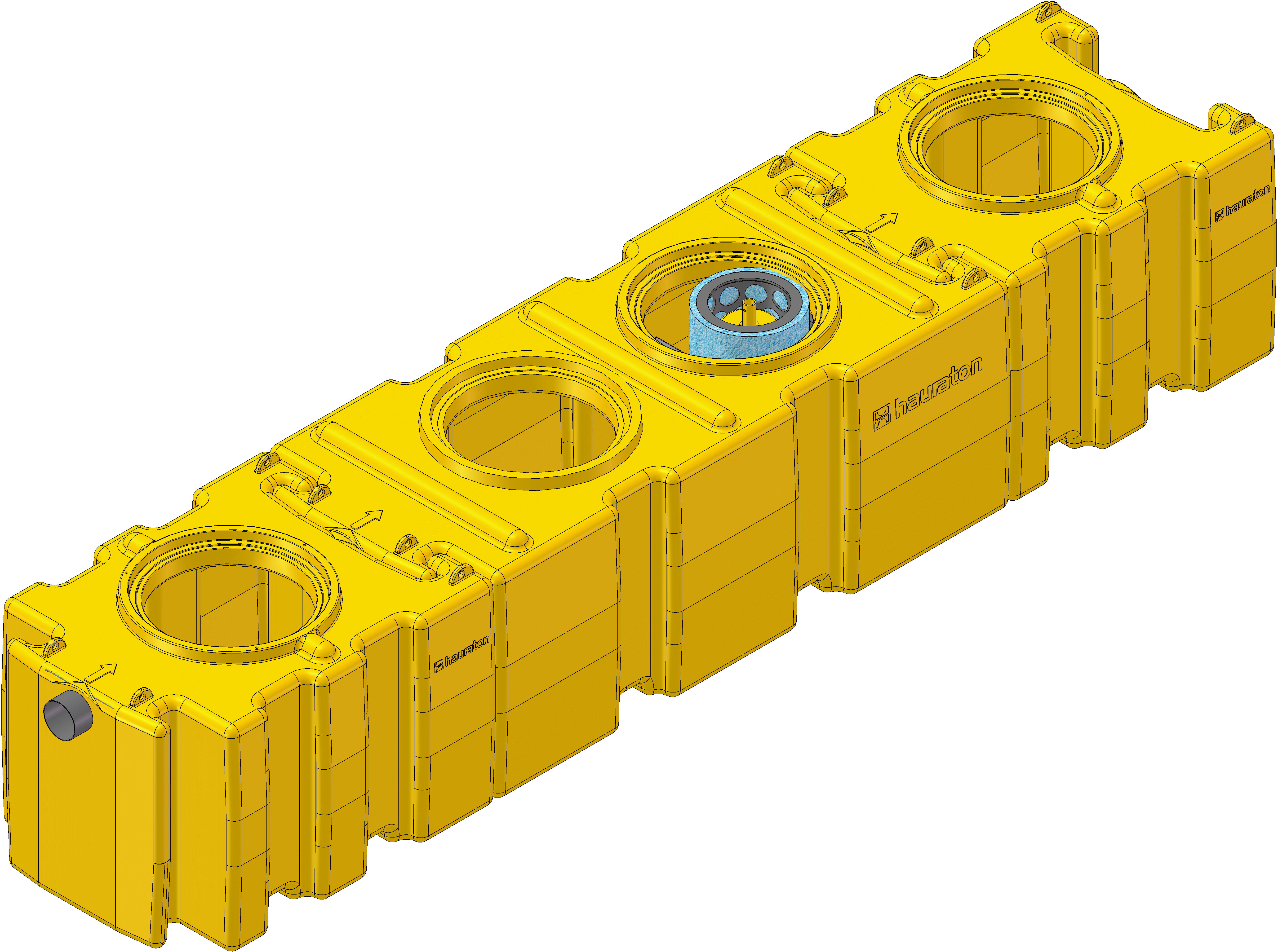

Product image

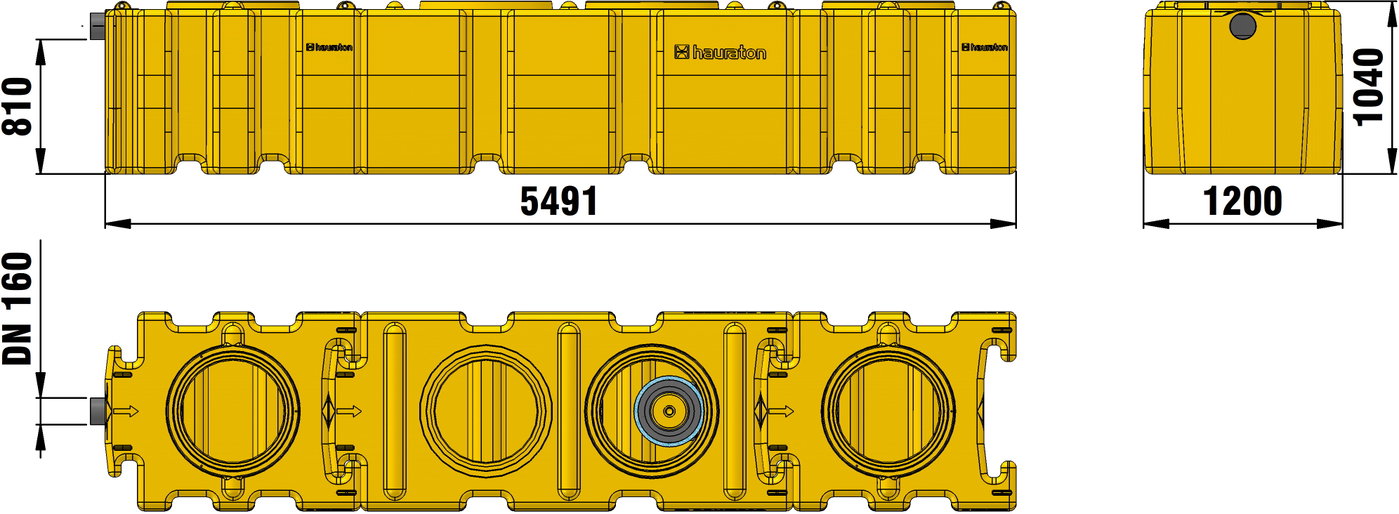

Technical drawing
Drawing (CAD)

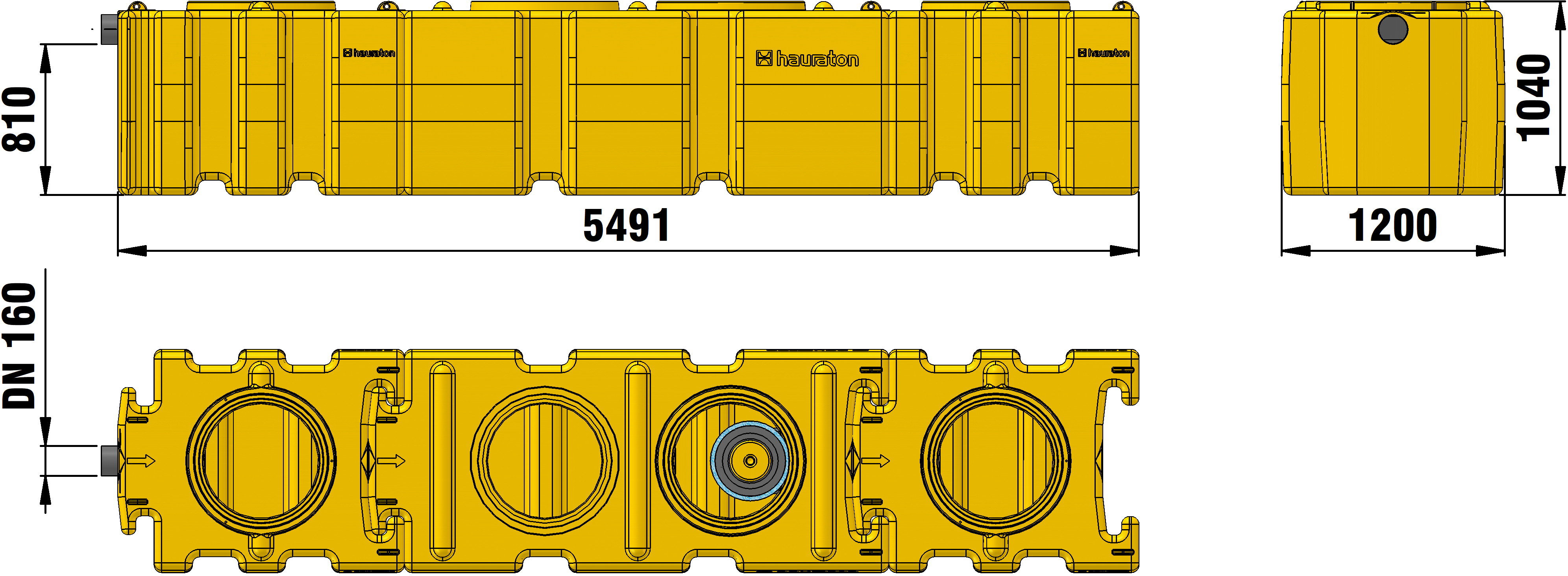

Drawing
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
88163
Length
5491 mm
Width
1200 mm
Height
1040 mm
Weight
-
Material
AQUAFIX Coalescence material, AQUAFIX PE
Nominal size
10.00 l/s
Bypass
without bypass
Durchflussleistung
10.0 l/s
Sludge trap capacity
1000 l
Separator capacity
2565 l
DN in-/outlet
160 mm
HE H inlet
810 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE Coalescence Separator with sludge trap and pump chamber SKmPPE 10/1000
Product description
AQUAFIX 10 PE Coalescence Separator with sludge trap and pump chamber SKmPPE 10/1000, item no. 88163
Packaging unit
-
