Article No. 33435

DACHFIX Drain box, base

Sump unit 30 x 30 mm for type 45/75 galvanised

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

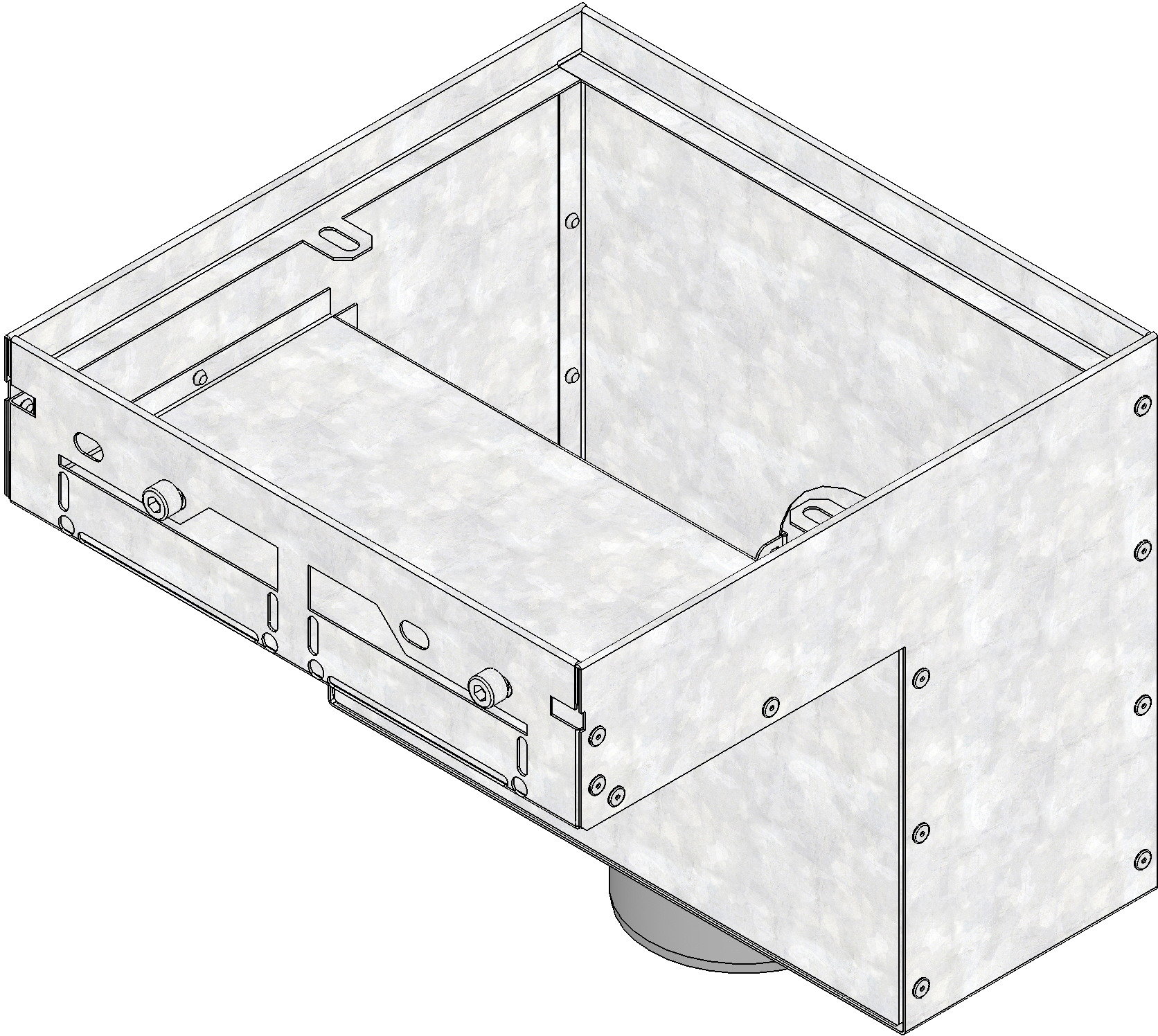

Product image

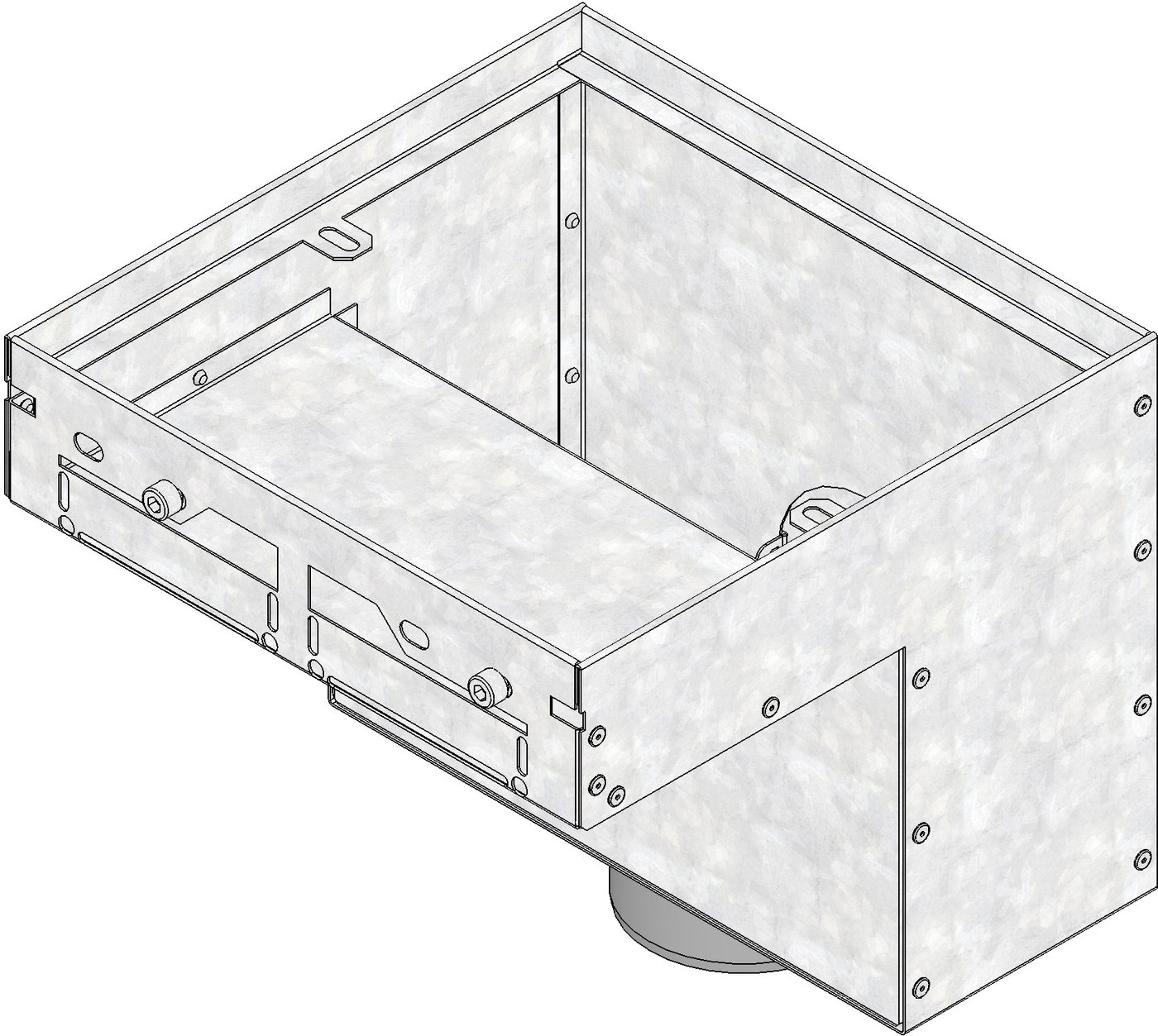

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
33435
Length
300 mm
Width
300 mm
Height
250 mm
Weight
2.81 kg
Material
PVC-U, strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
DACHFIX STEEL Sump unit 300 type 45/75, galvanised, with PVC-screw socket DN/OD 100, grey and blind cover, galvanised, for DACHFIX STEEL type 45/75
Product description
DACHFIX STEEL Sump unit 300 type 45/75, made of strip-galvanised steel, tilted and riveted, overhanging construction, in accordance to load class A 15 pedestrian and wheelchair-accessible, with internal support flanges on all sides as cover support, with PVC-U screw socket DN/OD 100, grey and blind cover, galvanised, easy mountable to channel run, connection vertically as well as horizontally possible with PVC-U screw socket DN/OD 100, LxWxH 300x300x250 mm, item no. 33435
Packaging unit
-

Tender Texts

Installation instructions
Installation instructions

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example
