Article No. 98012
DRAINFIX CLEAN RNC 300 filter substrate channel with ductile iron cover slot width 2x 142/18 mm class E 600 with drainage pipe with geotextile and connection element
Type 010, starting element, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

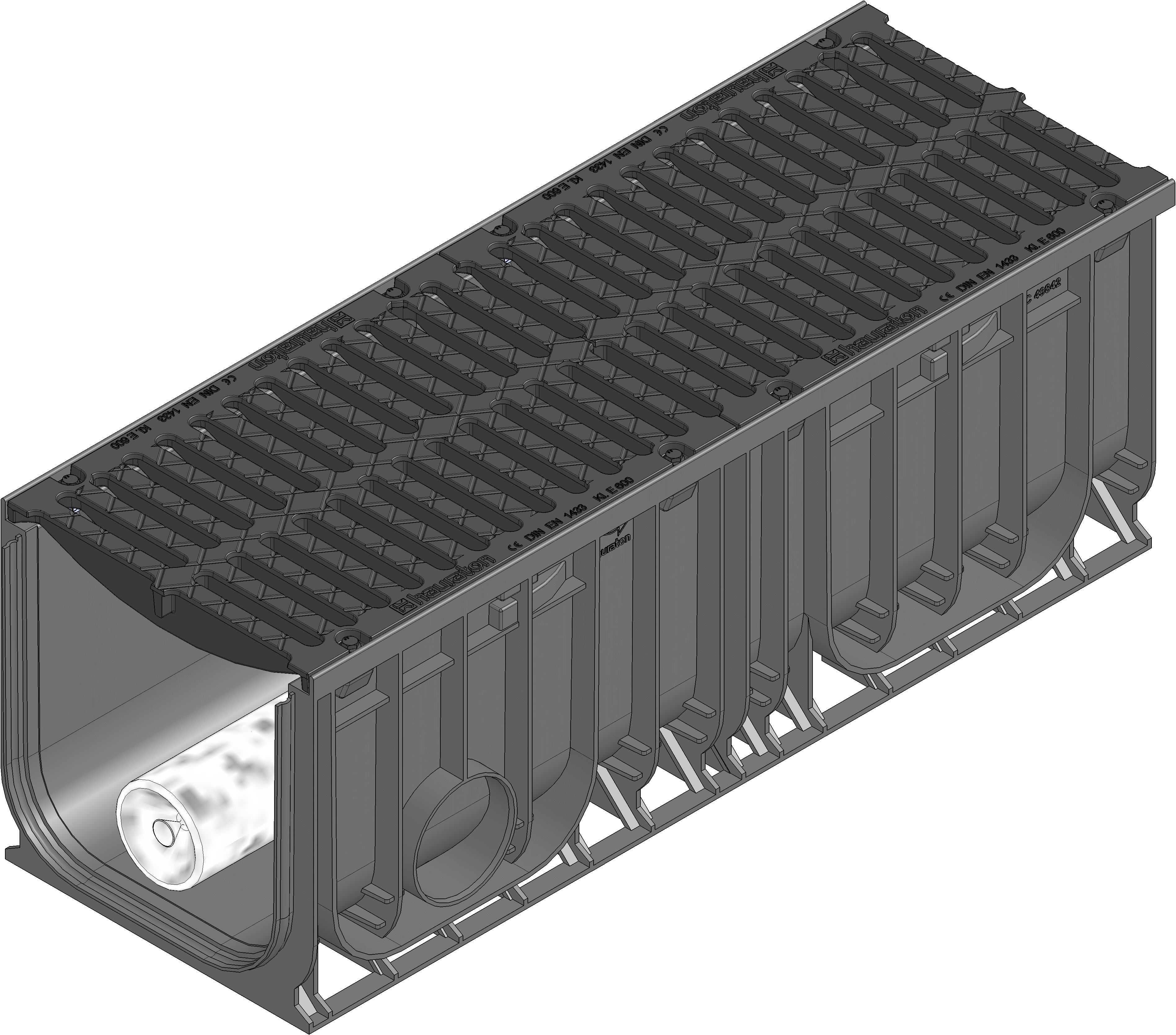

Product image
Technical drawing
Drawing (CAD)

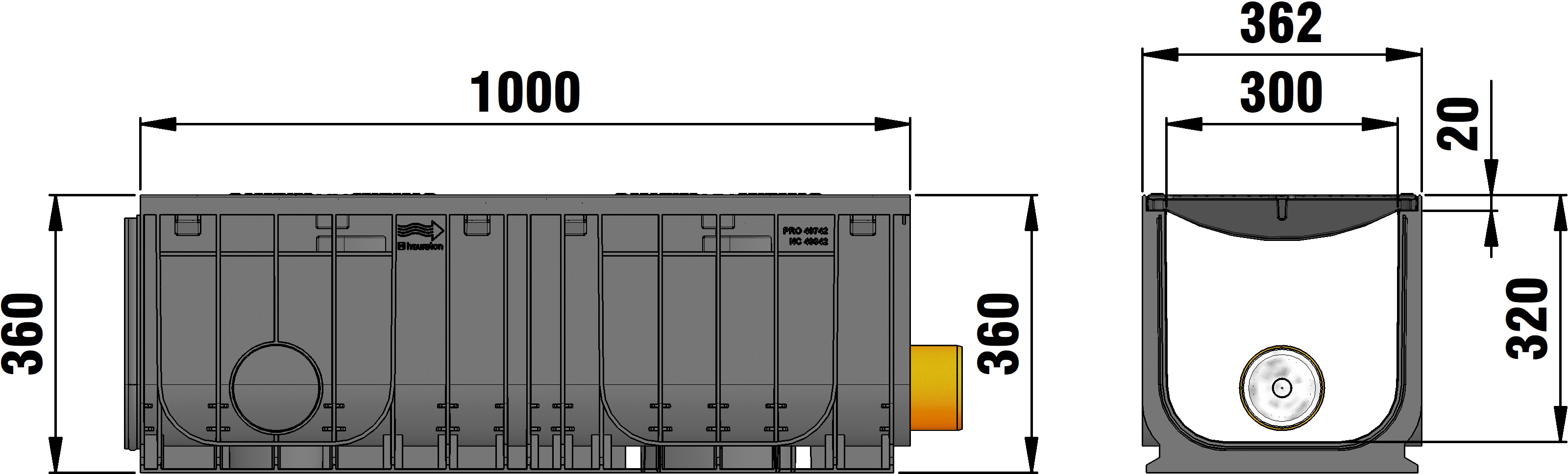

Drawing
Data Sheet
Technical information and metrics
Article No.
98012
Length
1000 mm
Width
362 mm
Height
360 mm
Weight
36.34 kg
Retention volume
30.7 l/m
Retention cross-section
307.0 cm²
Height filling of substratum
(effective, from the middle of the filter grid tube to the top edge of the substrate)
150.0 mm
Substrate requirement
53.0 l/lfdm.
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN RNC 300 BASIC type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, with ductile iron cover 2x SW 142/18 mm, black, cl. E 600, locked, with drainage pipe DN/OD 100 with geotextile and co
Product description
DRAINFIX CLEAN RNC 300 BASIC type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, made of recycled polypropylene, nominal width 300 mm, CE compliant, tested according to the requirements of the German technical authority (DIBt), with integrated edge frames made of composite, incl. DRAINFIX CLEAN-Drainage pipe DN/OD 100 wrapped with geotextile and connector, tied at the end, with ductile iron cover 2x SW 142/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - E 600 according to EN 1433, with longitudinal slide protection and locking, LxWxH 1000x362x360 mm, item no . 98012
Packaging unit
-
Tender Texts
Installation example

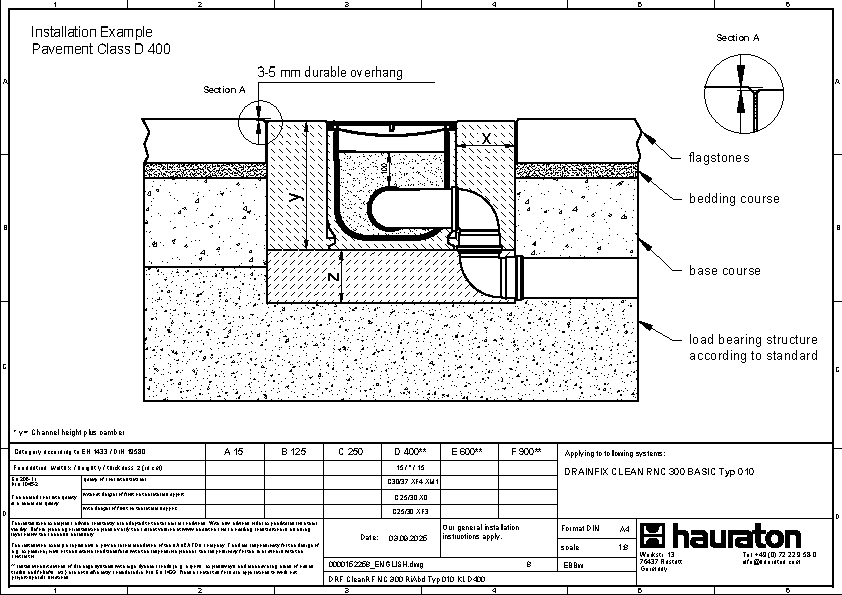

Pavement class D 400,

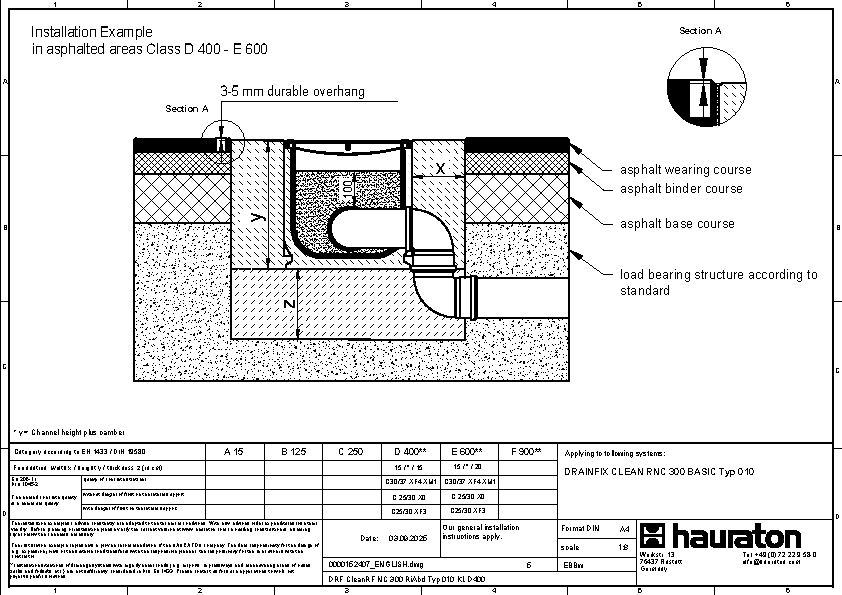

Asphalt class D 400 - E 600,

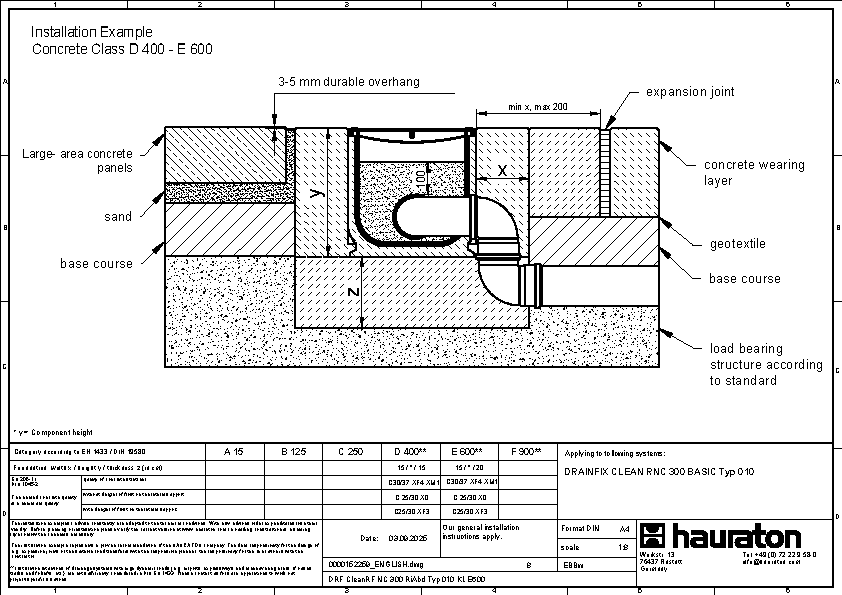

Concrete class D 400 - E 600,

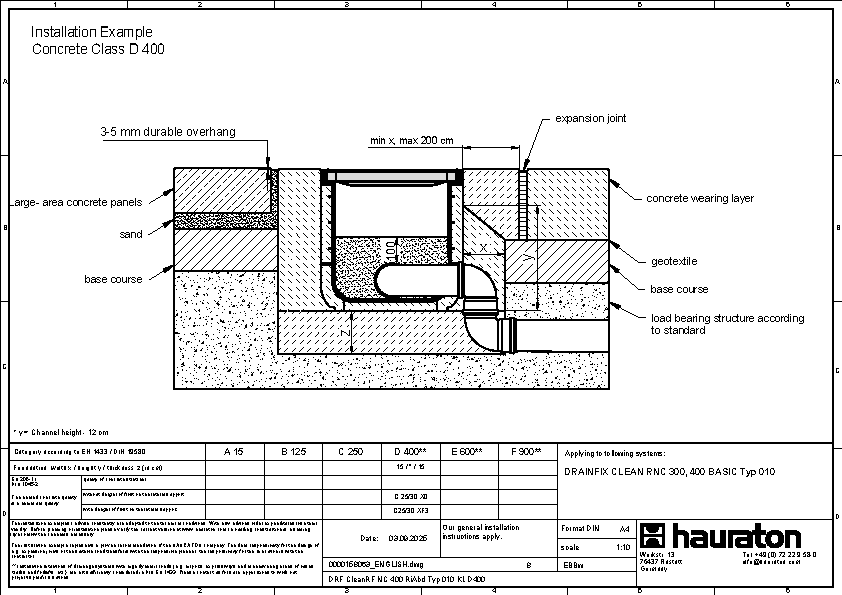

Concrete class D 400,

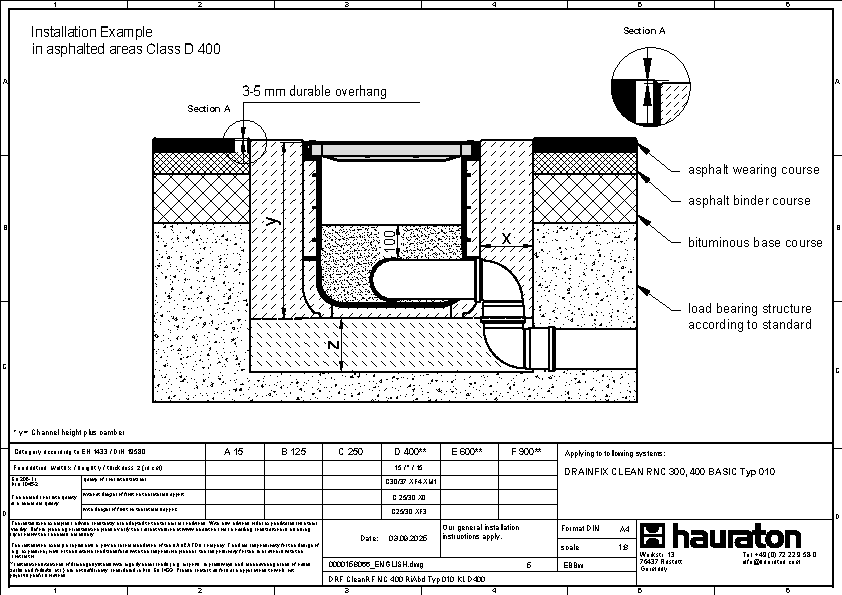

Asphalt class D 400,

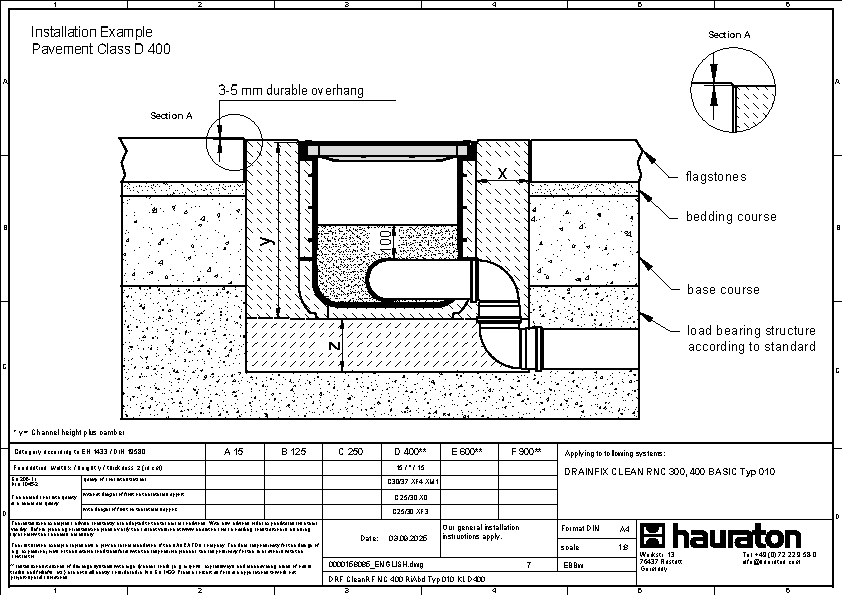

Pavement class D 400,

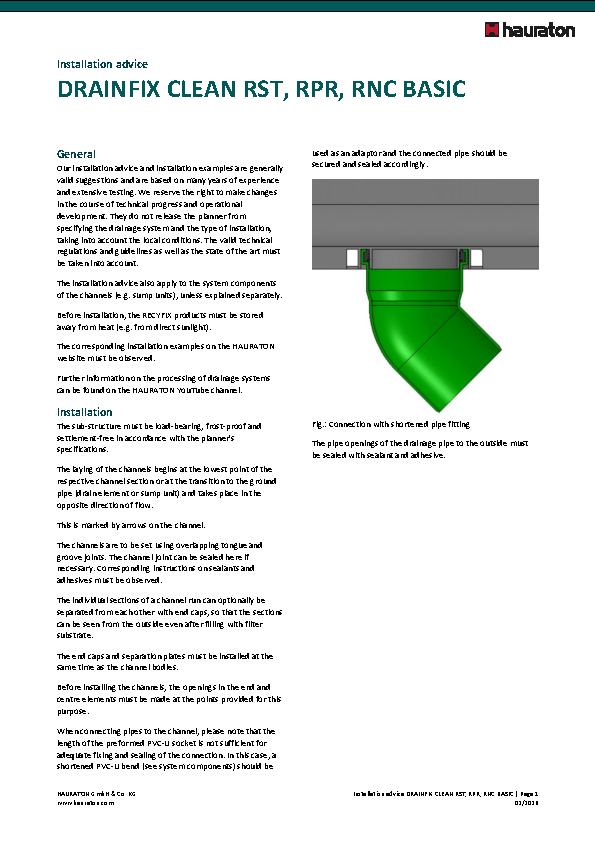

Installation instructions
