Article No. 98039
DRAINFIX CLEAN RNC 400 filter substrate channel with ductile iron cover slot width 3x 118 (133)/18 mm for class D 400 with drainage pipe with geotextile and connection element
Type 010, ending element with lateral connection possibility, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

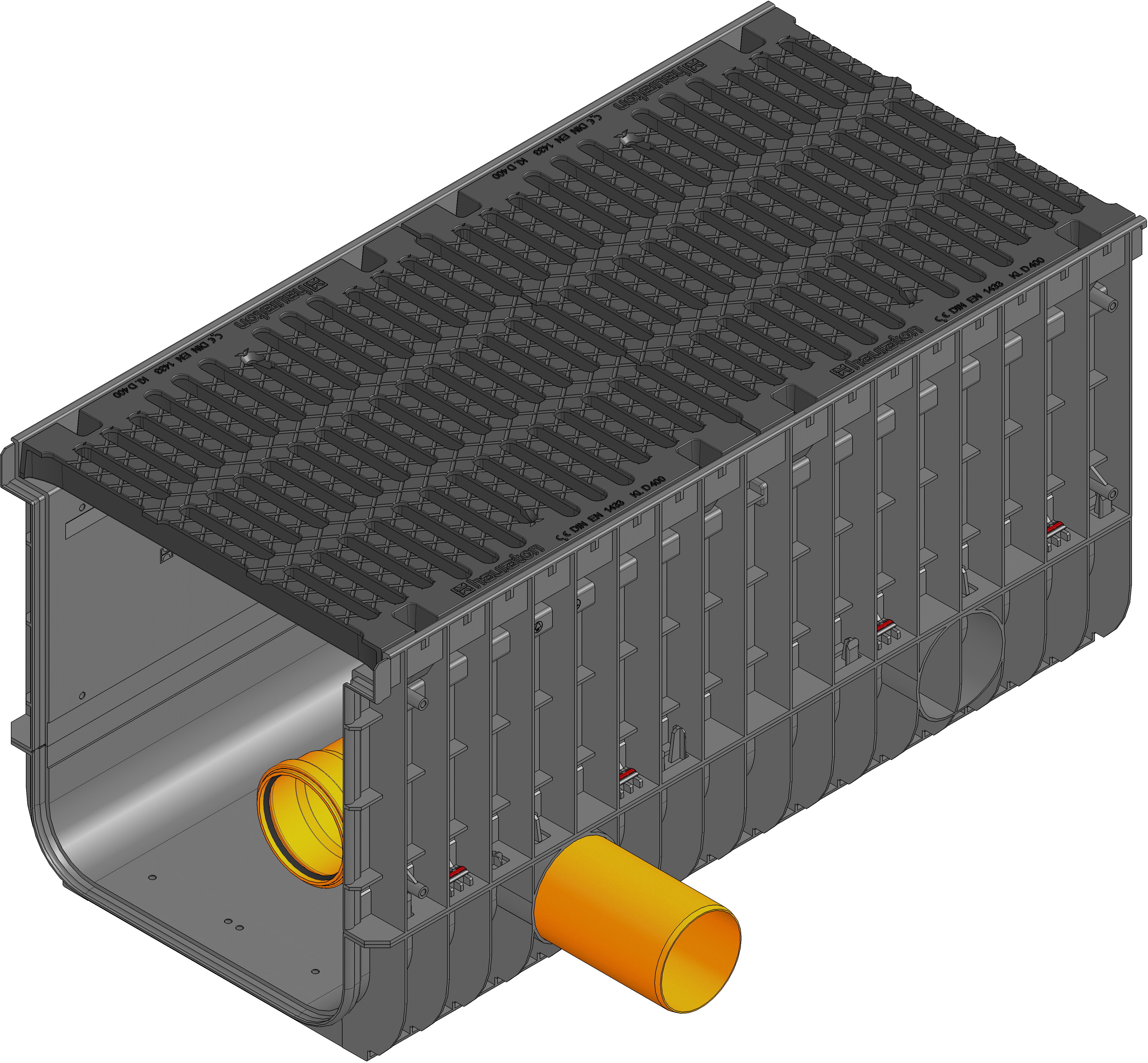

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
98039
Length
1000 mm
Width
500 mm
Height
500 mm
Weight
58.11 kg
Retention volume
88 l/m
Retention cross-section
880.0 cm²
Height filling of substratum
(effective, from the middle of the filter grid tube to the top edge of the substrate)
150.0 mm
Substrate requirement
80.0 l/lfdm.
Nominal size
400
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN RNC 400 BASIC type 010 - Ending element, with lateral connection possibility with integrated PVC-U pipe outlet DN/OD 110, filter substrate channel with the operating principle of surface filtration, with integrated edge frame, with ductile
Product description
DRAINFIX CLEAN RNC 400 BASIC type 010 - Ending element, with lateral connection possibility, with integrated PVC-U pipe outlet DN/OD 110, filter substrate channel with the operating principle of surface filtration, made of recycled polypropylene, nominal width 400 mm, CE compliant, tested according to the requirements of the German technical authority (DIBt), with integrated edge frames, incl. DRAINFIX CLEAN-Drainage pipe DN/OD 100, wrapped with geotextile, tied at the end, with ductile iron cover 3x SW 118 (133)/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - D 400 according to EN 1433, with longitudinal slide protection and locking, LxWxH 1000x500x500 mm, item no. 98039
Packaging unit
-
Tender Texts
Installation example
Concrete class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
