Article No. 98004
DRAINFIX CLEAN RPR 300 BASIC filter substrate channel with ductile iron cover slot width 2x 141/9 mm for class C 250 with drainage pipe with geotextile and connection element
Type 010, starting element, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

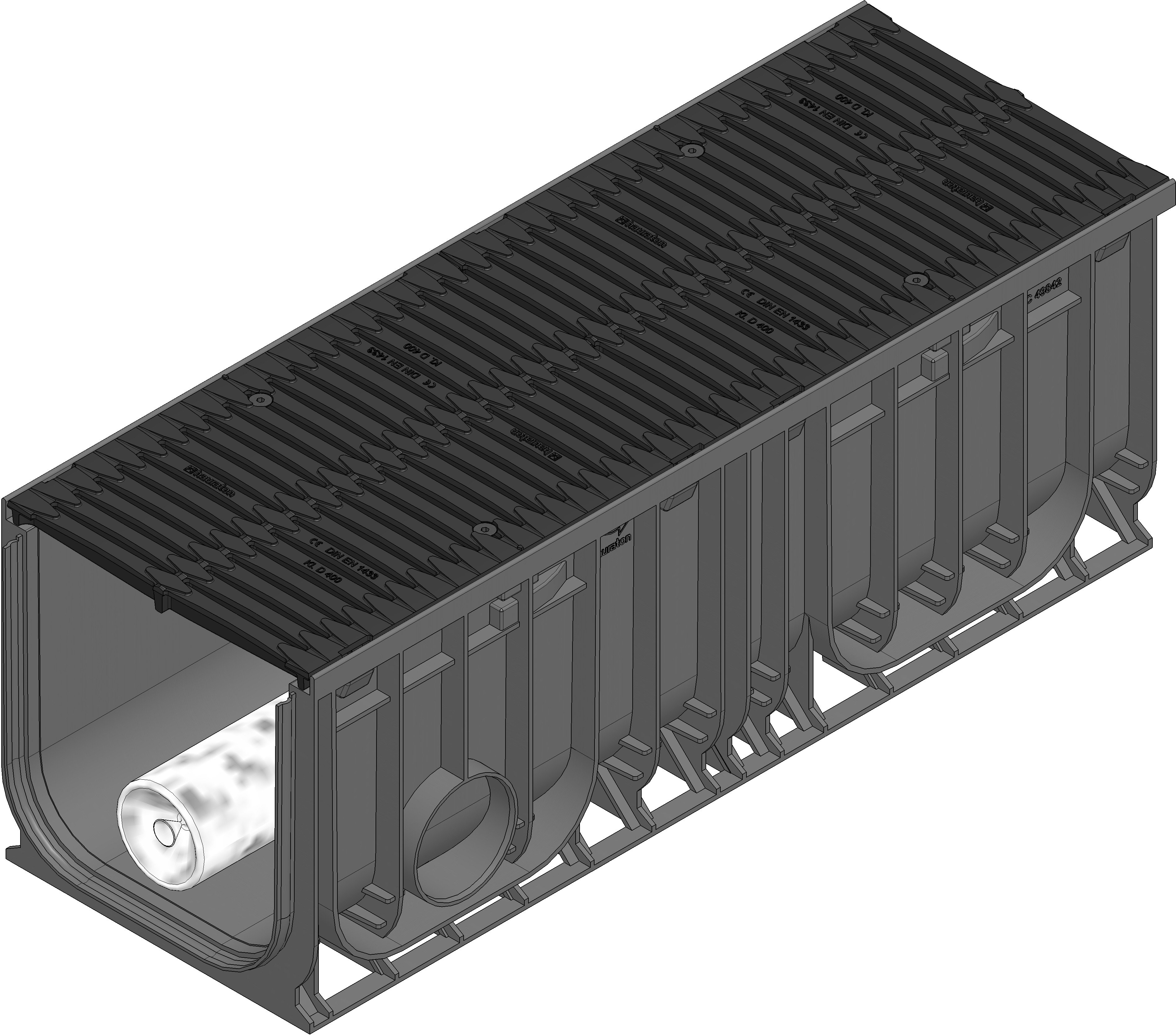

Product image

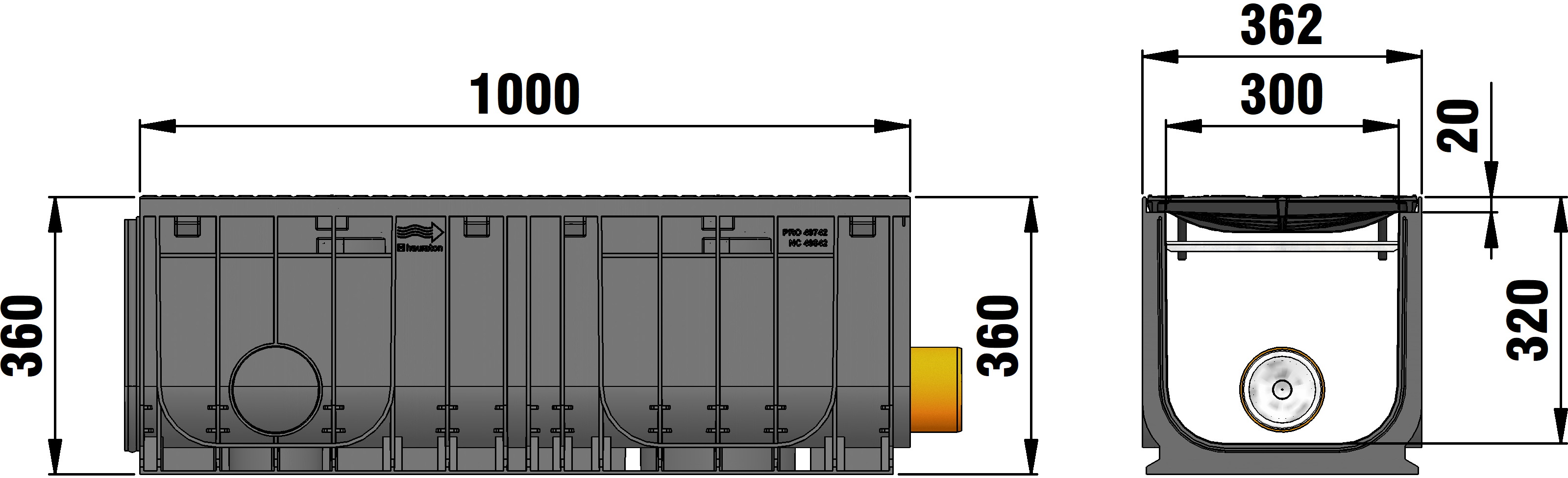

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
98004
Length
1000 mm
Width
362 mm
Height
360 mm
Weight
39.44 kg
Retention volume
28 l/m
Retention cross-section
280.0 cm²
Height filling of substratum
(effective, from the middle of the filter grid tube to the top edge of the substrate)
150.0 mm
Substrate requirement
53.0 l/lfdm.
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN RPR 300 BASIC type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, with integrated edge frame, with ductile iron cover 2x SW 141/9 mm, KTL-coated, cl. C 250, locked, with drainage pipe
Product description
DRAINFIX CLEAN RPR 300 BASIC type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, made of recycled polypropylene, nominal width 300 mm, CE compliant, tested according to the requirements of the German technical authority (DIBt), with integrated edge frame incl. DRAINFIX CLEAN-Drainage pipe DN/OD 100 wrapped with geotextile and connector, tied at the end, with ductile iron cover made of spheroidal ductile iron EN-GJS-500-7, 2x SW 141/9 mm, KTL-coated, load class A 15 - C 250 according to EN 1433, longitudinal slide protection and locking, LxWxH 1000x362x360 mm, item no. 98004
Packaging unit
-
Tender Texts
Installation example

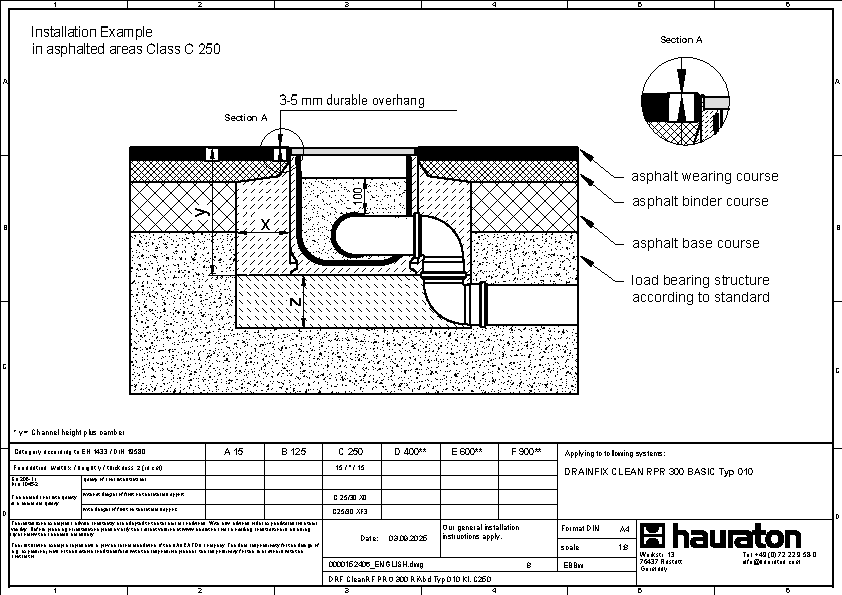

Asphalt class C 250,

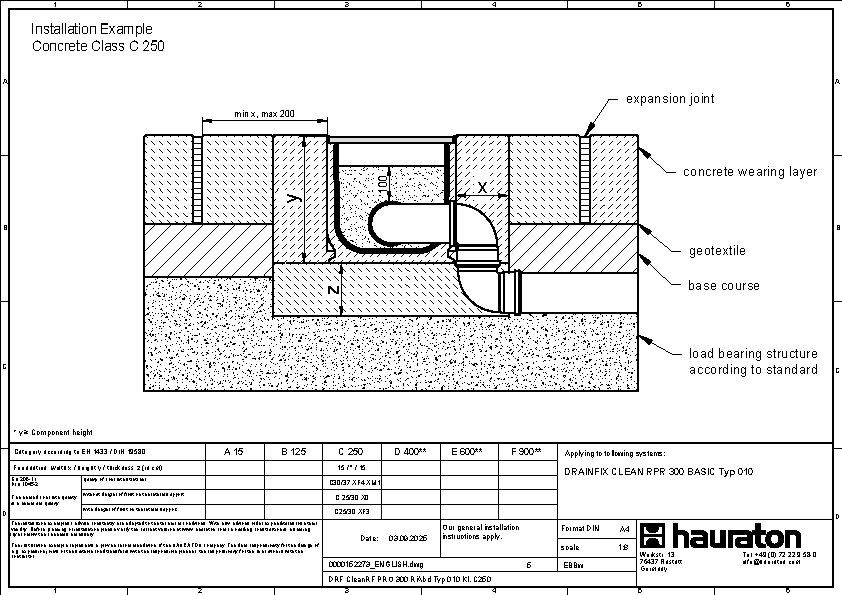

Concrete class C 250,

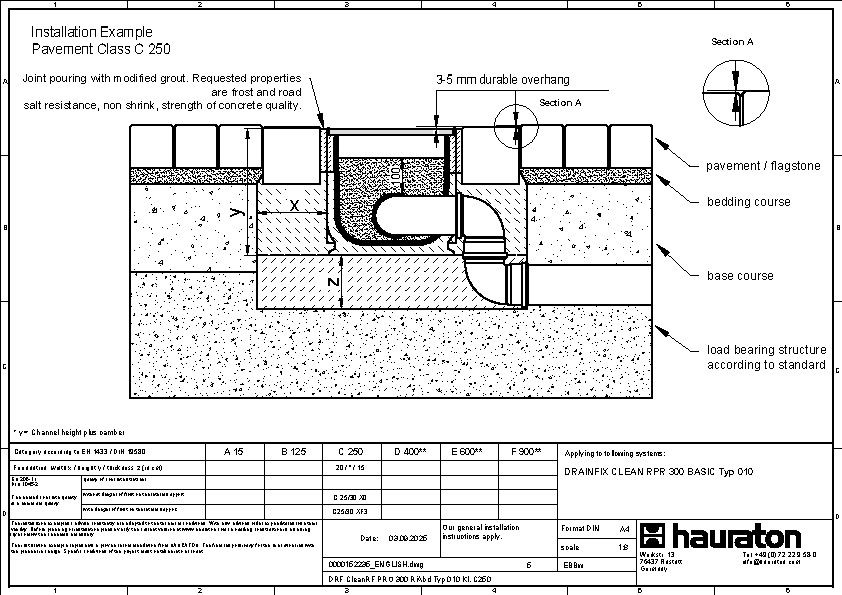

Pavement class C 250,
Installation instructions
