Article No. 98001
DRAINFIX CLEAN RST 300 BASIC filter substrate channel with ductile iron cover slot width 2x 127/18 mm for class B 125 with drainage pipe with geotextile and connection element
Type 010, middle element, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

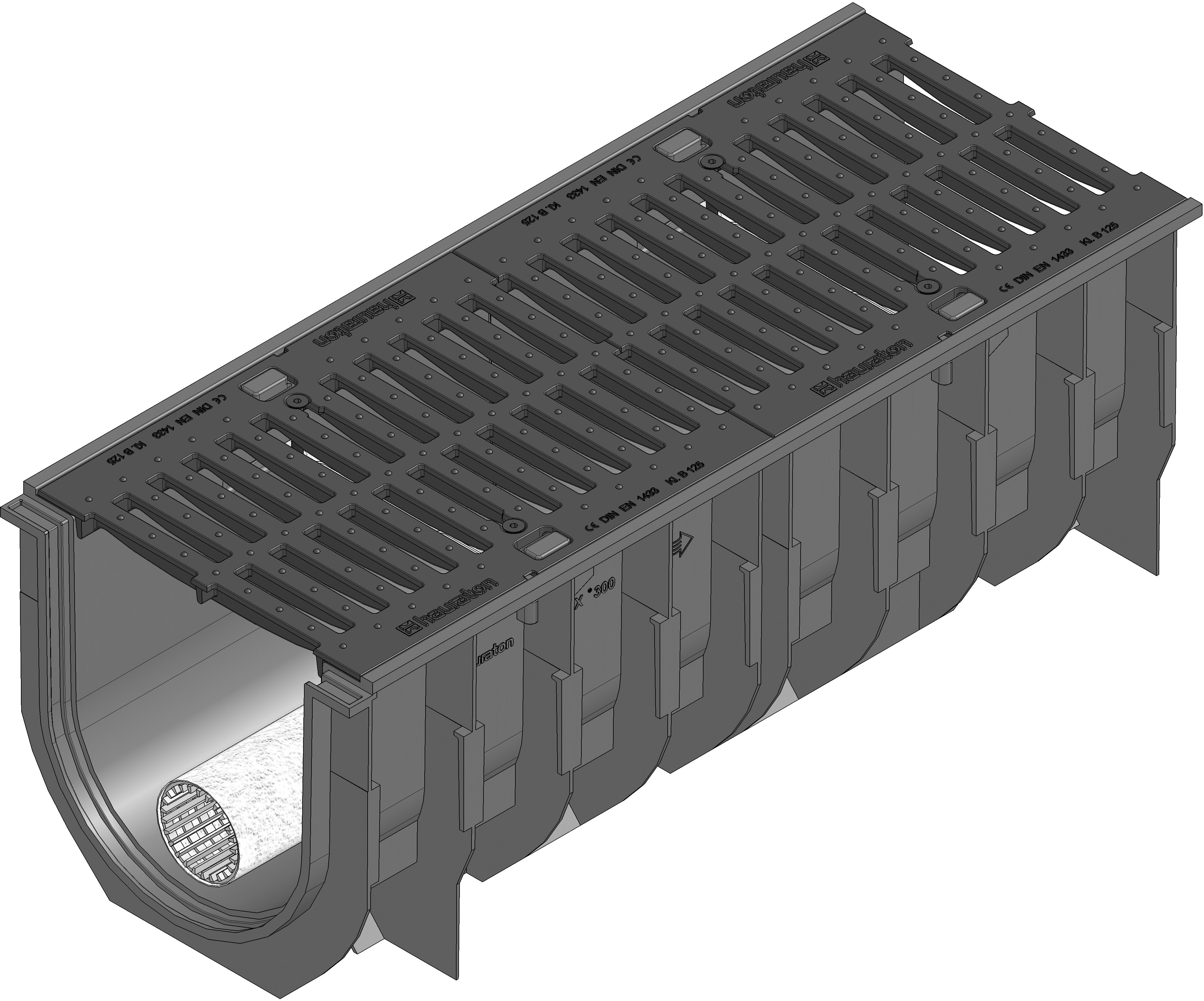

Product image
Technical drawing

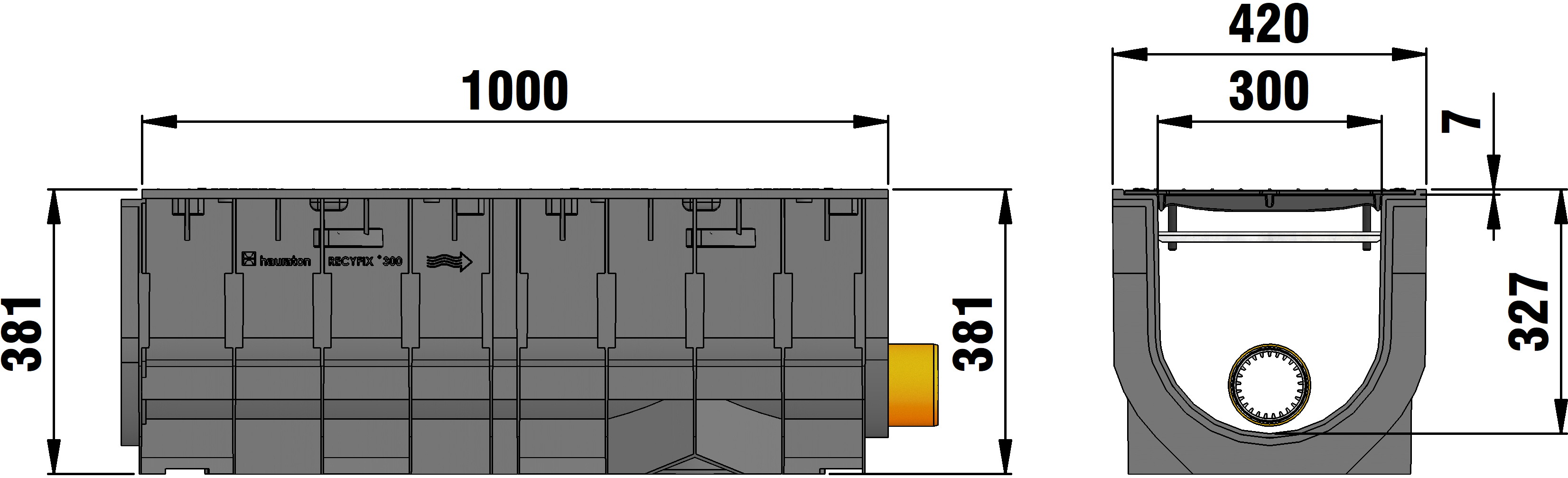

Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
98001
Length
1000 mm
Width
420 mm
Height
381 mm
Weight
29.87 kg
Retention volume
31.5 l/m
Retention cross-section
315.0 cm²
Height filling of substratum
(effective, from the middle of the filter grid tube to the top edge of the substrate)
200.0 mm
Substrate requirement
45.0 l/lfdm.
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN RST 300 BASIC type 010 - Middle element, filter substrate channel with the operating principle of surface filtration, with ductile iron cover 2x SW 127/18 mm, black, cl. B 125, locked, with drainage pipe DN/OD 100 with geotextile and con
Product description
DRAINFIX CLEAN RST 300 BASIC type 010 - Middle element, filter substrate channel with the operating principle of surface filtration, made of recycled polypropylene, nominal width 300 mm, CE compliant, tested according to the requirements of the German technical authority (DIBt), incl. DRAINFIX CLEAN-drainage pipe DN/OD 100 wrapped with geotextile and connector, with ductile iron cover made of spheroidal ductile iron EN-GJS-500-7, 2x SW 127/18 mm, black, load class A 15 - B 125 according to EN 1433, longitudinal slide protection and locking, LxWxH 1000x420x381 mm, item no. 98001
