Article No. 10929
End caps
for NW 100, for type 11 - 020, with KG2000-PVC-U pipe outlet DN/OD 110, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

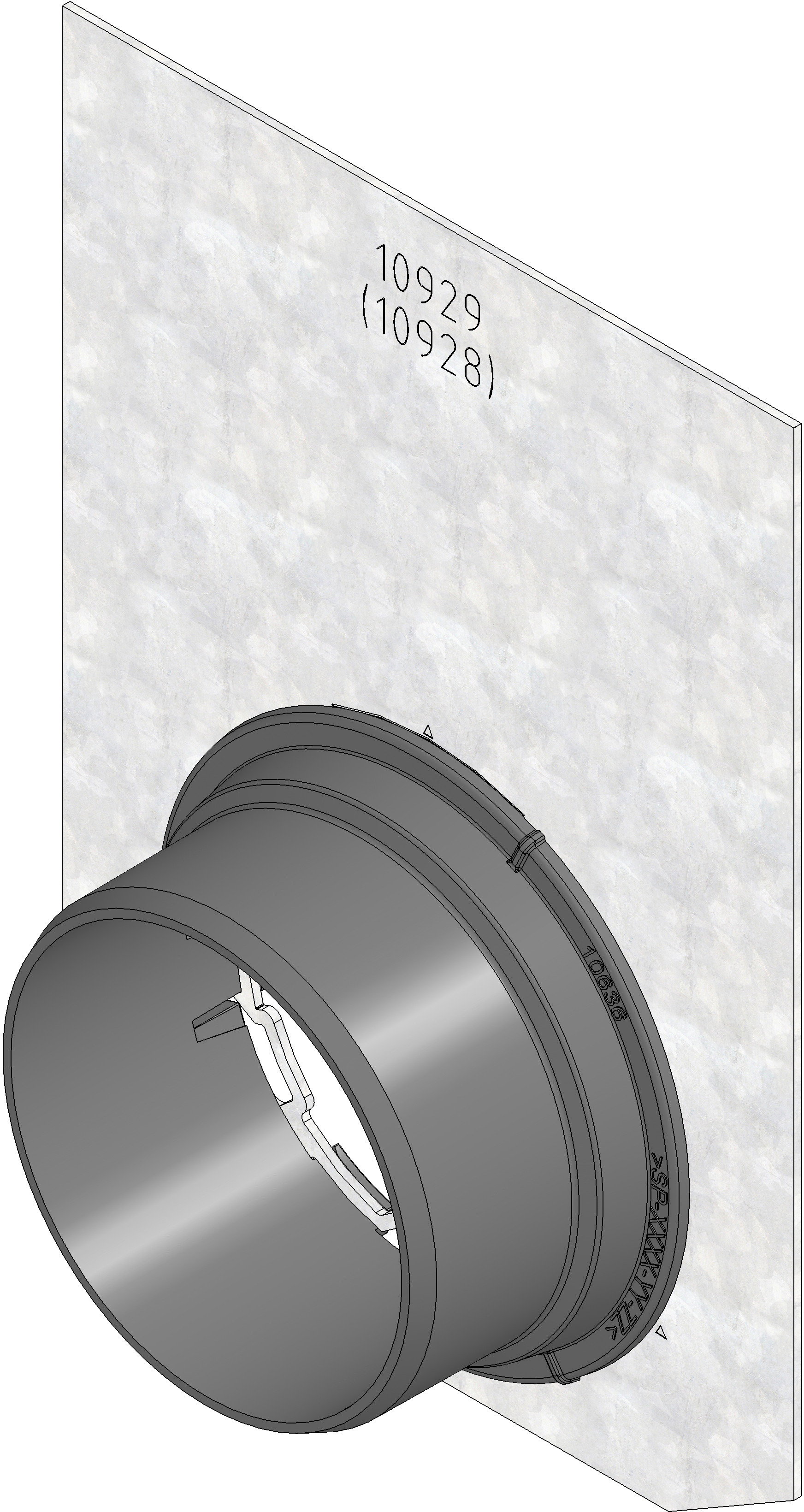

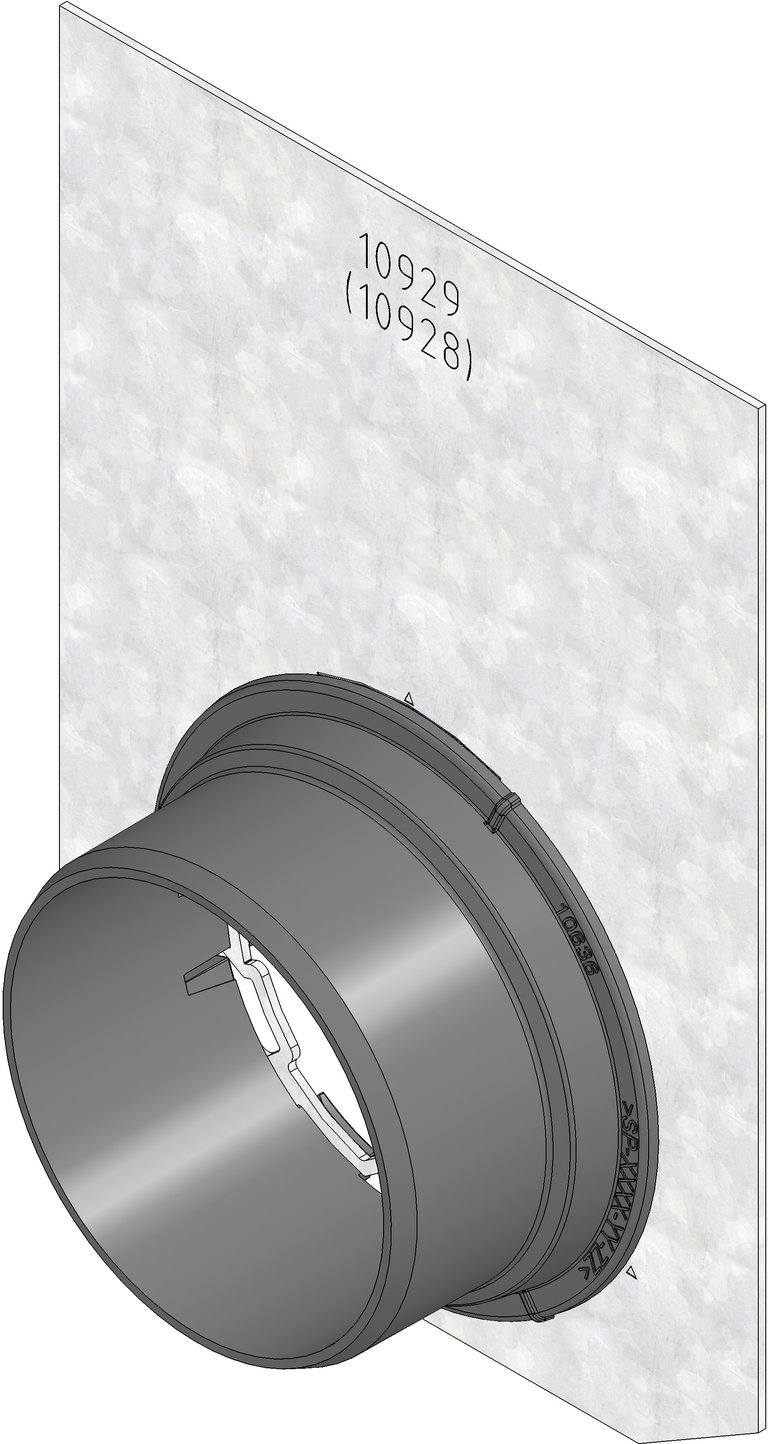

Product image

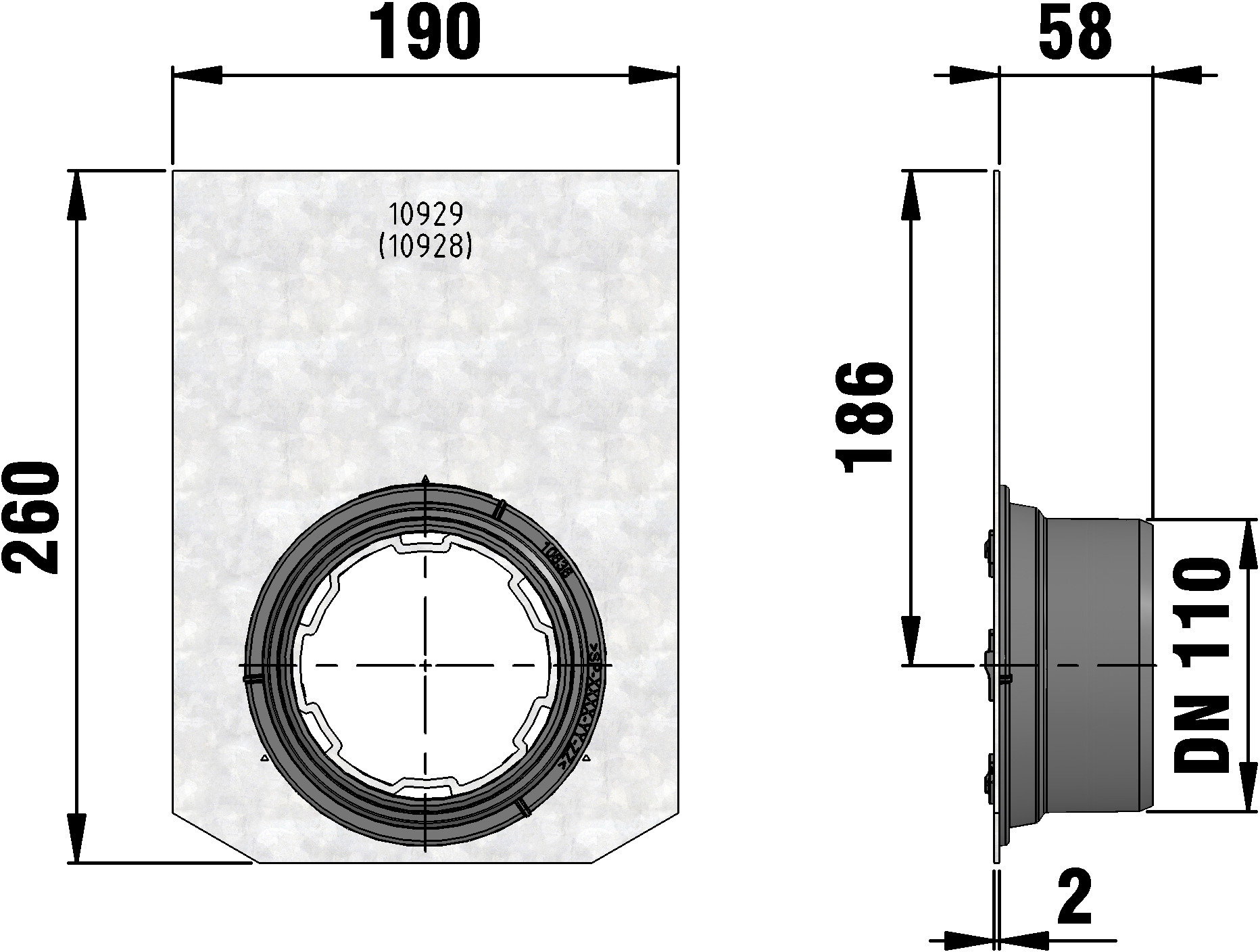

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10929
Width
190 mm
Height
260 mm
Weight
0.71 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Nominal size
100
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 110, galvanised, FASERFIX SUPER 100 type 11 - 020
Product description
FASERFIX SUPER 100 type 11 - 020 - End cap for end of channel run, galvanised, with KG2000-PVC-U pipe outlet DN/OD 110, item no. 10929
Packaging unit
-
