Article No. 10338
End caps
for NW 100, for Type 230 / 280 / 380, with integrated pipe outlet DN/OD 110, made of PP
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

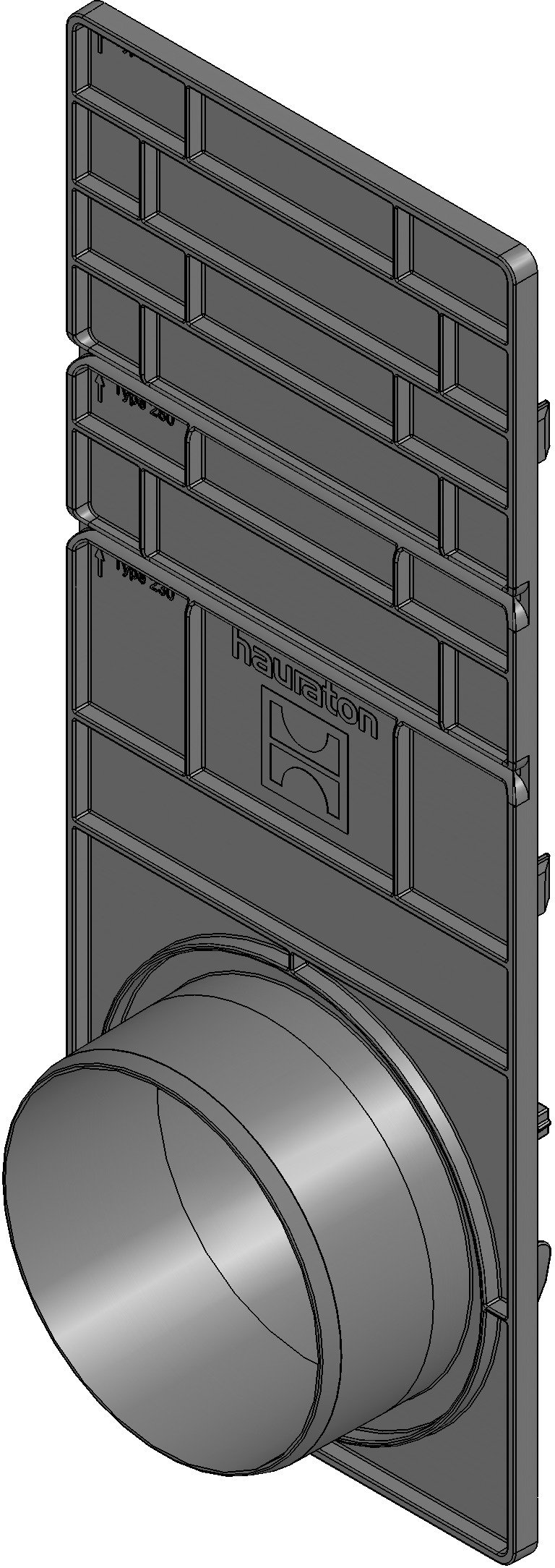

Product image

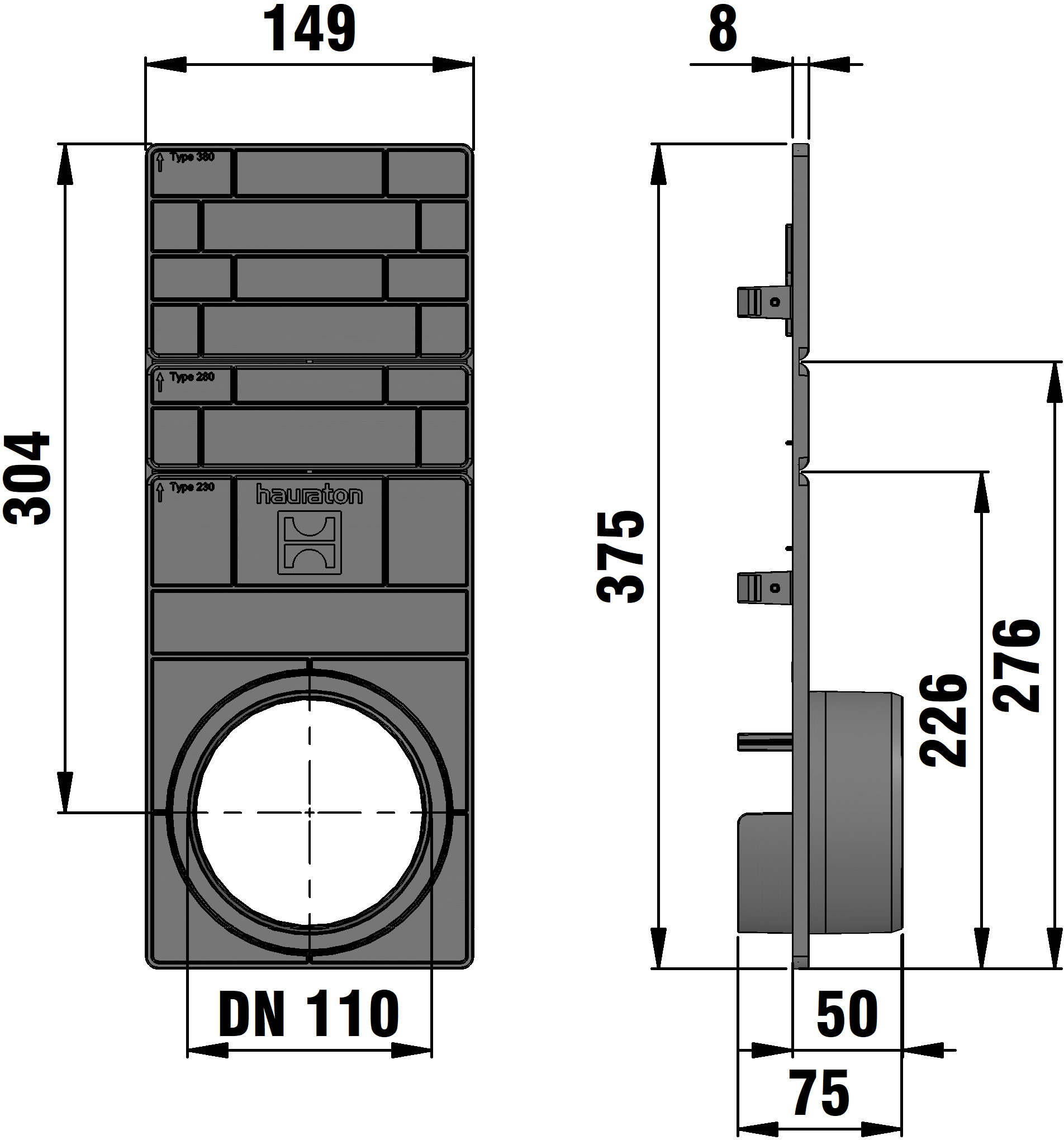

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10338
Width
149 mm
Height
375 mm
Weight
0.20 kg
Material
recycled, modified Polypropylene
Nominal size
100
Sales text
End cap with integrated pipe outlet DN/OD 110, made of PP, RECYFIX MONOTEC 100 type 230/280/380
Product description
RECYFIX MONOTEC 100 type 230/280/380 - End cap made of recycled polypropylene, for end of channel run, with integrated pipe outlet DN/OD 110, item no. 10338
Packaging unit
225
