Article No. 10789
End caps
for NW 150, for type 1 - 010, with KG2000-PVC-U pipe outlet DN/OD 160, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

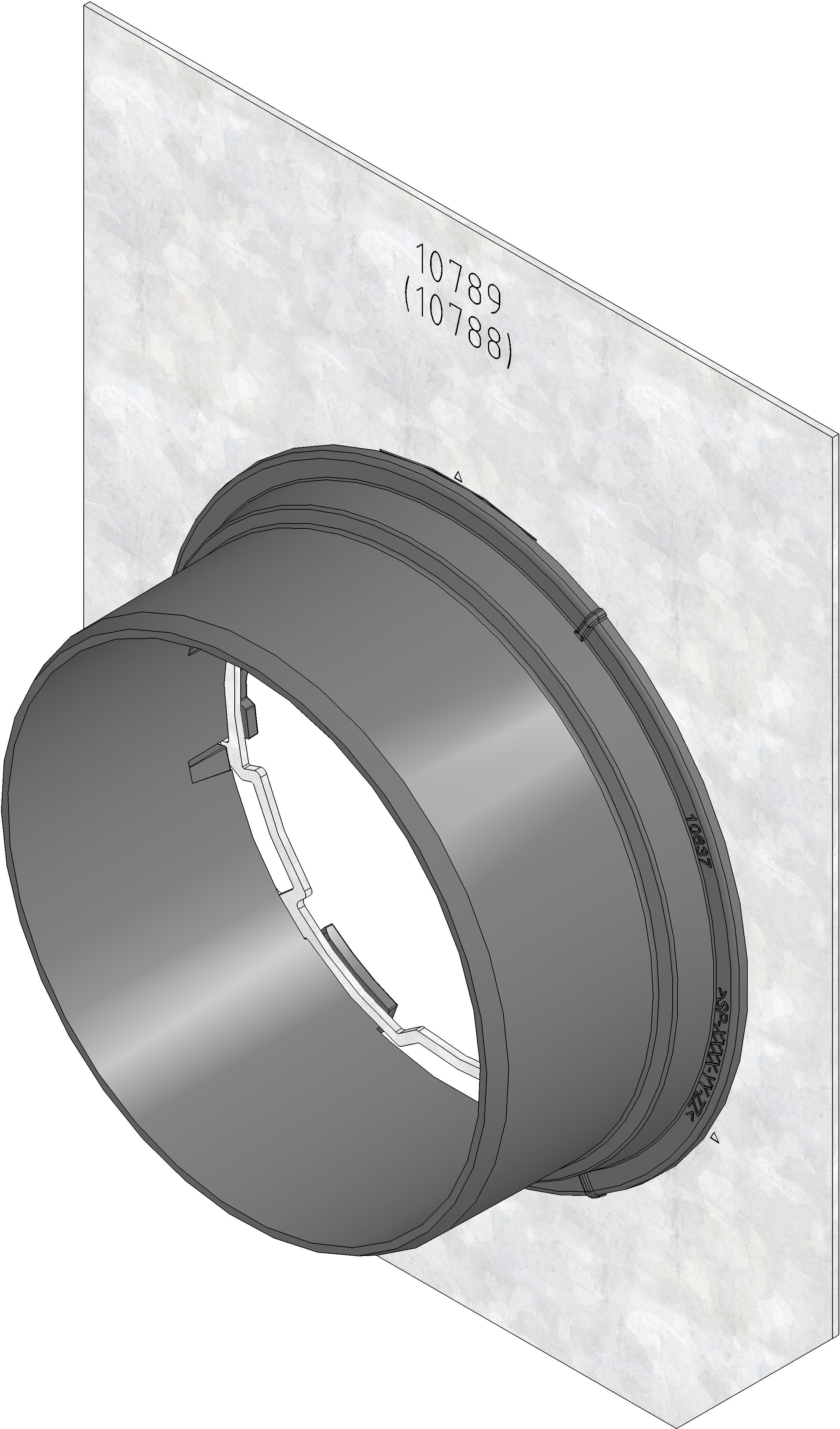

Product image
Technical drawing
Drawing (CAD)

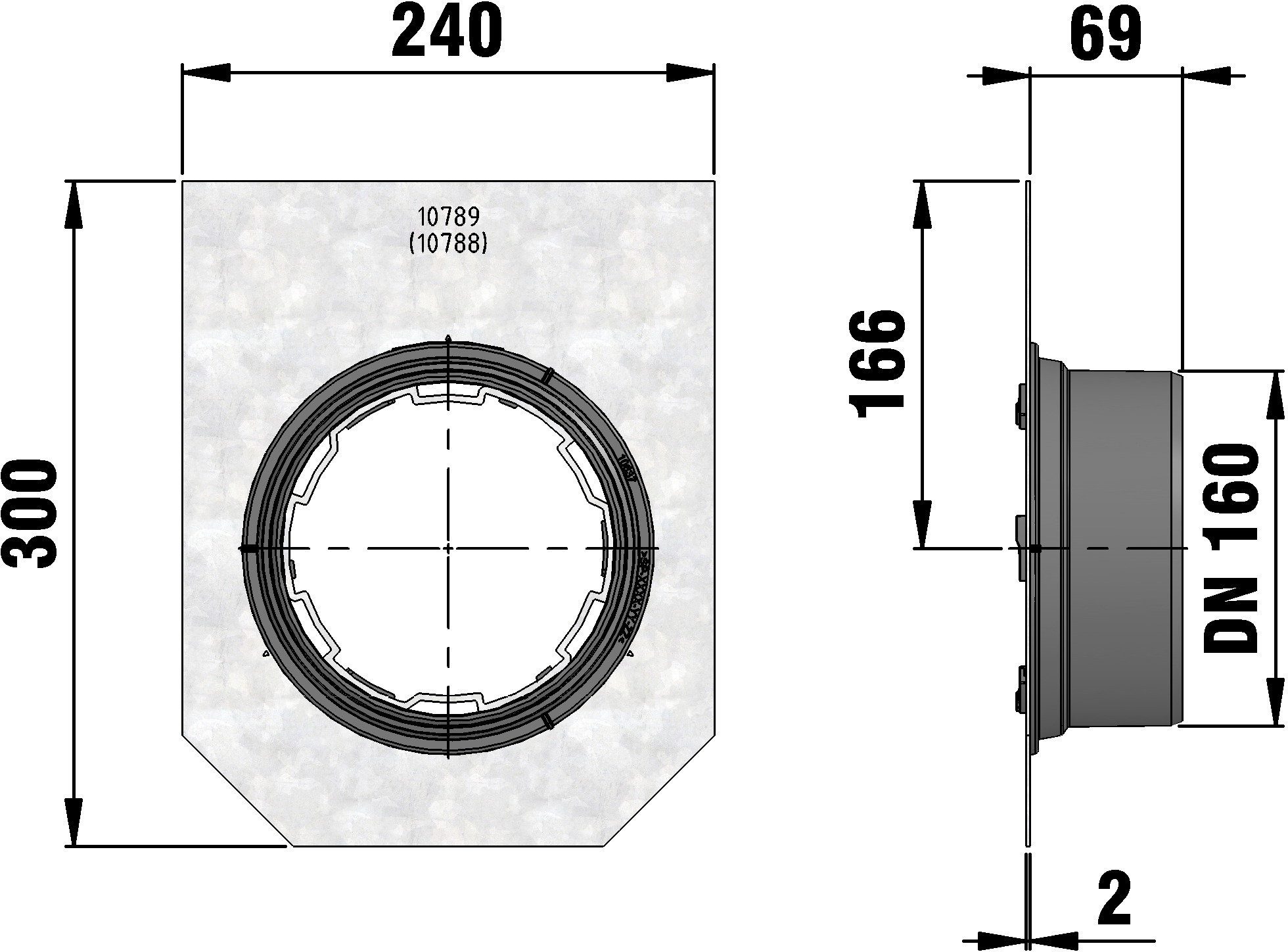

Drawing
Technical information and metrics
Article No.
10789
Width
240 mm
Height
300 mm
Weight
0.94 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Nominal size
150
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, FASERFIX SUPER 150 type 1 - 010
Product description
FASERFIX SUPER 150 type 1 - 010 - End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, item no.10789
Packaging unit
-
