Article No. 10791
End caps
for NW 150, for type 11 - 020, with KG2000-PVC-U pipe outlet DN/OD 160, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

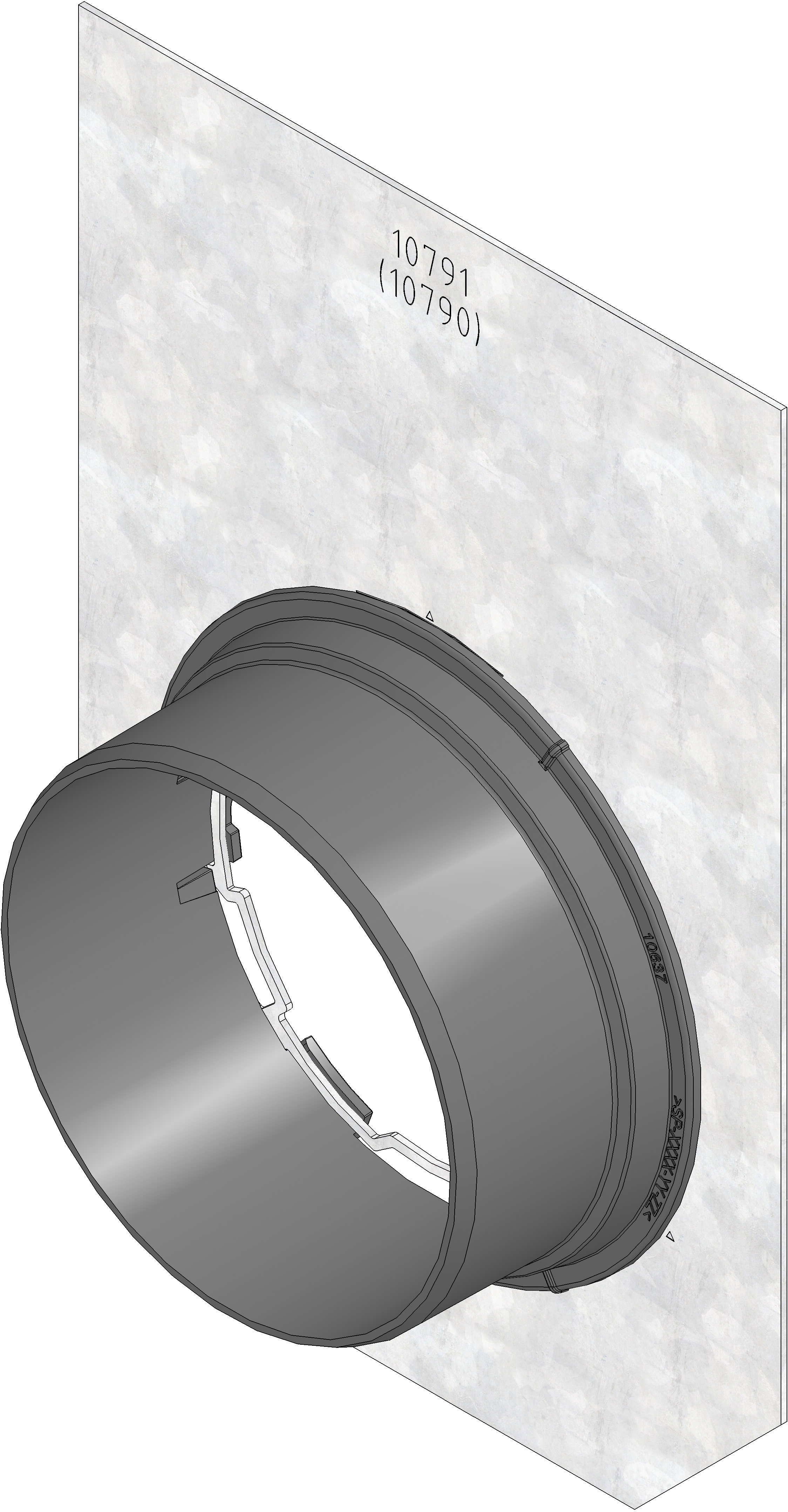

Product image

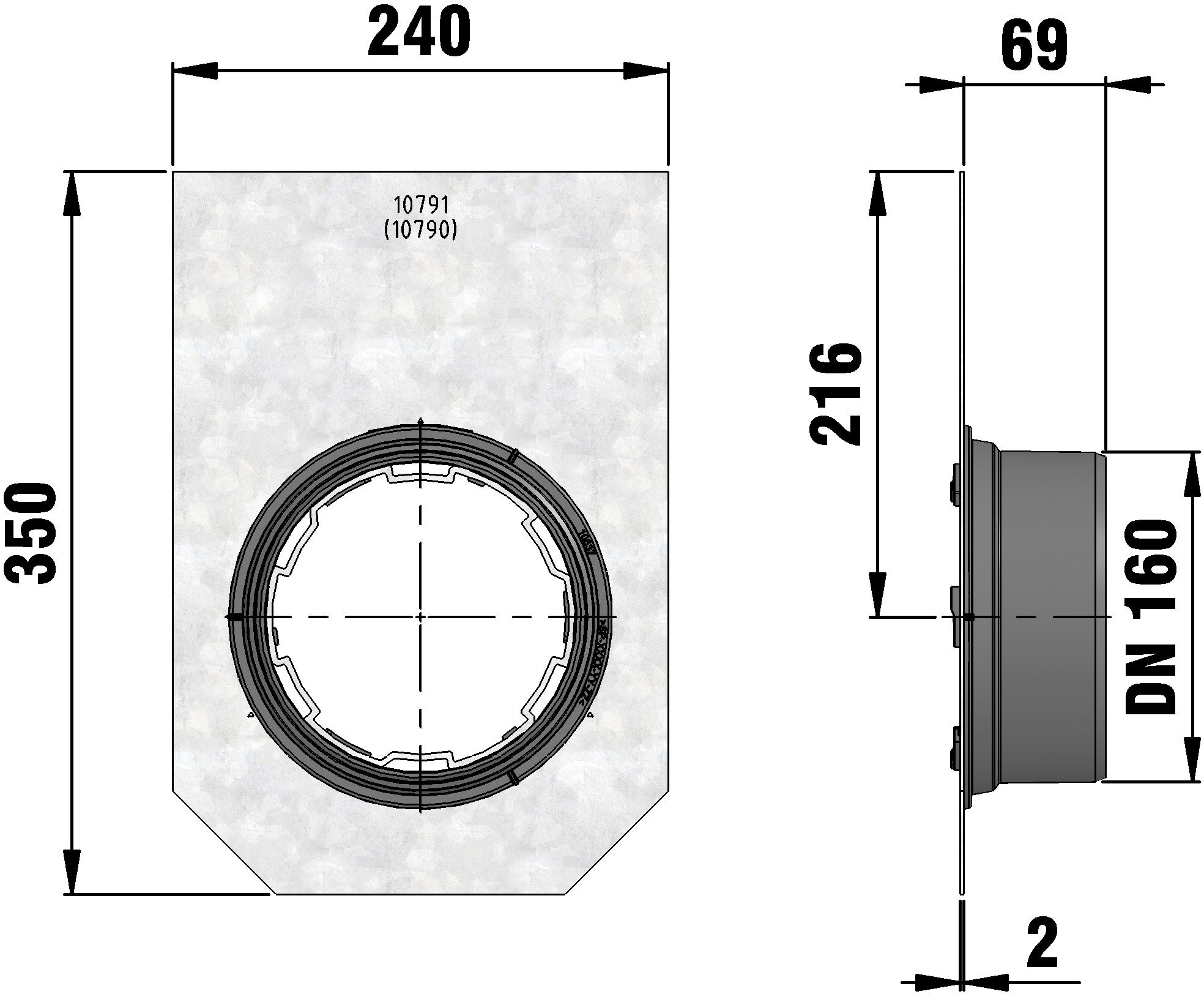

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10791
Width
240 mm
Height
350 mm
Weight
1.13 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Nominal size
150
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, FASERFIX SUPER 150 type 11 - 020
Product description
FASERFIX SUPER 150 type 11 - 020 - End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, item no. 10791
Packaging unit
-
