Article No. 12109
End caps
for NW 200, for type 010, for for end of channel run groove side, incl. screws, with KG2000-PVC-U pipe outlet DN/OD 160, galvanised
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

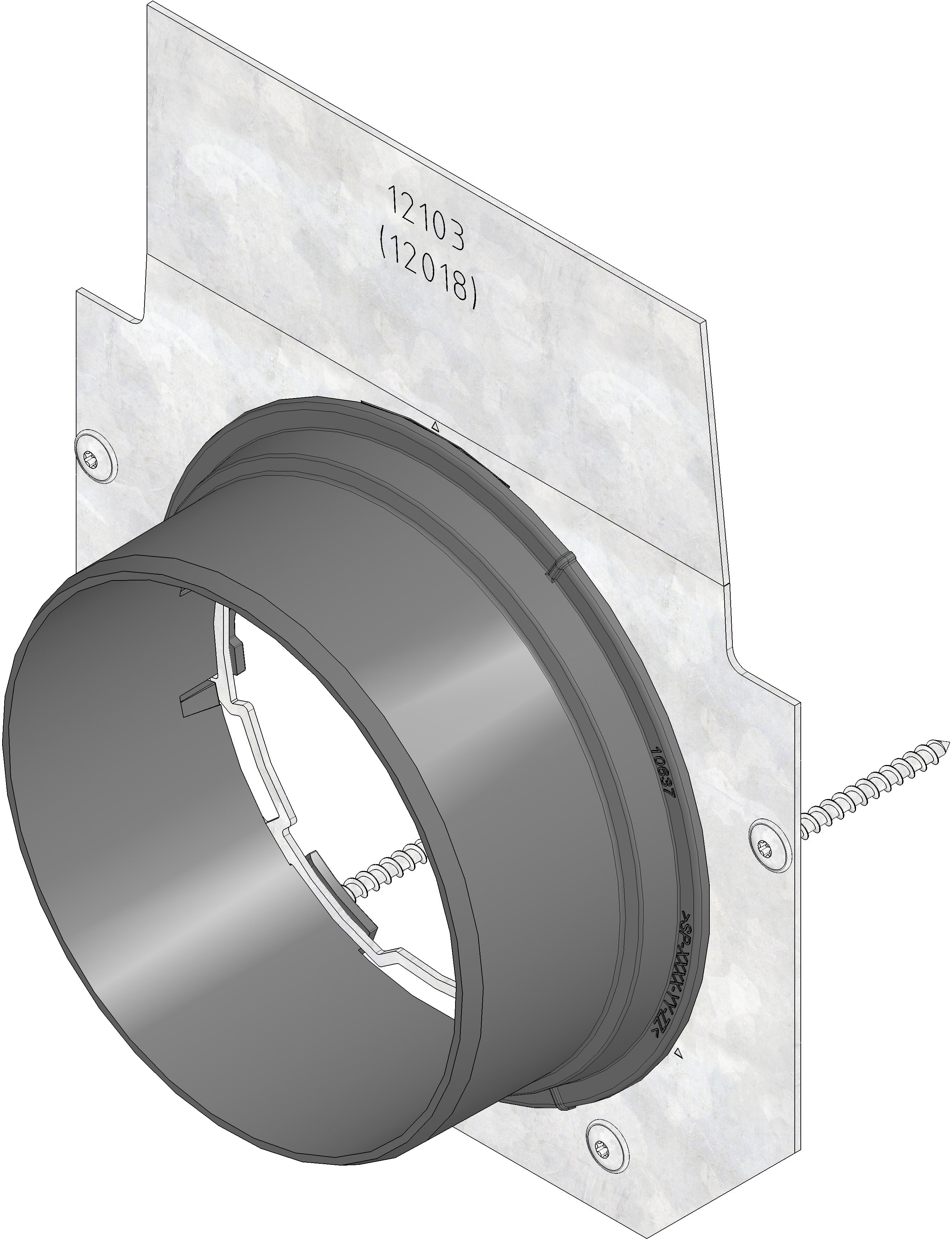

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12109
Width
243 mm
Height
281 mm
Weight
0.93 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Nominal size
200
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, incl. screws, for end of channel run groove side, RECYFIX MONOTEC ULTRA 200 type 010
Product description
RECYFIX MONOTEC ULTRA 200 type 010 - End cap for end of channel run groove side, galvanised, with KG2000-PVC-U pipe outlet DN/OD 160 , incl. screws, item no. 12109
Packaging unit
-
Declaration of Performance
