Article No. 10901
End caps
for NW 400, for type 01H, with KG2000-PVC-U pipe outlet DN/OD 200, galvanised
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

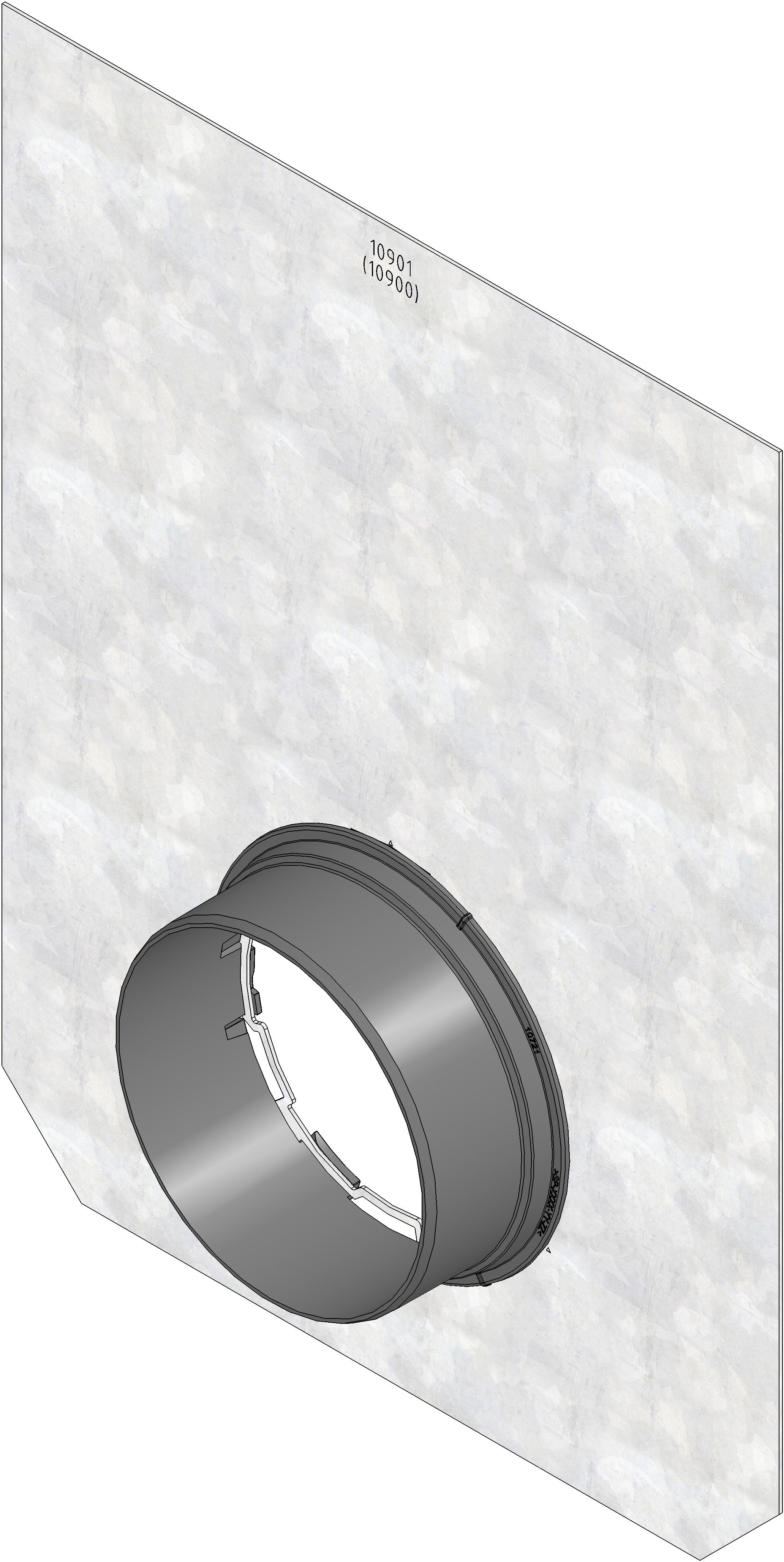

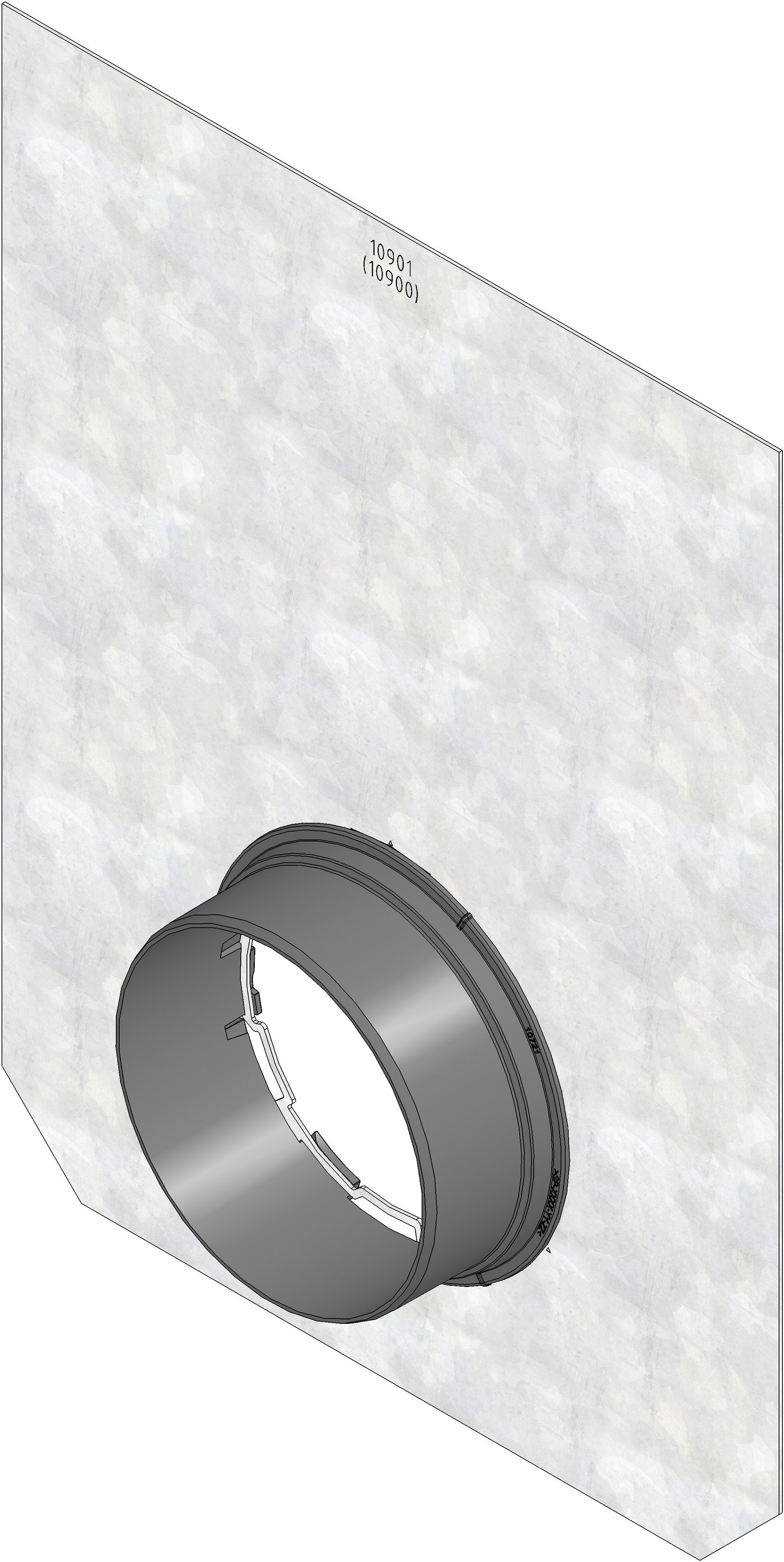

Product image

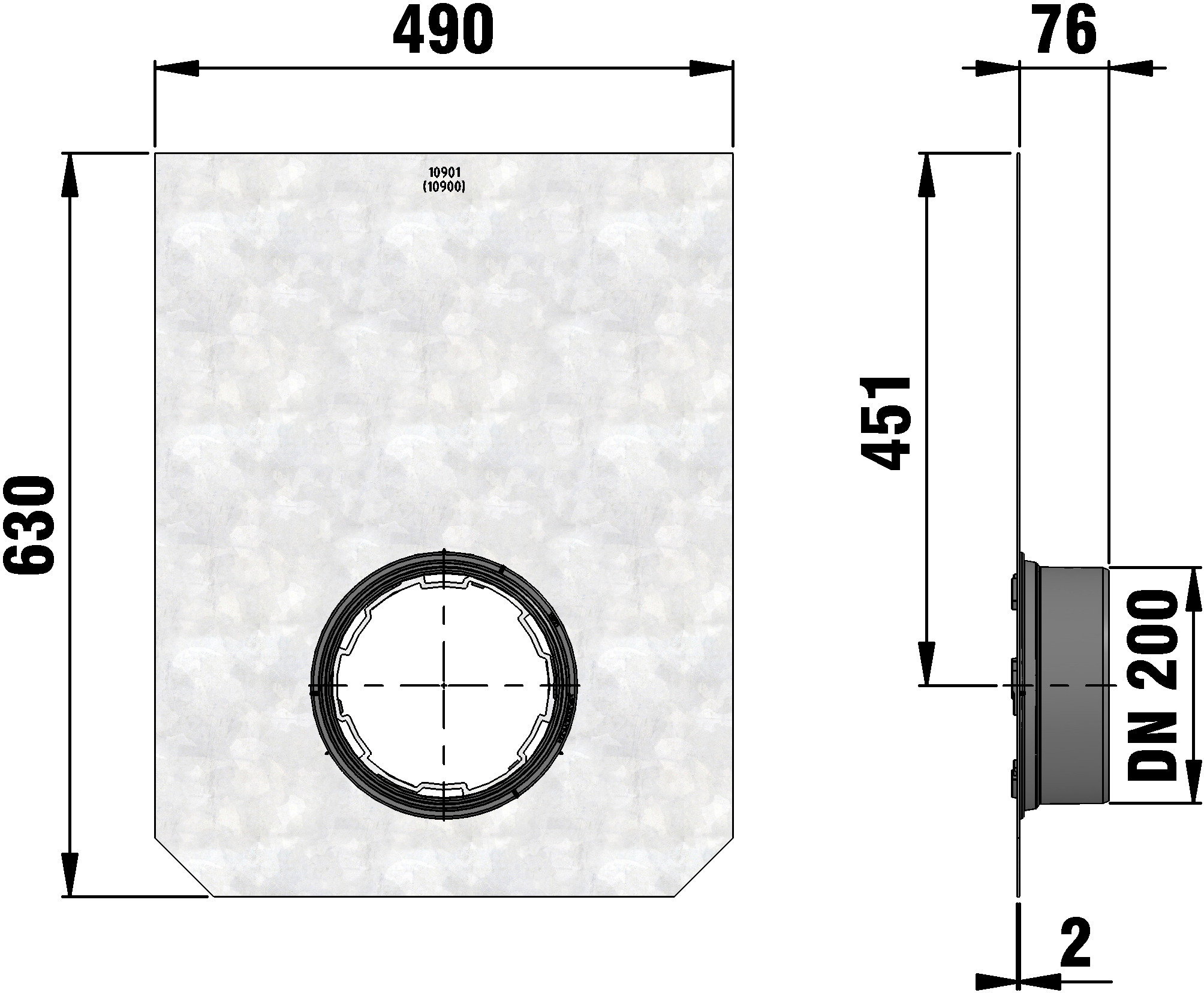

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10901
Width
490 mm
Height
630 mm
Weight
4.56 kg
Material
recycled, modified Polypropylene, strip galvanized steel
Nominal size
400
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 200, galvanised, FASERFIX SUPER 400 type 01H
Product description
FASERFIX SUPER 400 type 01H - End cap for end of channel run, galvanised, with KG2000-PVC-U pipe outlet DN/OD 200, item no. 10901
Packaging unit
-
