Article No. 26447

FASERFIX SUPER 100 with ductile iron angle housings, up to load class F 900

Type 020L, with opening DN/OD 110, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

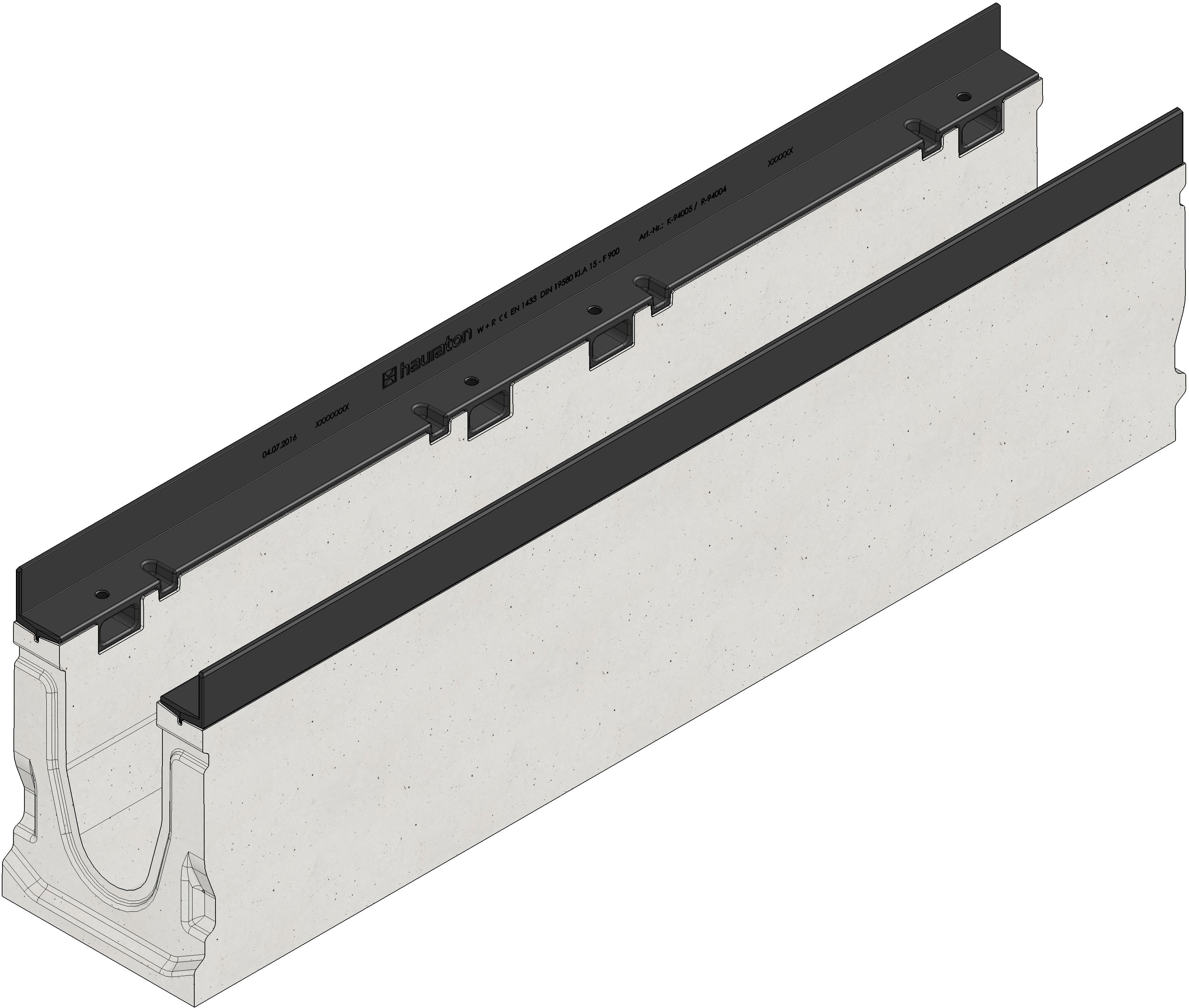

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
26447
Length
1000 mm
Width
190 mm
Height
285 mm
Weight
70.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
175 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 100 Channel body type 020L with outlet DN/OD 110, with edge frames made of KTL-coated ductile iron, 1 m
Product description
FASERFIX SUPER 100 type 020L - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, with vertical connection possibility DN/OD 110 at the end of the channel in channel base, CE compliant, with edge frame made of KTL-coated ductile iron, with sealing groove, cover inlay depth 40 mm, 8-fold bolting per 0.5 m piece, LxWxH 1000x190x285 mm, item no. 26447
