Article No. 23437

FASERFIX SUPER 200 with ductile iron angle housings, up to load class F 900

Type 020L, with opening DN/OD 200, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

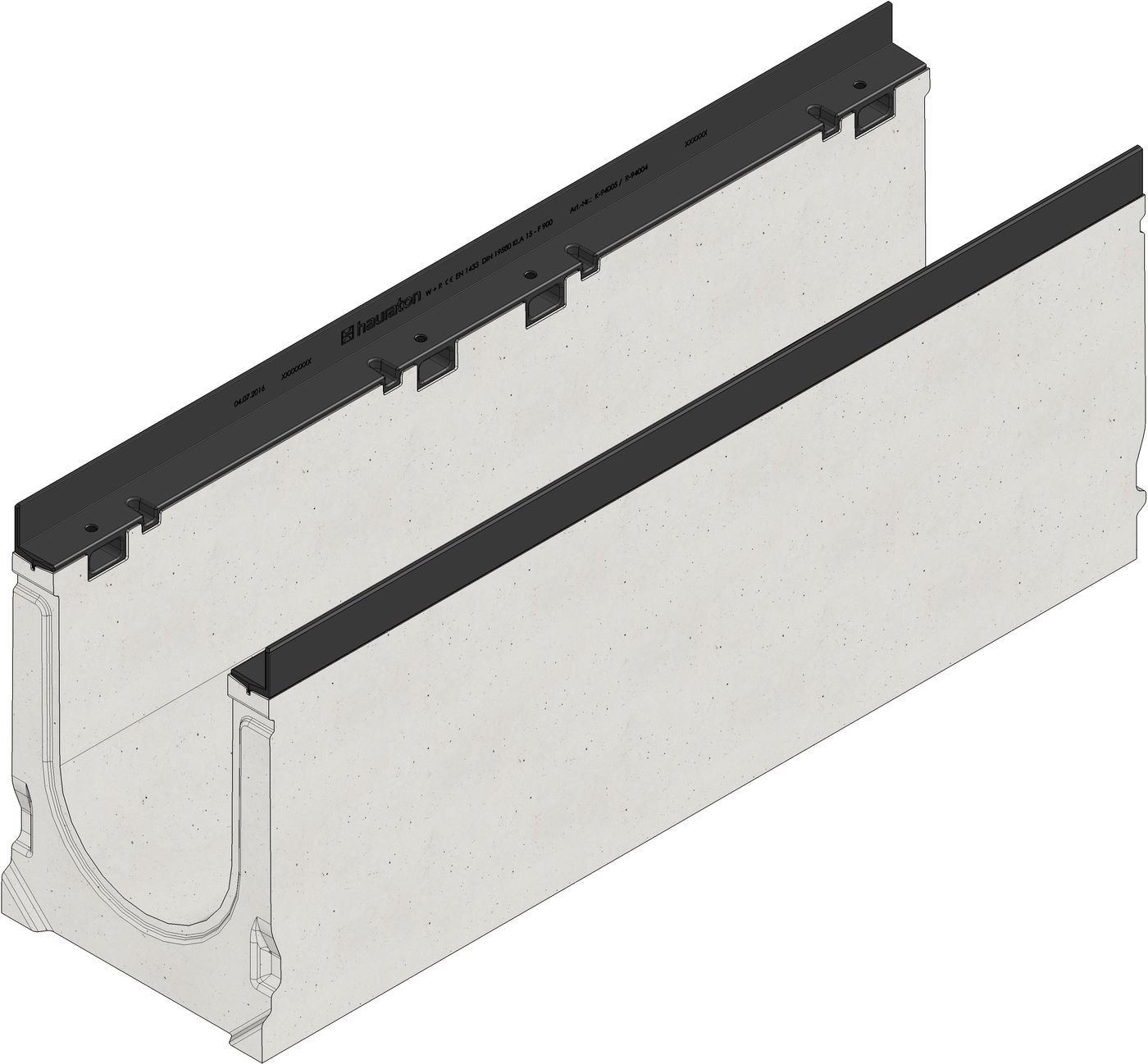

Product image

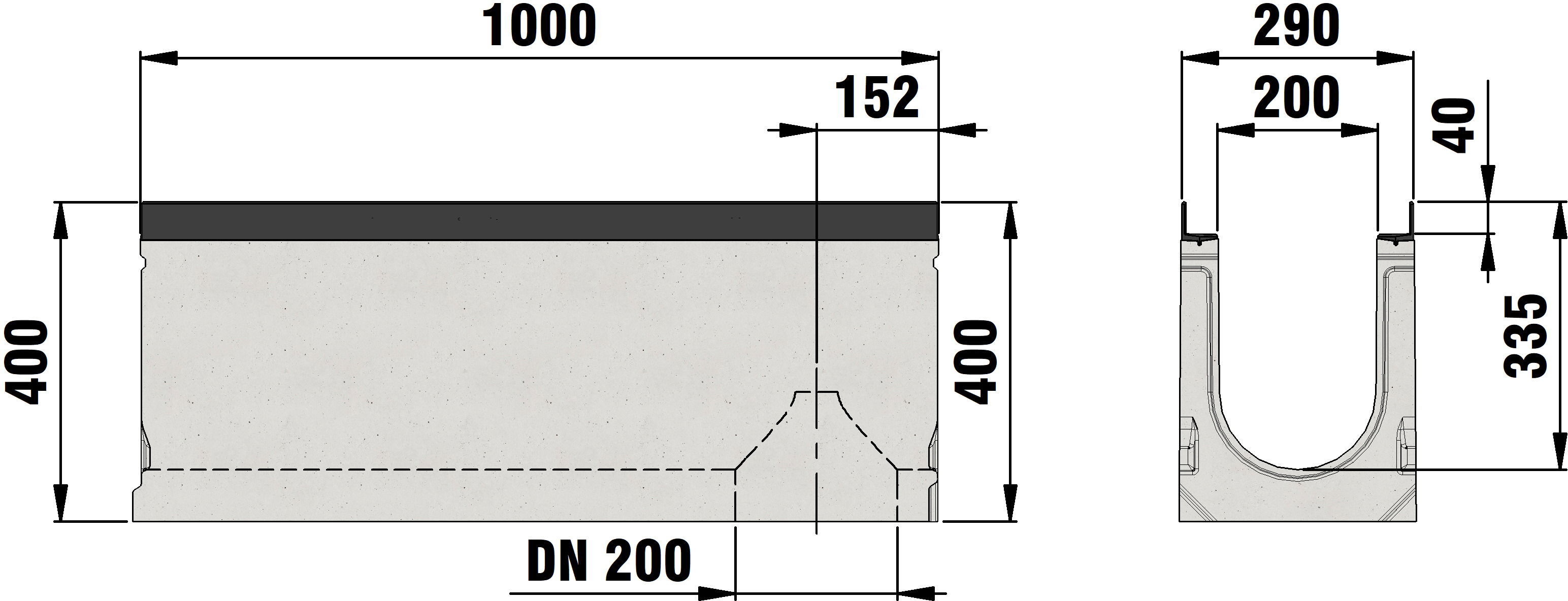

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
23437
Length
1000 mm
Width
290 mm
Height
400 mm
Weight
125.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
540 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 200 Channel body type 020L with outlet DN/OD 200, with edge frames made of KTL-coated ductile iron, 1 m
Product description
FASERFIX SUPER 200 type 020L - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with outlet DN/OD 200 at the end of the channel in channel base, with edge frame made of KTL-coated ductile iron, with sealing groove, cover inlay depth 40 mm, 8-fold bolting per meter, LxWxH 1000x290x400 mm, item no. 23437
Packaging unit
8
