Article No. 24204

FASERFIX SUPER 300 with galvanised angle housings, with gradient 0.5%, up to loading class F 900

Type 4, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

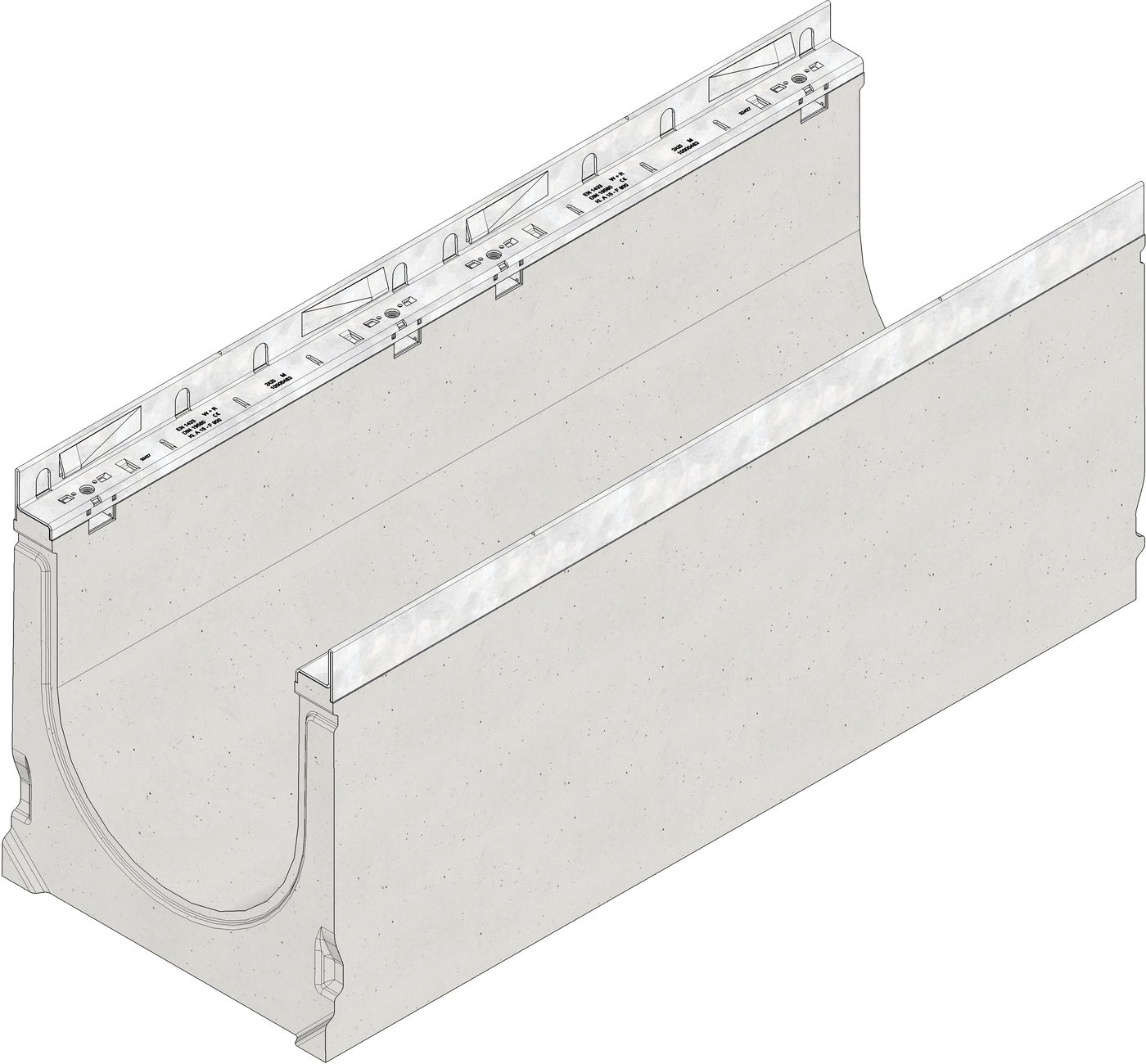

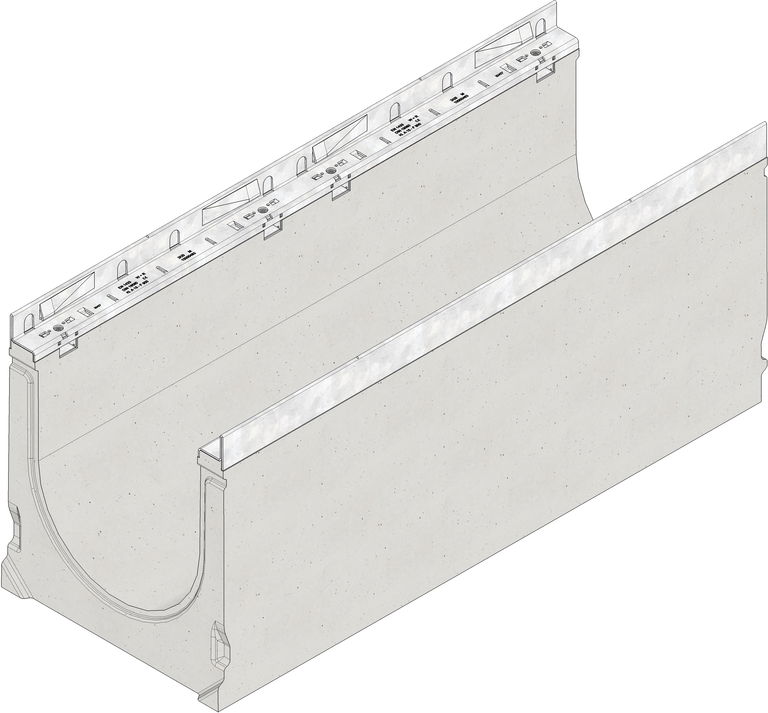

Product image

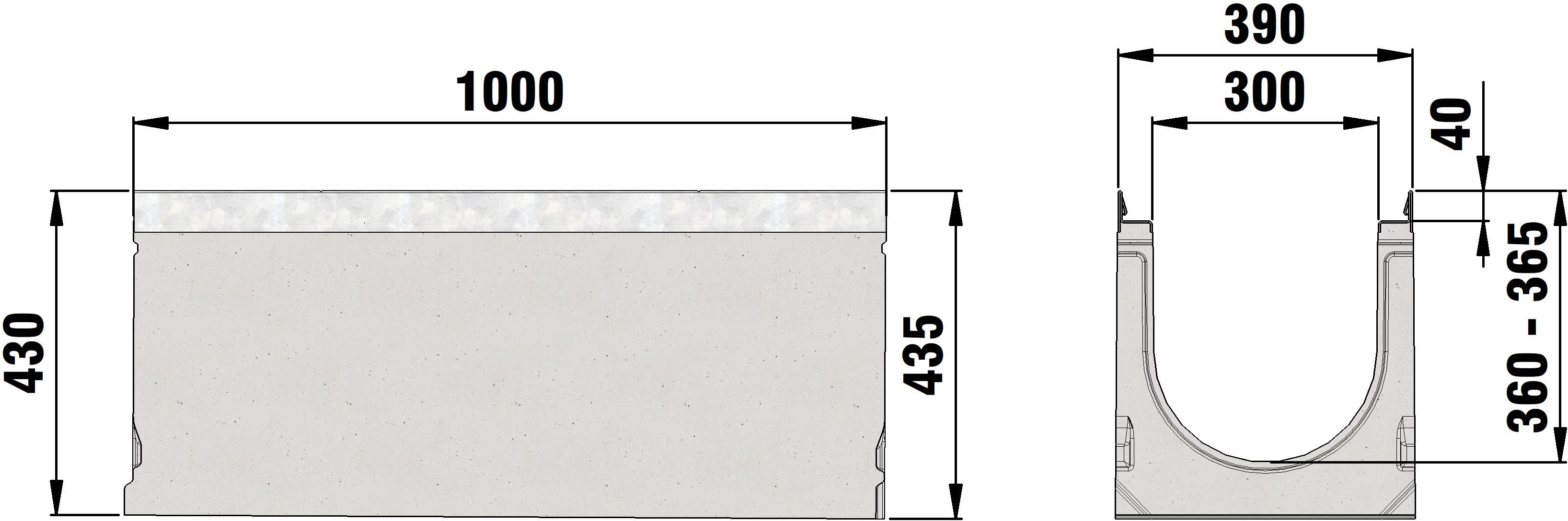

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
24204
Length
1000 mm
Width
390 mm
Height
430 - 435 mm
Weight
154.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
856 cm²
Fall
0.5 %
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 Channel body type 4 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 300 type 1 - 19 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, sloping depth channel 0.5 %, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 8-fold bolting additionally possible, 8-fold locking, with sealing groove, cover inlay depth 40 mm, LxWxH 1000x390x415-510 mm, item no. 24201 - 24219
Packaging unit
6

Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Asphalt class D 400,

Installation example

Asphalt class D 400, in ramps

Installation example

Asphalt class D 400, with curb

Installation example

Concrete class D 400, with curb

Installation example

Asphalt class D 400 - E 600,

Installation example

Concrete class D 400 - F 900,

Installation example

Pavement class D 400,

Installation example

Asphalt class D 400 - E 600,

Installation example

Asphalt class D 400 - E 600, with ledge stone

Installation example

Pavement class D 400 - E 600, in ramps

Installation example

Concrete class D 400 - F 900, in ramps

Installation example

Concrete class E 600,

Installation example

Asphalt class F 900,

Installation example

Concrete class F 900,

Installation example

Concrete class D 400, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Asphalt class F 900, as double strand

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example
