Article No. 10309
Further accessories

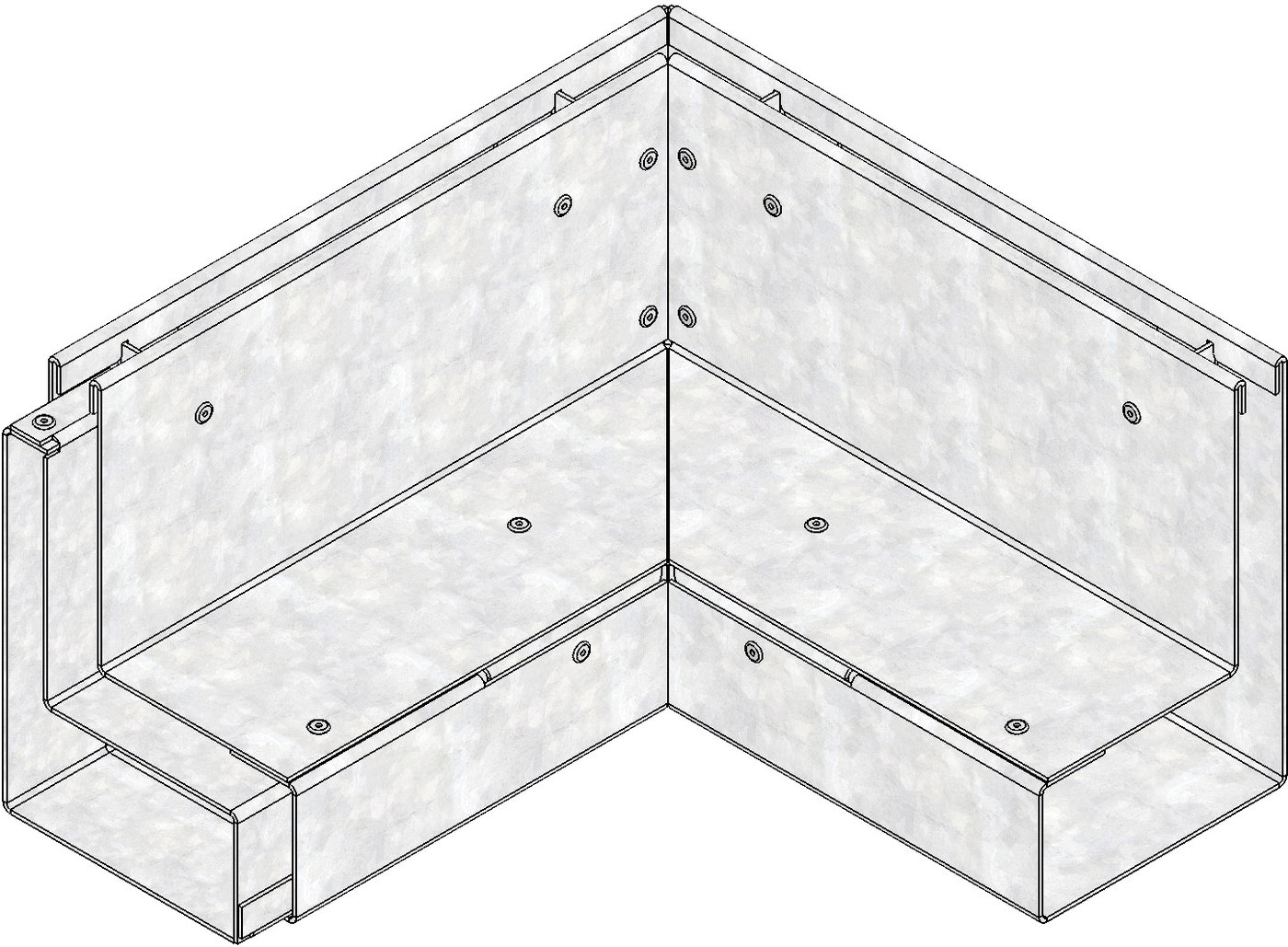

Corner element inside corner, type 150, neck height 100mm, asymmetric, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

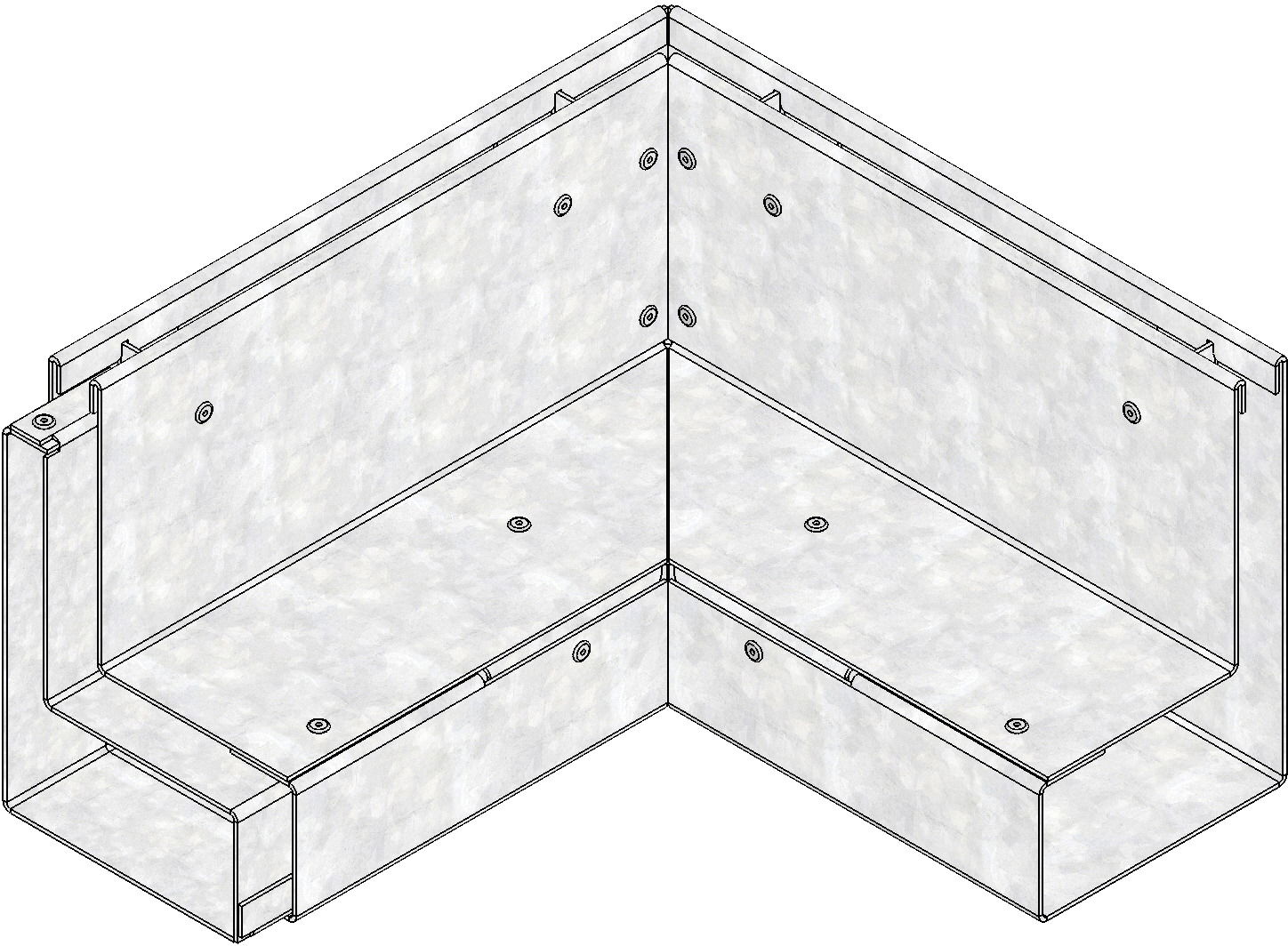

Product image

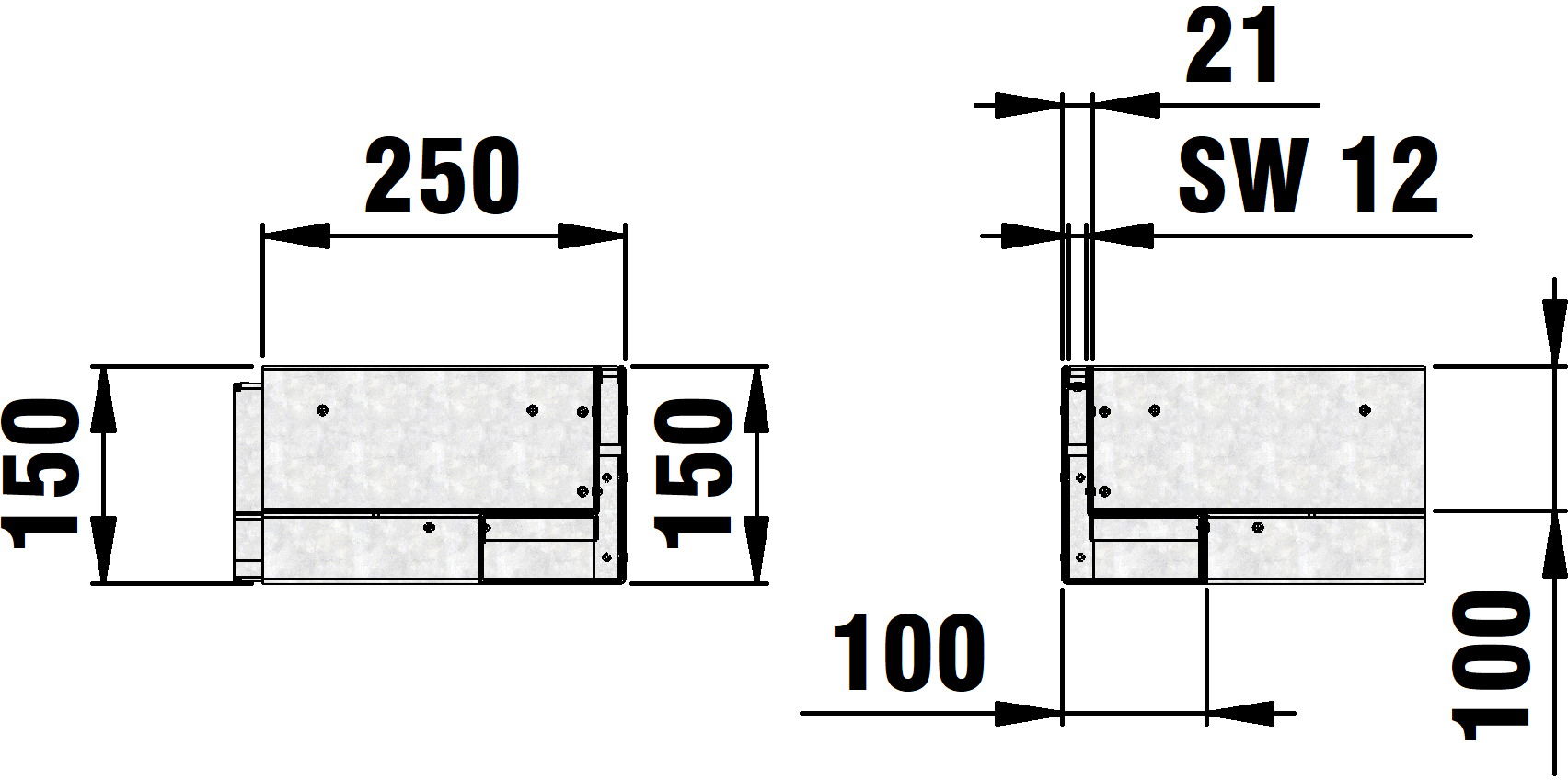

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10309
Length
250 mm
Width
100 mm
Height
150 mm
Weight
3.27 kg
Material
strip galvanized steel
Nominal size
100
Sales text
Corner element inside corner, SW 12 mm, neck height 100 mm, galvanised, asymmetric, cl. A 15, with connector, STEELFIX SLOT 100 type 150, side length 0.25 m
Product description
STEELFIX SLOT 100 type 150, Corner element inside corner, slot width 12 mm, neck height 100 mm, side length 250 mm at channel neck, made of galvanised steel, load class A 15, with connector as clamp-fit between channels and/or access units, item no. 10309
Packaging unit
-
