Article No. 10315
Further accessories
Corner element outside corner, type 180, neck height 130mm, asymmetric, galvanised
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

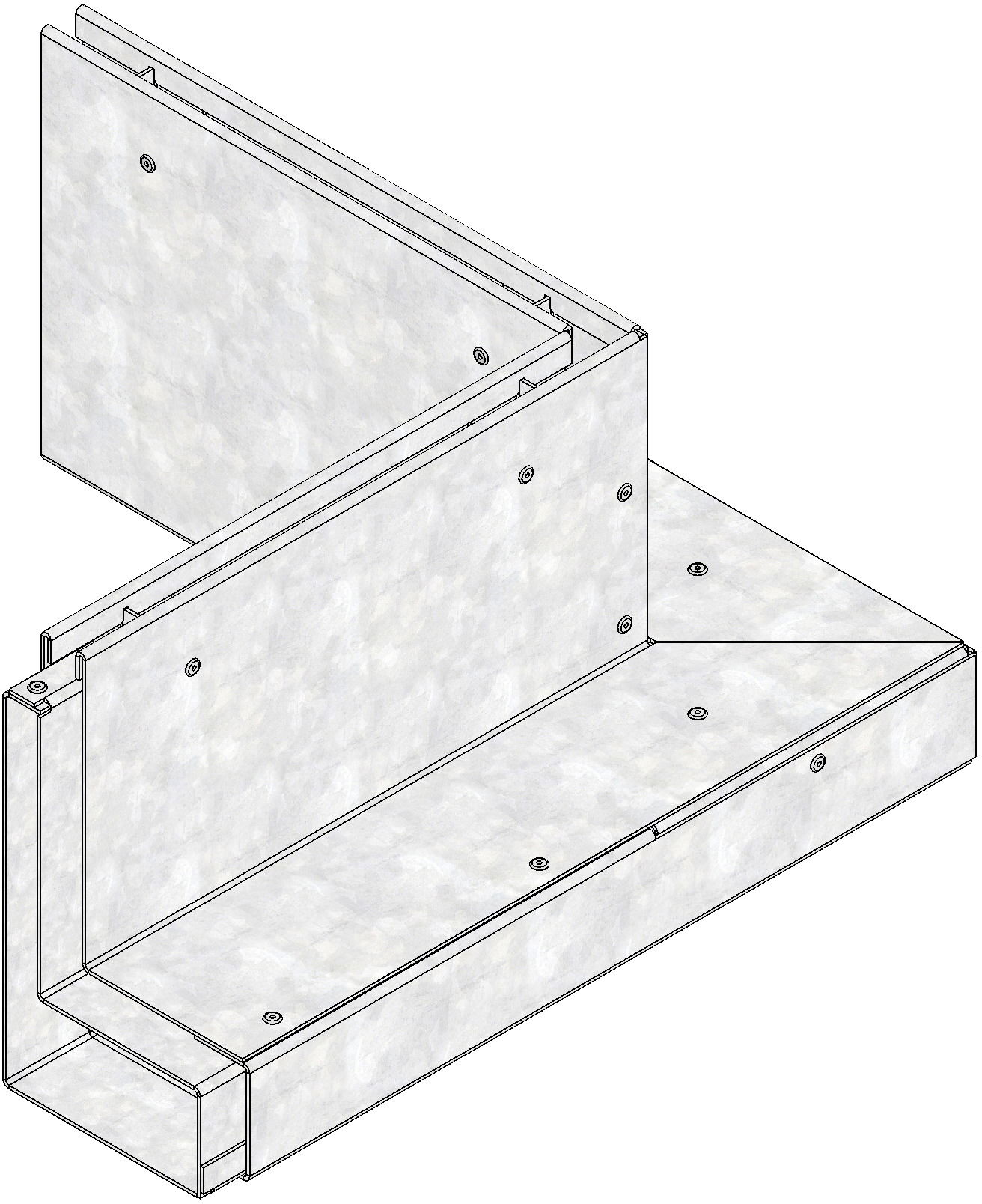

Product image

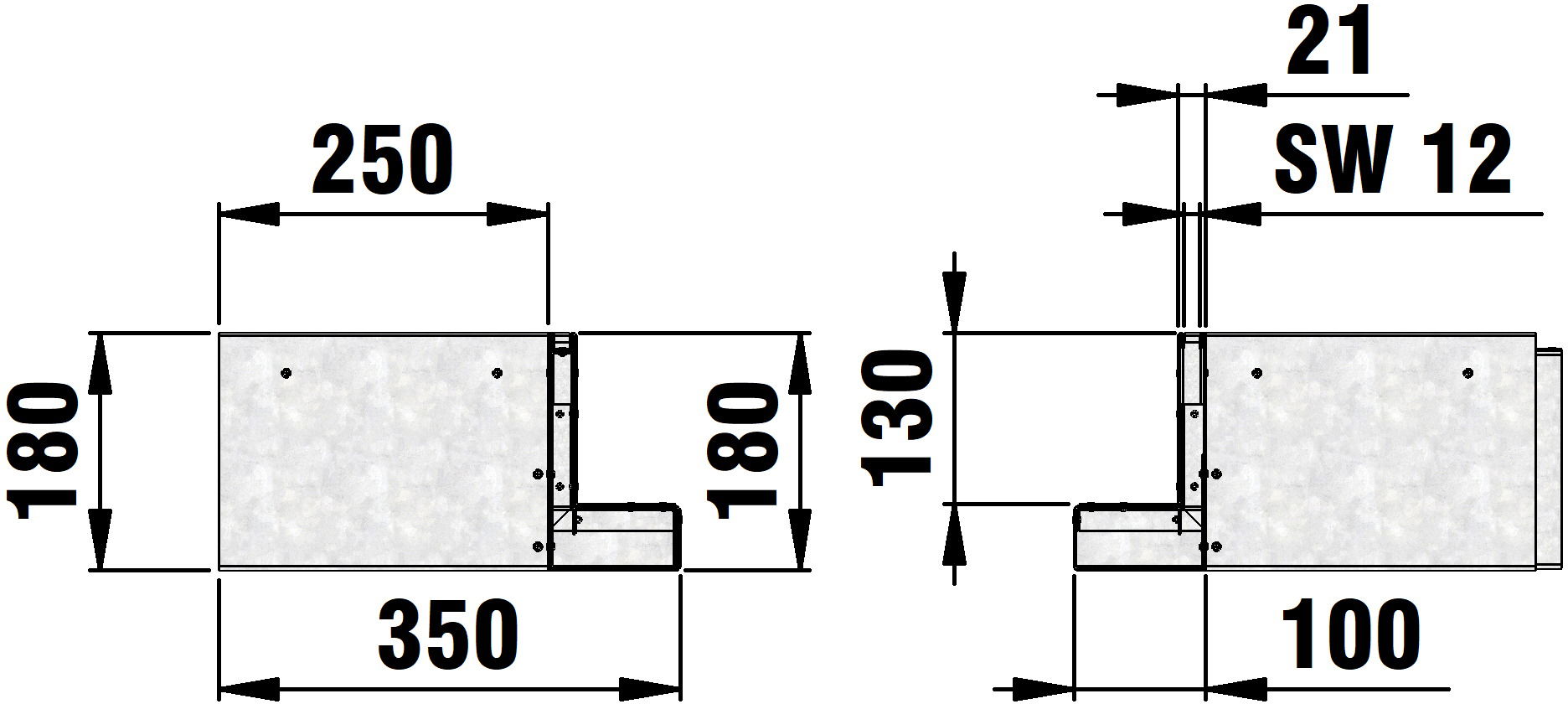

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10315
Length
250 mm
Width
100 mm
Height
180 mm
Weight
4.50 kg
Material
strip galvanized steel
Nominal size
100
Sales text
Corner element outside corner, SW 12 mm, neck height 130 mm, galvanised, asymmetric, cl. A 15, with connector, STEELFIX SLOT 100 type 180, side length 0.25 m
Product description
STEELFIX SLOT 100 type 180, Corner element outside corner, slot width 12 mm, neck height 130 mm, side length 250 mm at channel neck, made of galvanised steel, load class A 15, with connector as clamp-fit between channels and/or access units, item no. 10315
Packaging unit
-
