Article No. 36266
Inspection elements
Access element, type 450, for kerb installation, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

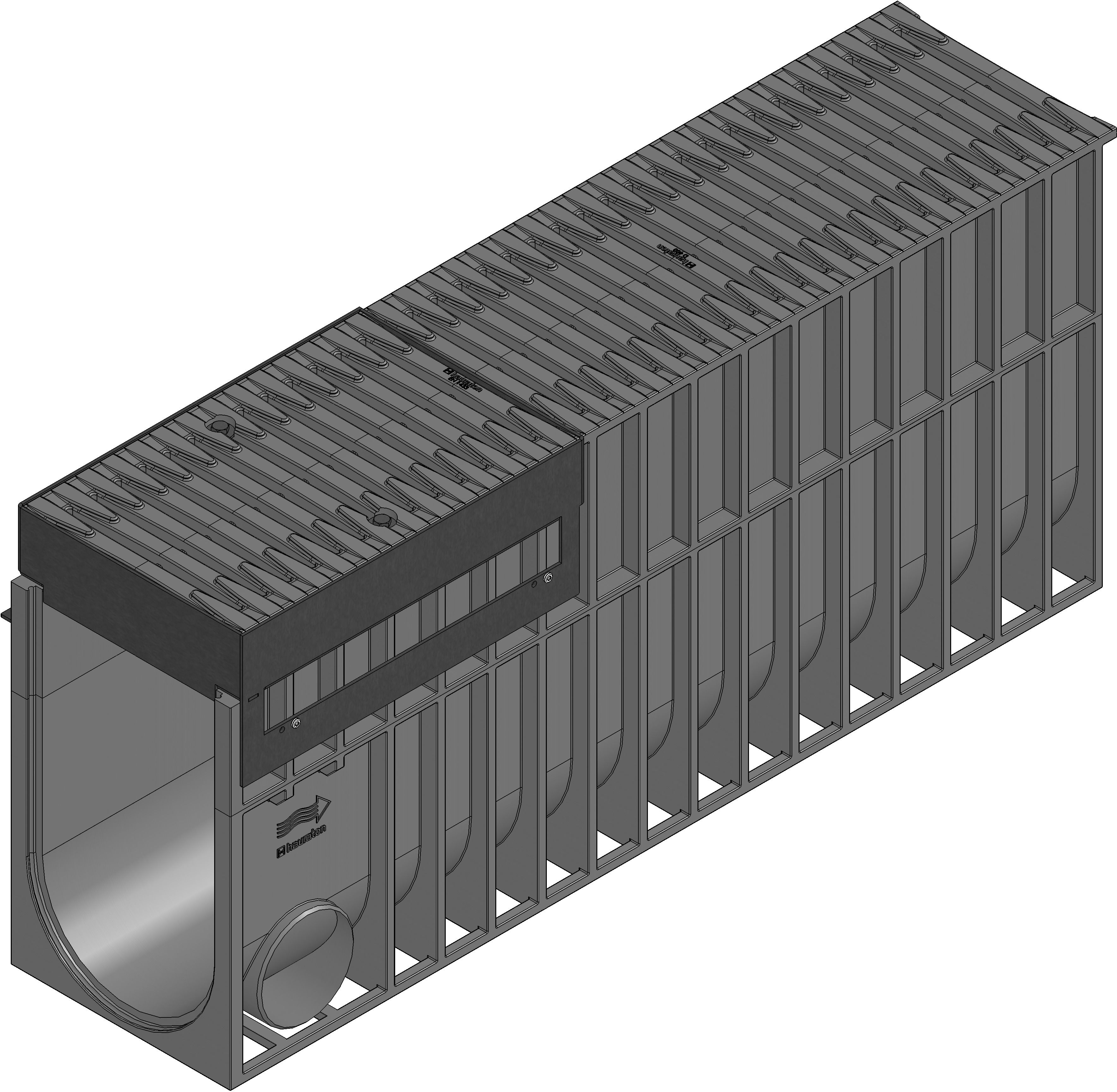

Product image
Technical drawing
Drawing (CAD)
Drawing

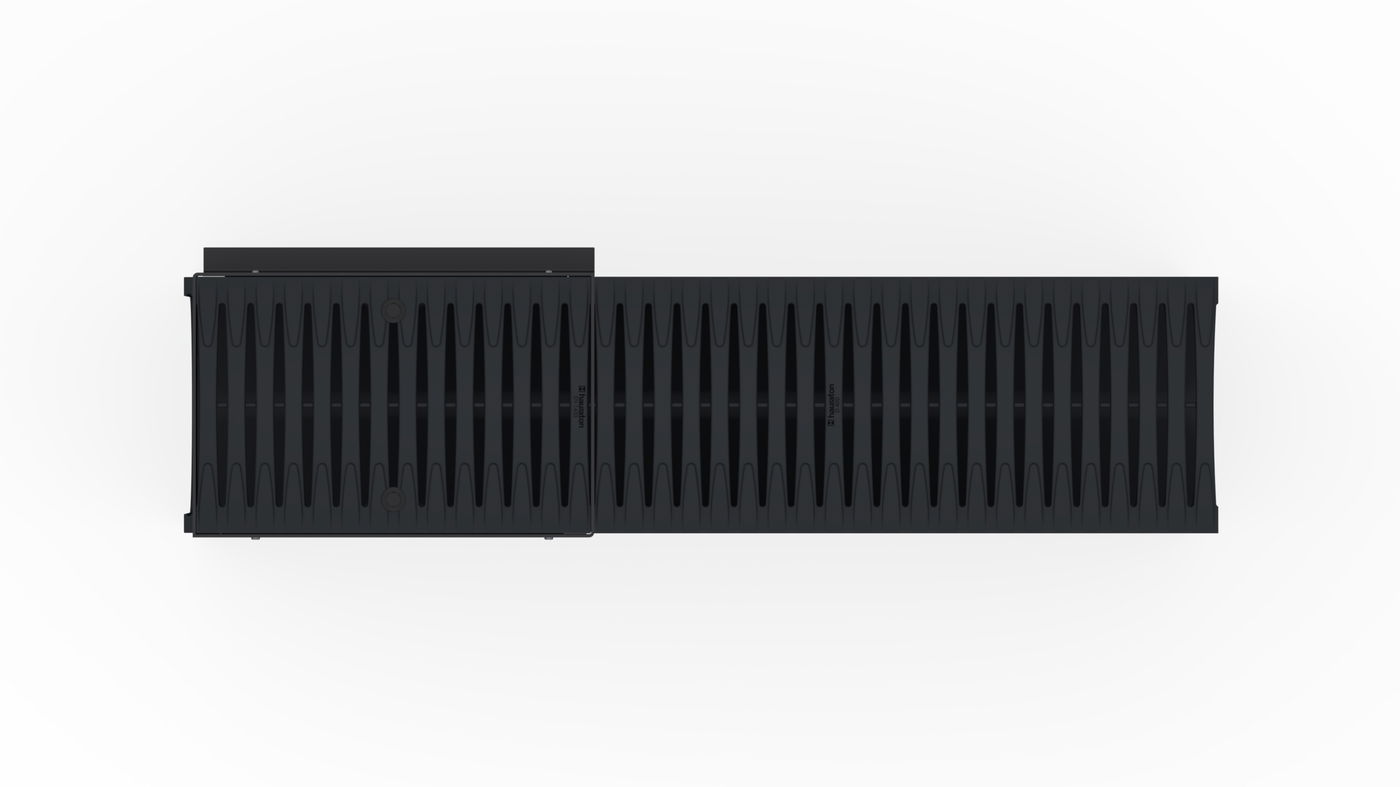

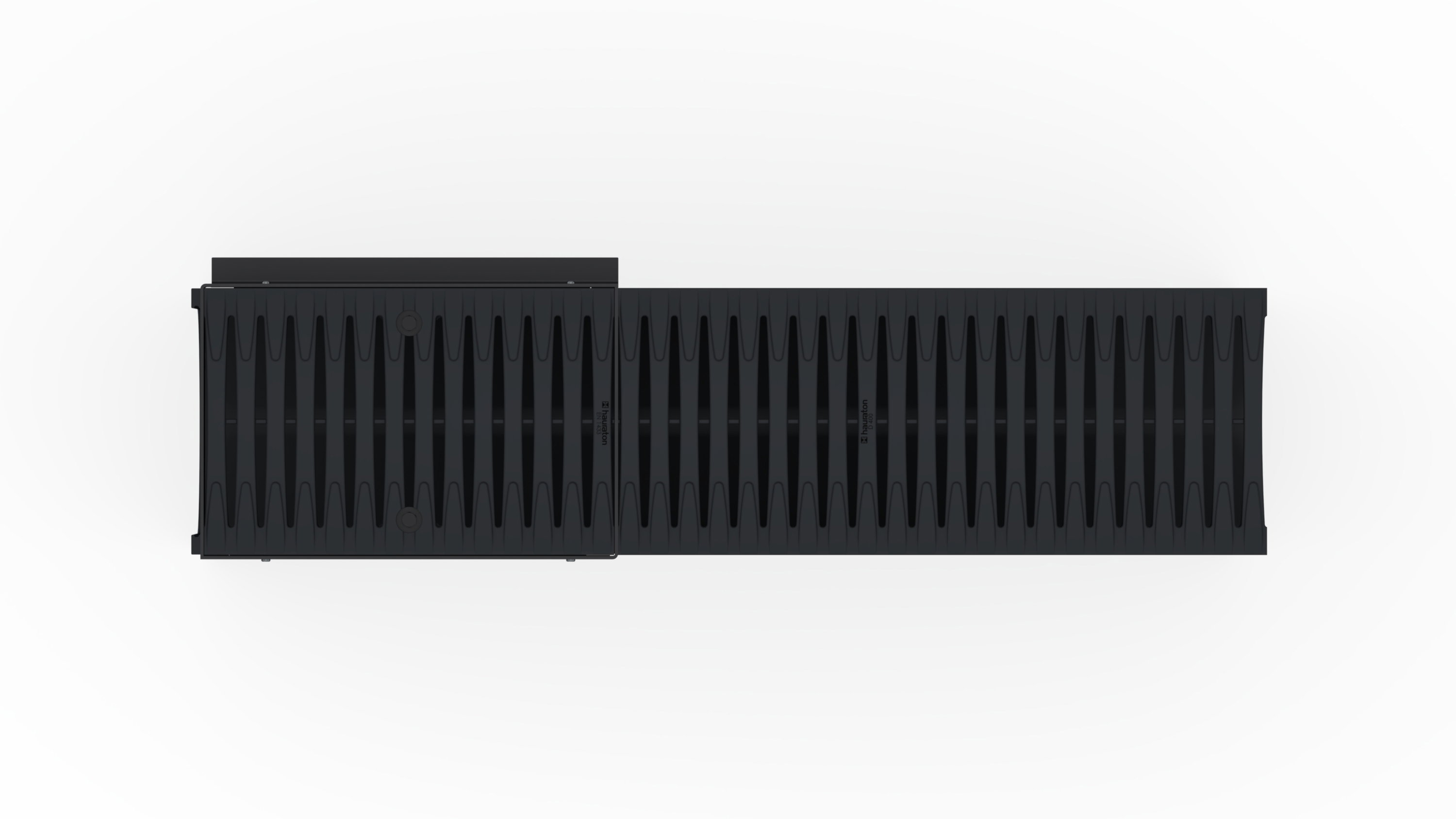

Top view
Data Sheet
Technical information and metrics
Article No.
36266
Length
1000 mm
Width
258 mm
Height
450 mm
Weight
19.22 kg
Material
KTL coated steel, reinforced Polypropylene
Height of angle housing
34 mm
Intake cross-section
307.0 cm²/m
Nominal size
200
Internal channel cross-section
648 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
DIN 19580
Sales text
RECYFIX MONOTEC 200 type 450 with permanently integrated cover in FIBRETEC design SW 200/10 mm and with integrated access unit, for installation beside the kerb, 1 m
Product description
RECYFIX MONOTEC 200 type 450 with integrated access unit for installation beside the kerb -Monolithic channel consists of channel body and permanently integrated cover in FIBRETEC design SW 200/10 mm, made of fibre-reinforced recycled polypropylene, black, with integrated access unit for installation beside the kerb, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x250x450 mm, item no. 36266
Packaging unit
12
Tender Texts
Installation example
Concrete class D 400, with high shelf
Concrete class D 400,
Pavement class D 400,
Asphalt class D 400,
Installation instructions
