Article No. 13787

RECYFIX HICAP F 10000 up to load class F 900

Access unit, with ductile iron cover 3x SW 140/18 mm, KTL-coated, 1.14 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

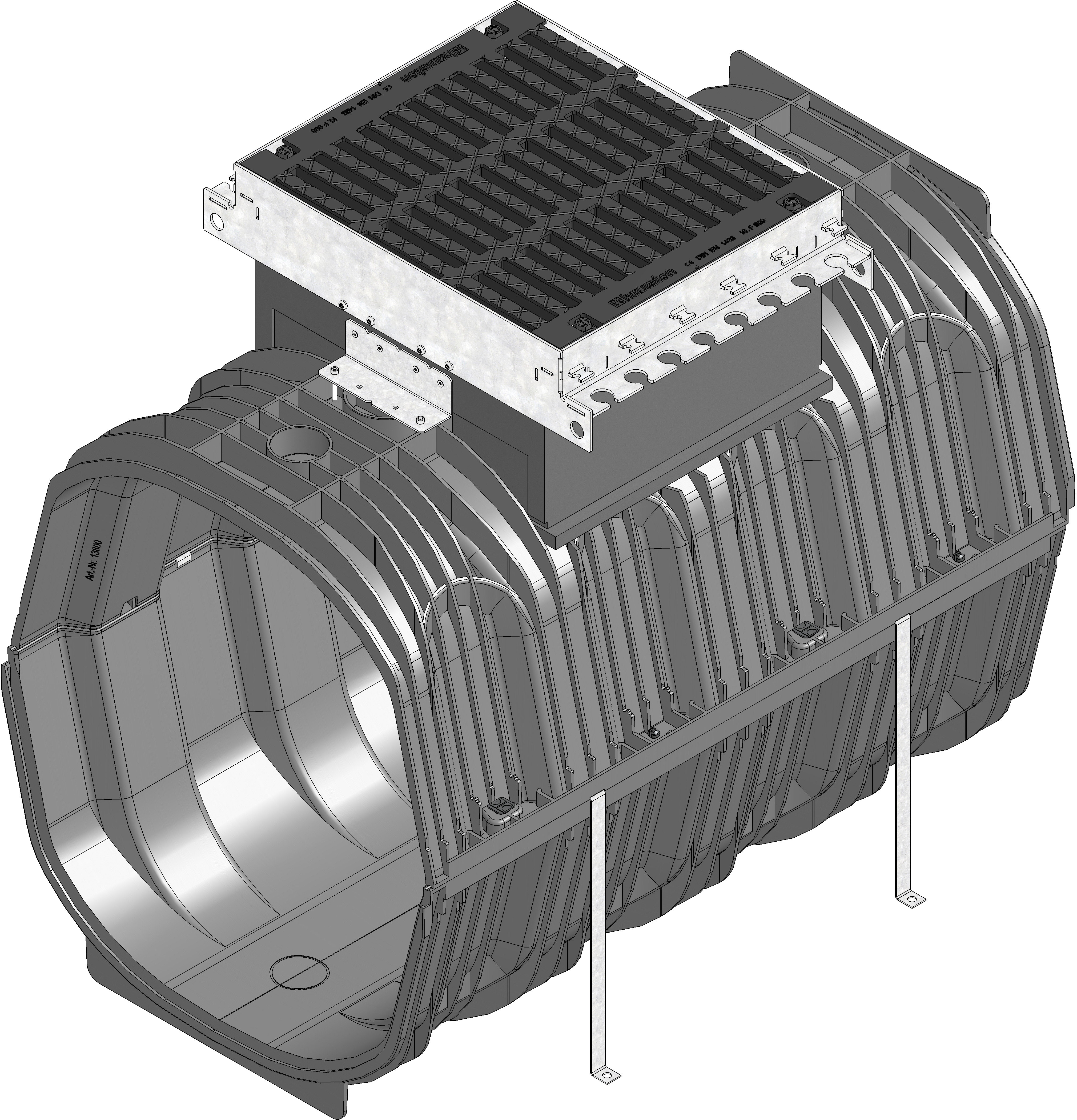

Product image

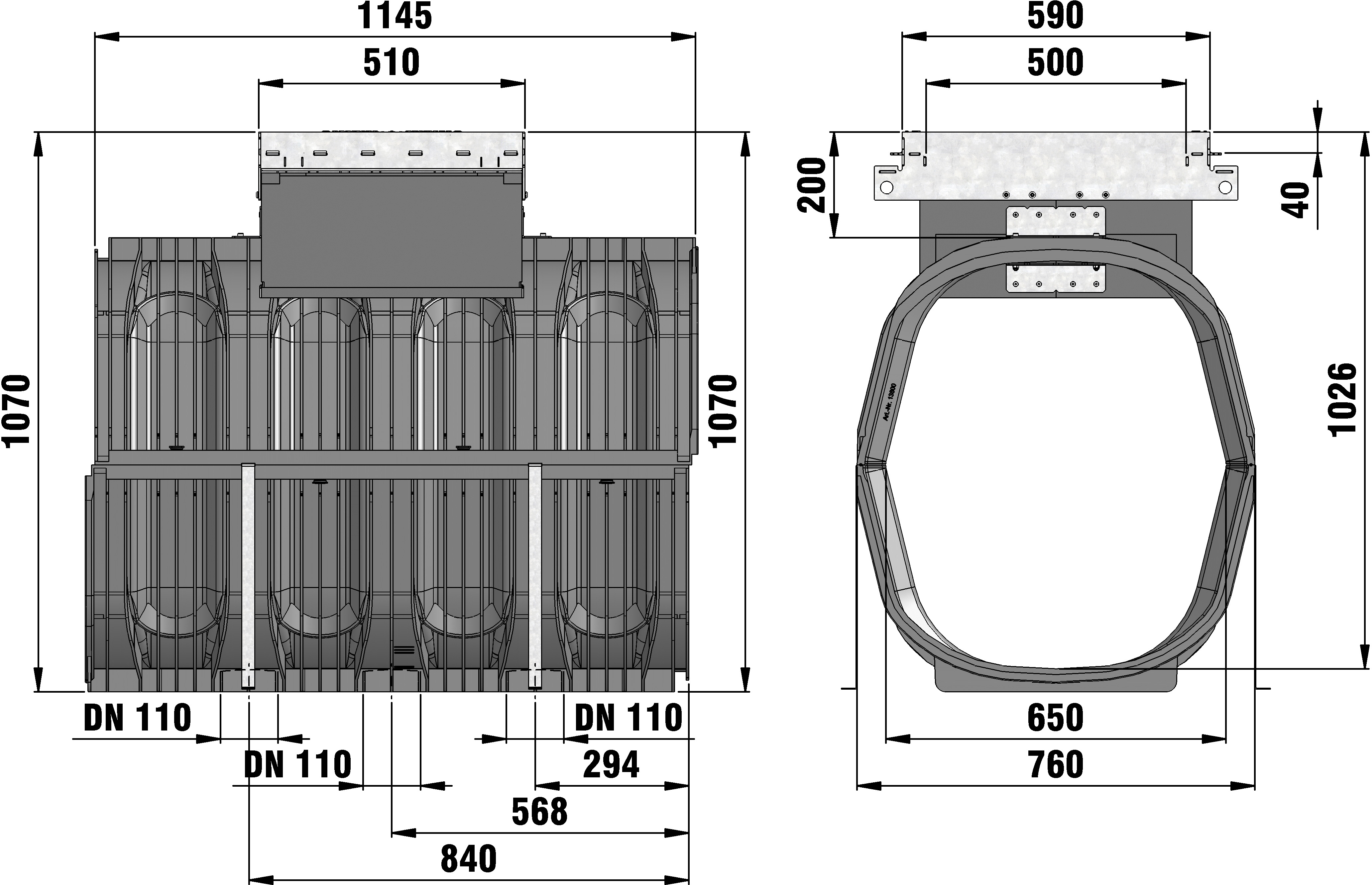

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13787
Length
1145 mm
Width
760 mm
Height
1070 mm
Weight
86.89 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene, Steel 8.8 zinc-laminated black, strip galvanized steel
Intake cross-section
2059.0 cm²/m
Nominal size
10000
Type according to DIN EN 1433
M
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
DIN 19580
Sales text
Access unit with ductile iron cover, 3x SW 140/18 mm, KTL-coated, cl. F 900, RECYFIX HICAP 10200, 1.14 m
Product description
RECYFIX HICAP 10200 Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 200 mm, made of galvanised steel, with ductile iron cover 3x SW 140/18 mm made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, 4-fold locking, load class A 15 - F 900 according to EN 1433, length 1145 mm, item no. 13787
Packaging unit
-
