Article No. 13778

RECYFIX HICAP F 5000 up to load class F 900

Access unit, with ductile iron cover SW 150/20 mm, KTL-coated, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

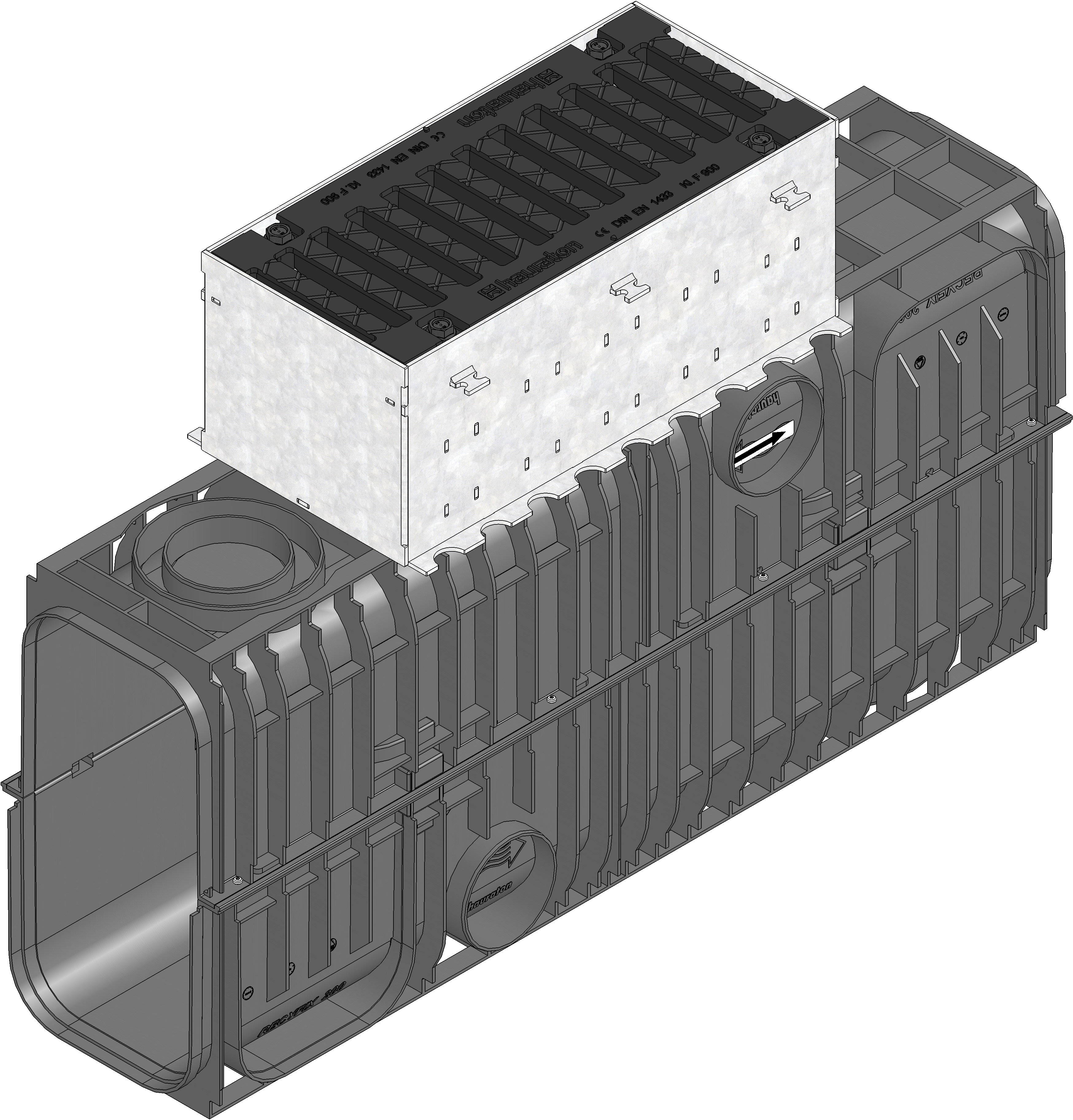

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13778
Length
1000 mm
Width
256 mm
Height
665 mm
Weight
36.56 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Stainless steel (V2A), Steel 8.8 zinc-laminated black, strip galvanized steel
Intake cross-section
710.0 cm²/m
Nominal size
5000
Type according to DIN EN 1433
M
Material cover
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Access unit with ductile iron cover SW 150/20 mm, KTL-coated, cl. F 900, RECYFIX HICAP 5200, 1 m
Product description
RECYFIX HICAP 5200 - Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene and top element, height 200 mm, made of galvanised steel, with ductile iron cover SW 150/20 mm made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, 4-fold locking, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13778
Packaging unit
4
