Article No. 32372
RECYFIX HICAP T 3000 up to class F 900
Type 3300 with ductile iron slotted drainage inlets and additional inlets for OPA/BZE drainage, KTL-coated, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

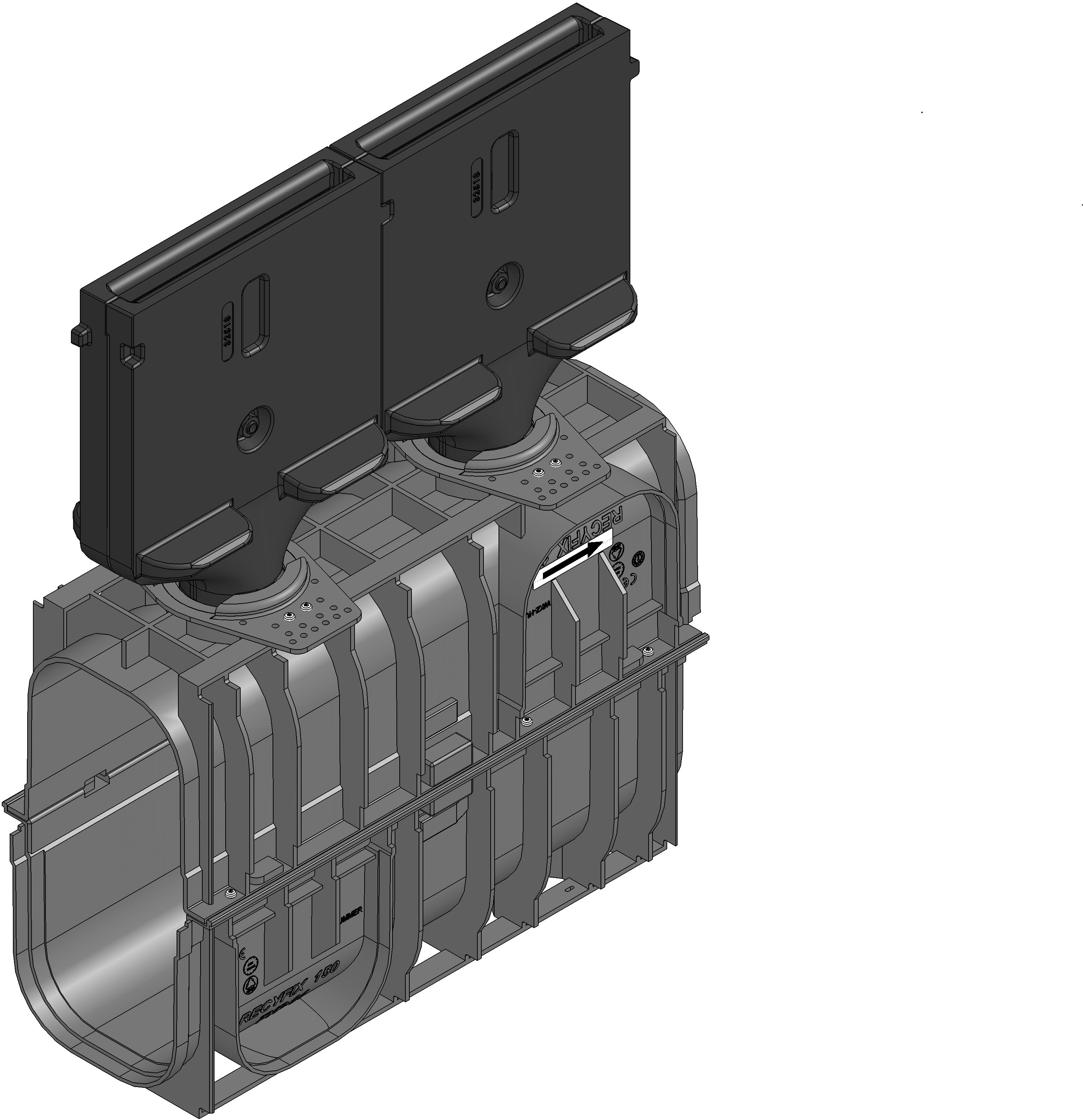

Product image

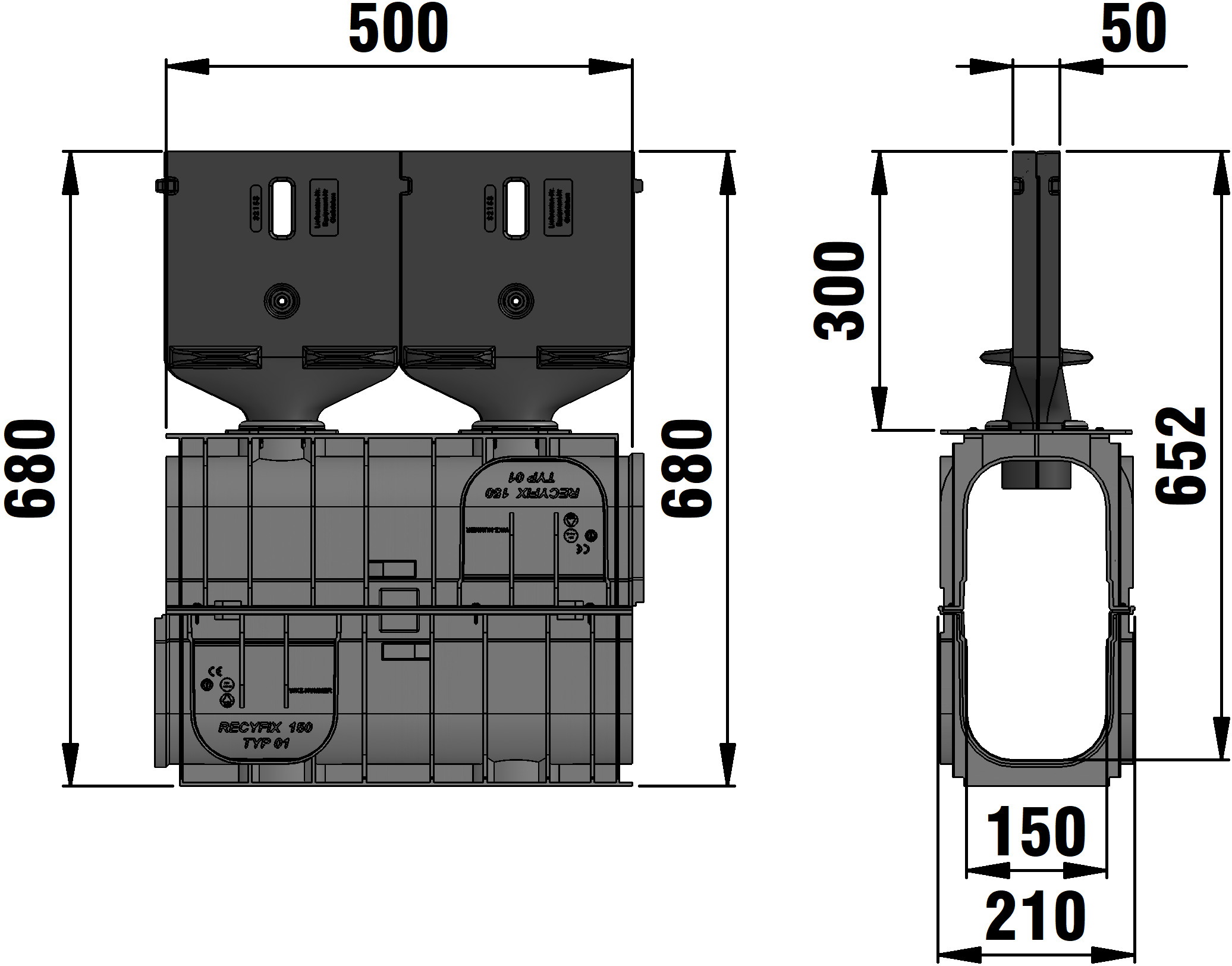

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32372
Length
500 mm
Width
210 mm
Height
680 mm
Weight
24.61 kg
Height of angle housing
328 mm
Intake cross-section
154.0 cm²/m
Nominal size
3000
Internal channel cross-section
460 cm²
Fall
-
Height funnel
300 mm
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP T 3300 Drainage/Retention channel type OPA/BZE with 30 cm high ductile iron slotted drainage inlets and additional inlets for OPA/BZE drainage, KTL-coated, cl. F 900, 0.5 m
Product description
RECYFIX HICAP T 3300 - Drainage/Retention channel type OPA/BZE channel body made of recycled polypropylene, with 30 cm high ductile iron slotted drainage inlets SW 17 mm, made of spheroidal ductile iron EN-GJS-500-7, (GGG-50), KTL-coated, hydraulically optimised edge of the slotted covers, with additional openings on both sides for drainage of porous asphalt surfaces (OPA) or for drainage during construction (BZE), with a drainage cross-section of 460 cm² and a retention volume of 46.0 L/m, LxWxH 500x210x680 mm, item no. 32372
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
