Article No. 32385

RECYFIX HICAP T 5000 up to class F 900

Type 5300 with ductile iron slotted drainage inlet, SW 17 mm, KTL-coated, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

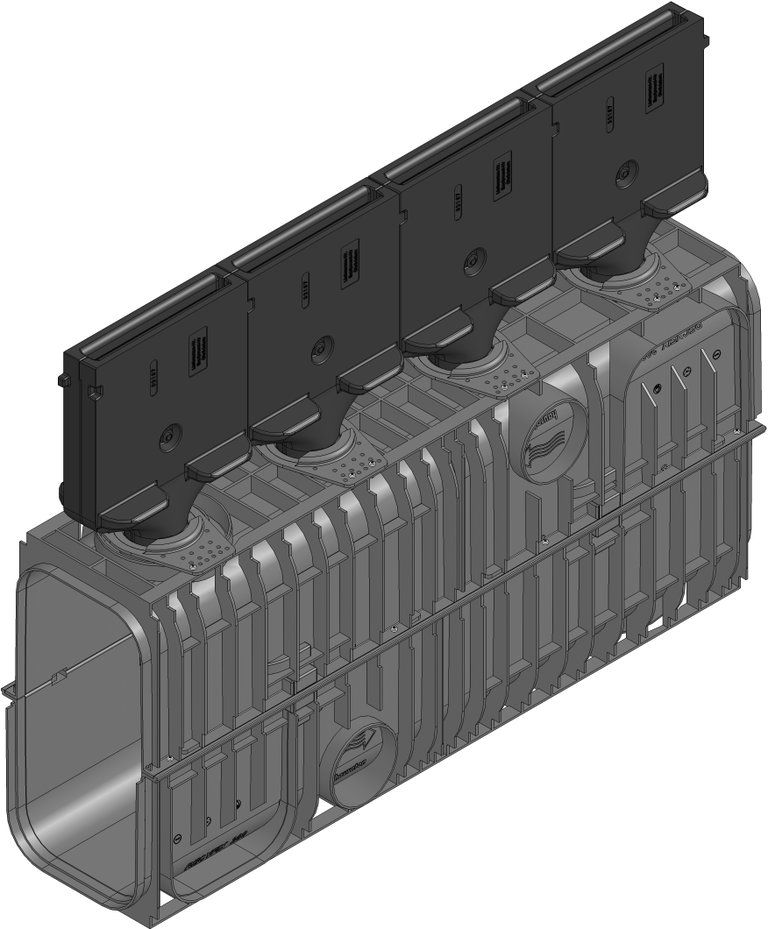

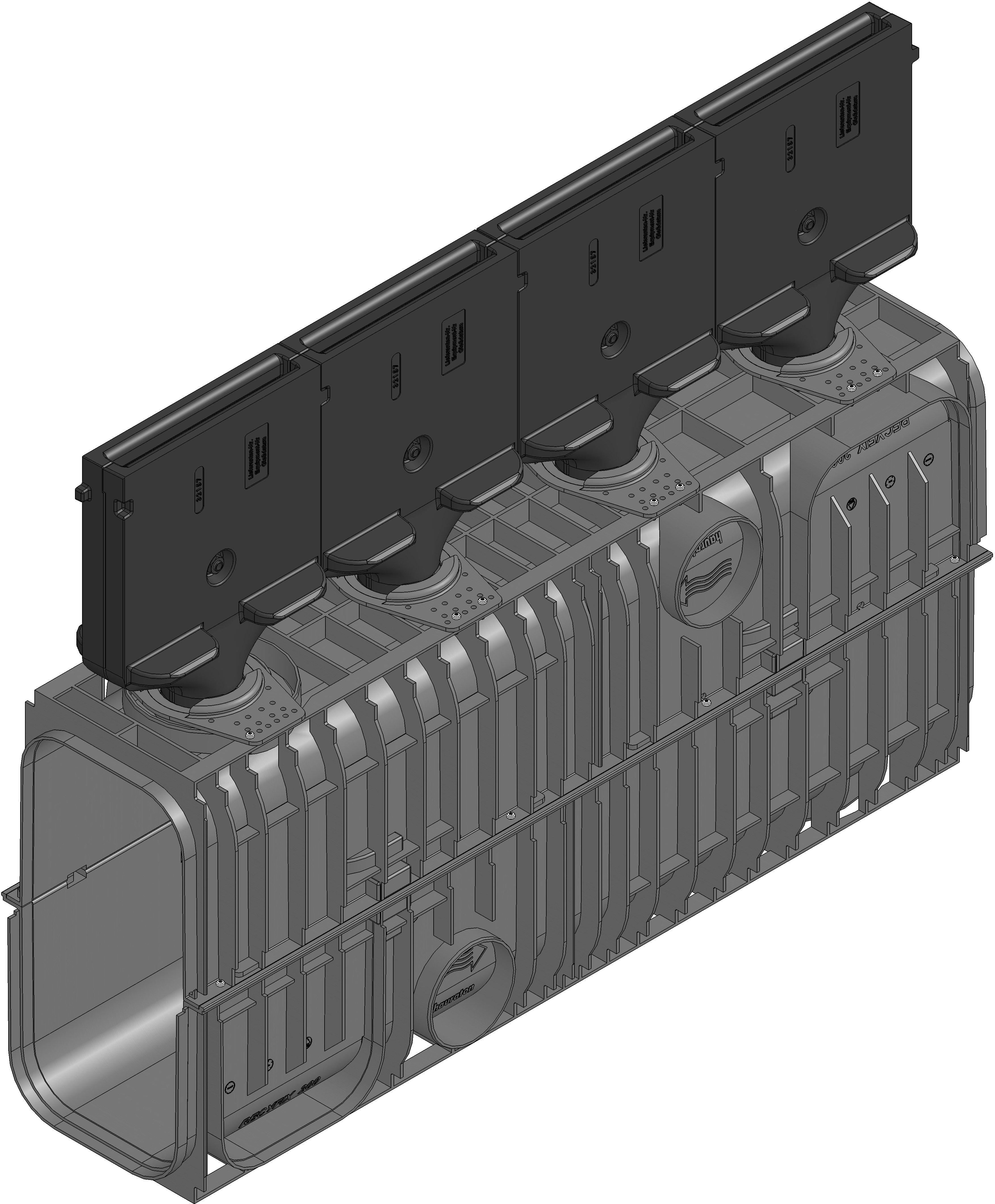

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
32385
Length
1000 mm
Width
256 mm
Height
765 mm
Weight
43.00 kg
Height of angle housing
328 mm
Intake cross-section
154.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
300 mm
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP T 5300 Drainage/Retention channel type OPA/BZE with 30 cm high ductile iron slotted drainage inlet, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP T 5300 - Drainage/Retention channel, with channel body made of recycled polypropylene, with 30 cm high ductile iron slotted drainage inlets SW 17 mm, made of spheroidal ductile iron EN-GJS-500-7 (GGG-50), KTL-coated, hydraulically optimised edge of the slotted covers, load class A 15 - F 900 according to EN 1433, with a drainage cross-section of 790 cm² and a retention volume of 779.0 L/m, LxWxH 1000x256x665 mm, item no. 32385
Packaging unit
-
