Article No. 32377
RECYFIX HICAP T 5000 up to class F 900
Type 5300 with ductile iron slotted drainage inlets and additional inlets for OPA/BZE drainage, KTL-coated, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

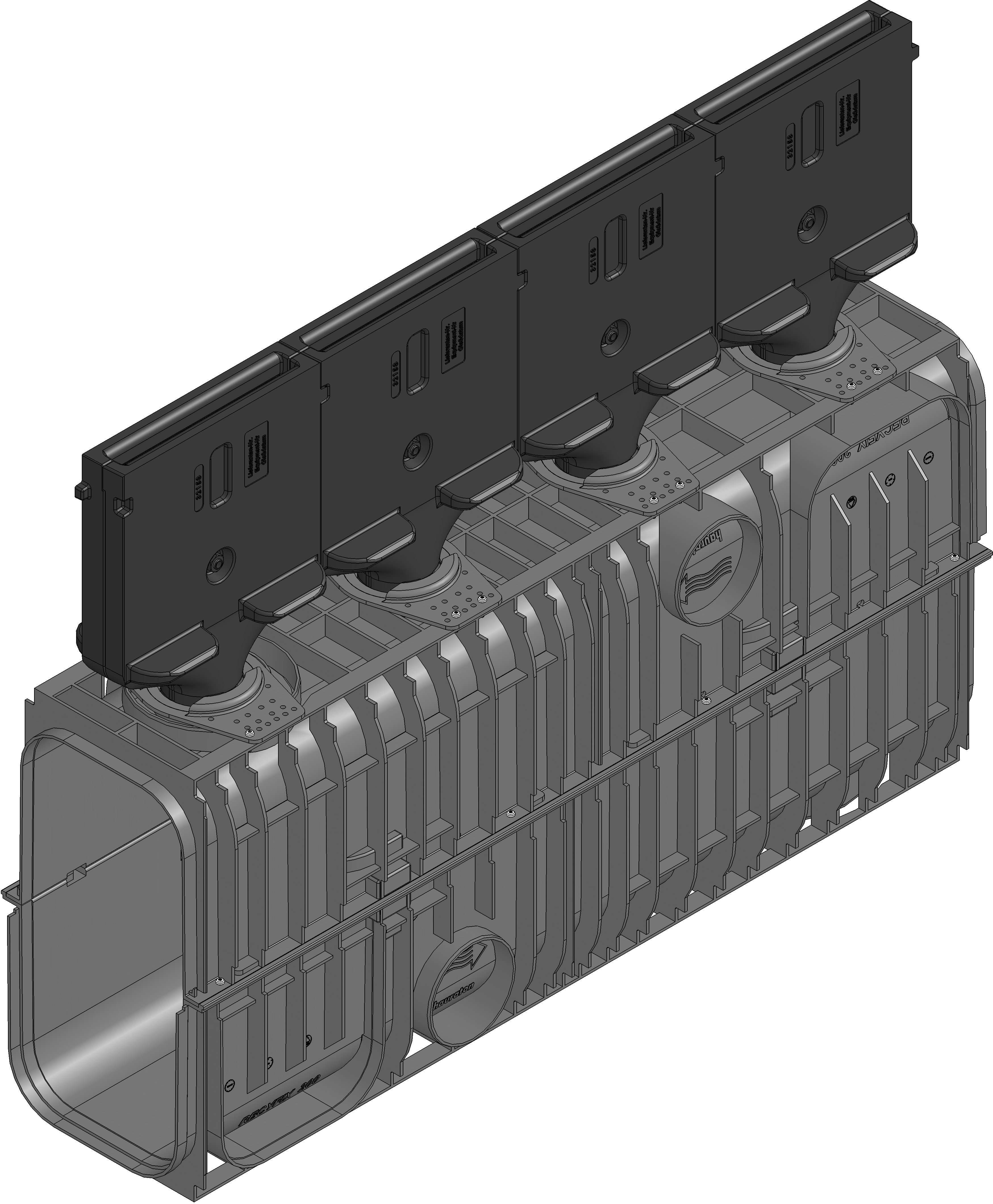

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32377
Length
1000 mm
Width
256 mm
Height
765 mm
Weight
44.78 kg
Height of angle housing
328 mm
Intake cross-section
154.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
300 mm
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP T 5300 Drainage/Retention channel type OPA/BZE with 30 cm high ductile iron slotted drainage inlets and additional inlets for OPA/BZE drainage, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP T 5300 - Drainage/Retention channel type OPA/BZE channel body made of recycled polypropylene, with 30 cm high ductile iron slotted drainage inlets SW 17 mm, made of spheroidal ductile iron EN-GJS-500-7, (GGG-50), KTL-coated, hydraulically optimised edge of the slotted covers, with additional openings on both sides for drainage of porous asphalt surfaces (OPA) or for drainage during construction (BZE), load class A 15 - F 900 according to EN 1433, with a drainage cross-section of 790 cm² and a retention volume of 79.0 L/m, LxWxH 1000x256x665 mm, item no. 32377
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400 - F 900, RECYFIX HICAP 5200 Inspection element
Concrete class D 400 - F 900, RECYFIX HICAP 5200 Inspection element
Asphalt class E 600 - F 900, RECYFIX HICAP 5300 Inspection element
Concrete class E 600 - F 900, RECYFIX HICAP 5300 Inspection element
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
