Article No. 13784
RECYFIX HICAP T 8000 up to class F 900
Access element for system size 8300 with ductile iron cover SW 150/20 mm, KTL-coated, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

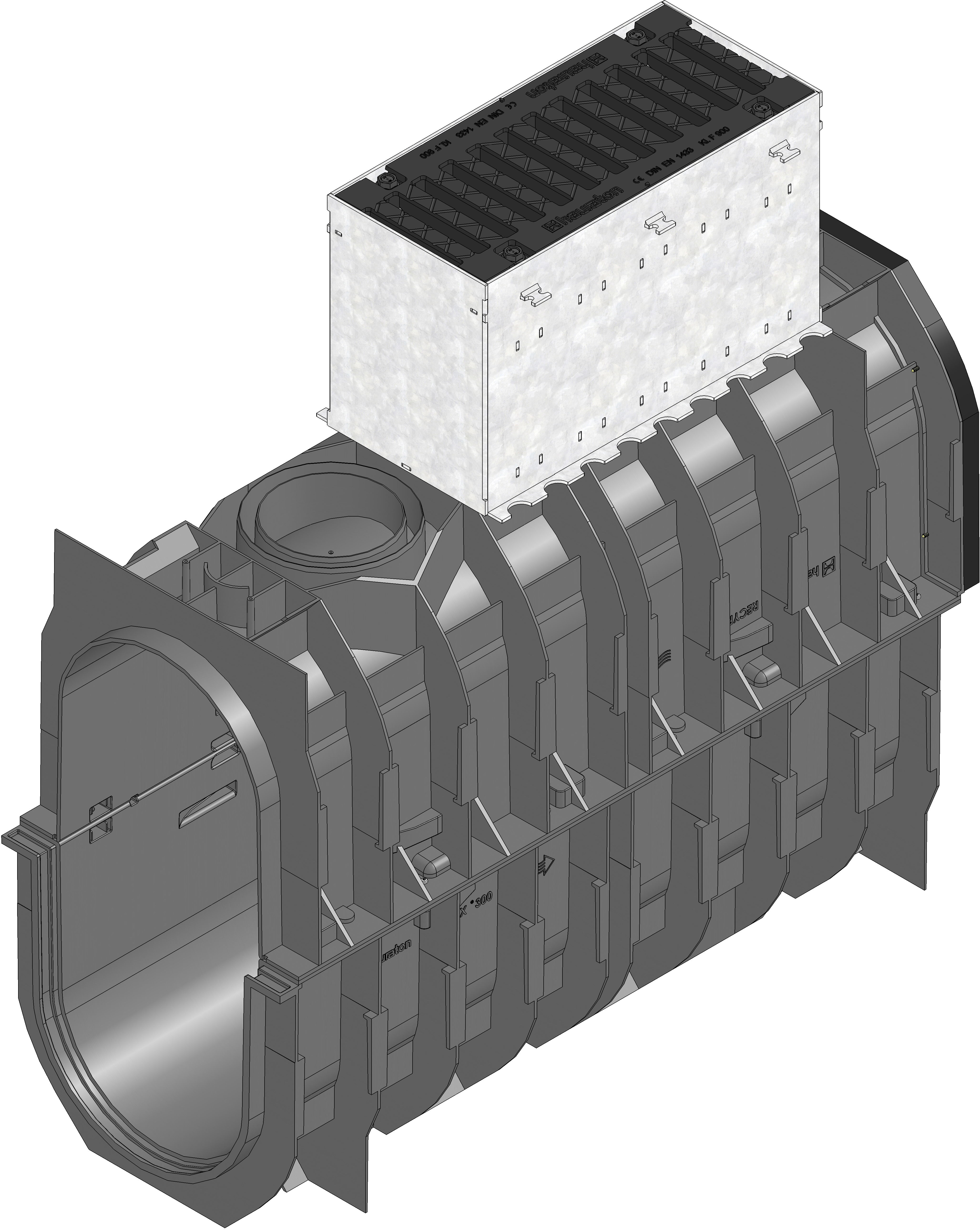

Product image

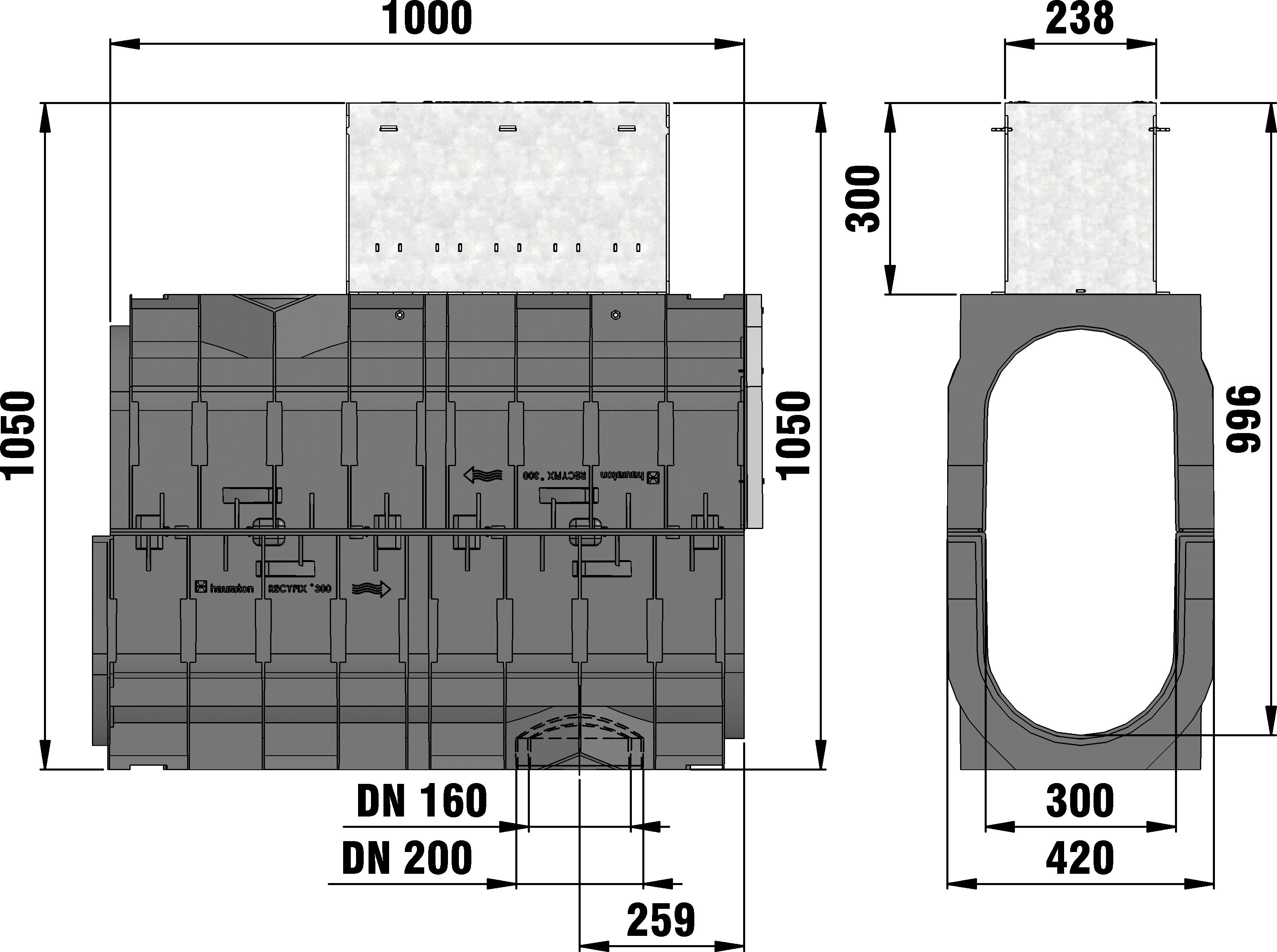

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
13784
Length
1000 mm
Width
420 mm
Height
1050 mm
Weight
55.98 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Stainless steel (V2A), Steel 8.8 zinc-laminated black
Intake cross-section
710.0 cm²/m
Nominal size
8000
Type according to DIN EN 1433
M
Material cover
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Access unit with ductile iron cover SW 150/20 mm, KTL-coated, cl. F 900, RECYFIX HICAP 8300, 1 m
Product description
RECYFIX HICAP 8300 Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 300 mm, made of galvanised steel, with ductile iron cover SW 150/20 mm made of spheroidal ductile iron EN-GJS-500 -7, KTL-coated, 4-fold locking, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13784
Packaging unit
3
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400 - E 600, Inspection element
Concrete class D 400 - E 600, Inspection element
Asphalt class F 900, Inspection element
Concrete class F 900, Inspection element
Asphalt class F 900, Inspection element
Concrete class F 900, Inspection element
Asphalt class E 600, Sump unit
Concrete class E 600, Sump unit
Concrete class F 900, Sump unit
