Article No. 10380
RECYFIX MONOTEC ULTRA 300, up to load class F 900
Type 01, with permanently integrated ductile iron cover 3x SW 75/18 mm, black, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

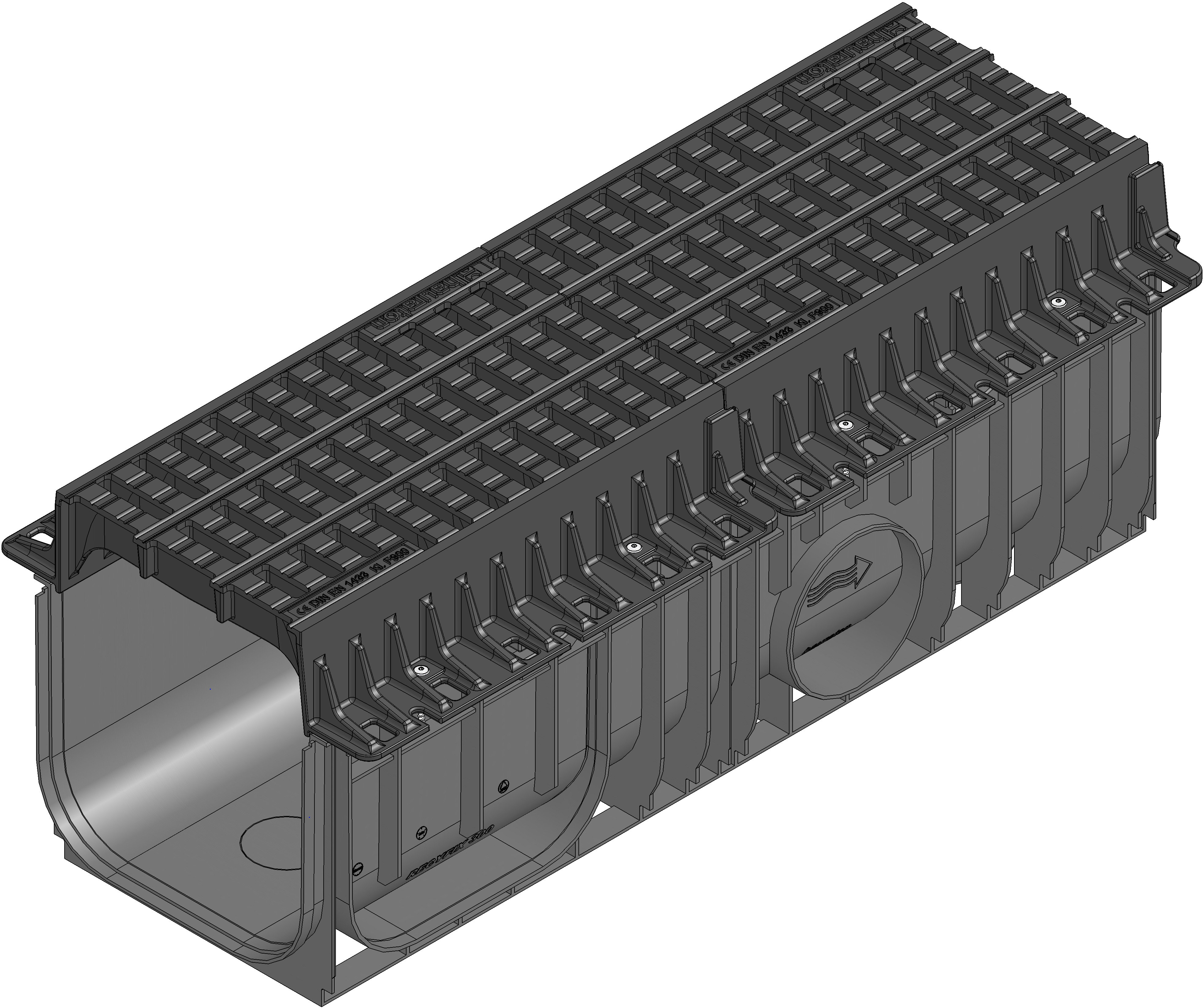

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
10380
Length
1000 mm
Width
440 mm
Height
386 mm
Weight
56.64 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene
Height of angle housing
49 mm
Intake cross-section
941.0 cm²/m
Nominal size
300
Internal channel cross-section
858 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC ULTRA 300 type 01 with permanently integrated ductile iron cover 3x SW 75/18 mm, black, cl. F 900, 1 m
Product description
RECYFIX MONOTEC ULTRA 300 type 01 - Monolithic channel, consists of channel body made of recycled polypropylene and permanently integrated ductile iron cover made of spheroidal ductile iron EN-GJS-500-7, 3x SW 75/18 mm, black, according to EN 1433, with lateral (DN/OD 160) and vertical (DN/OD 160/200) connection possibility, load class A 15 - F 900 according to EN 1433, LxWxH 1000x440x386 mm, item no. 10380
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Asphalt class F 900,
Concrete class F 900,
