Article No. 40095

RECYFIX NC 100, class D 400

Type 020 with ductile iron cover SW 110/9 mm in FIBRETEC-design, black, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

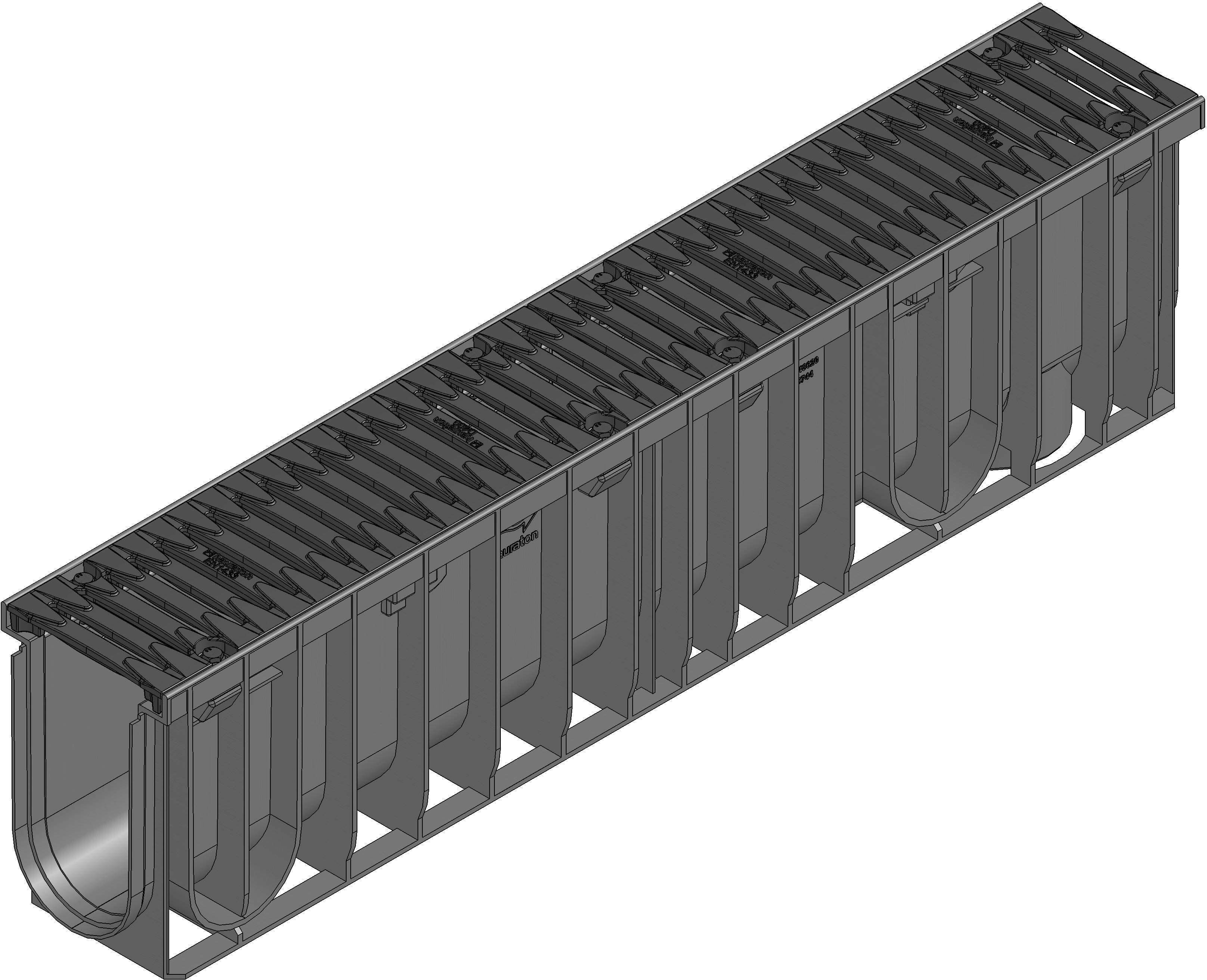

Product image

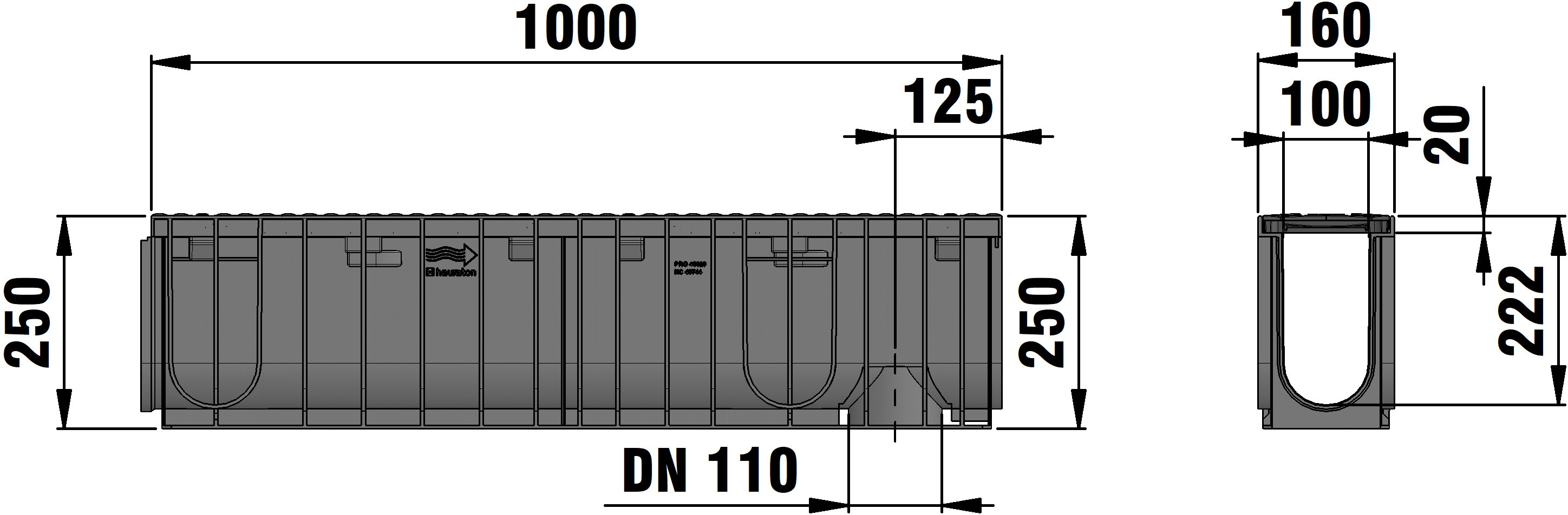

Technical drawing

Drawing (CAD)

Drawing (CAD)

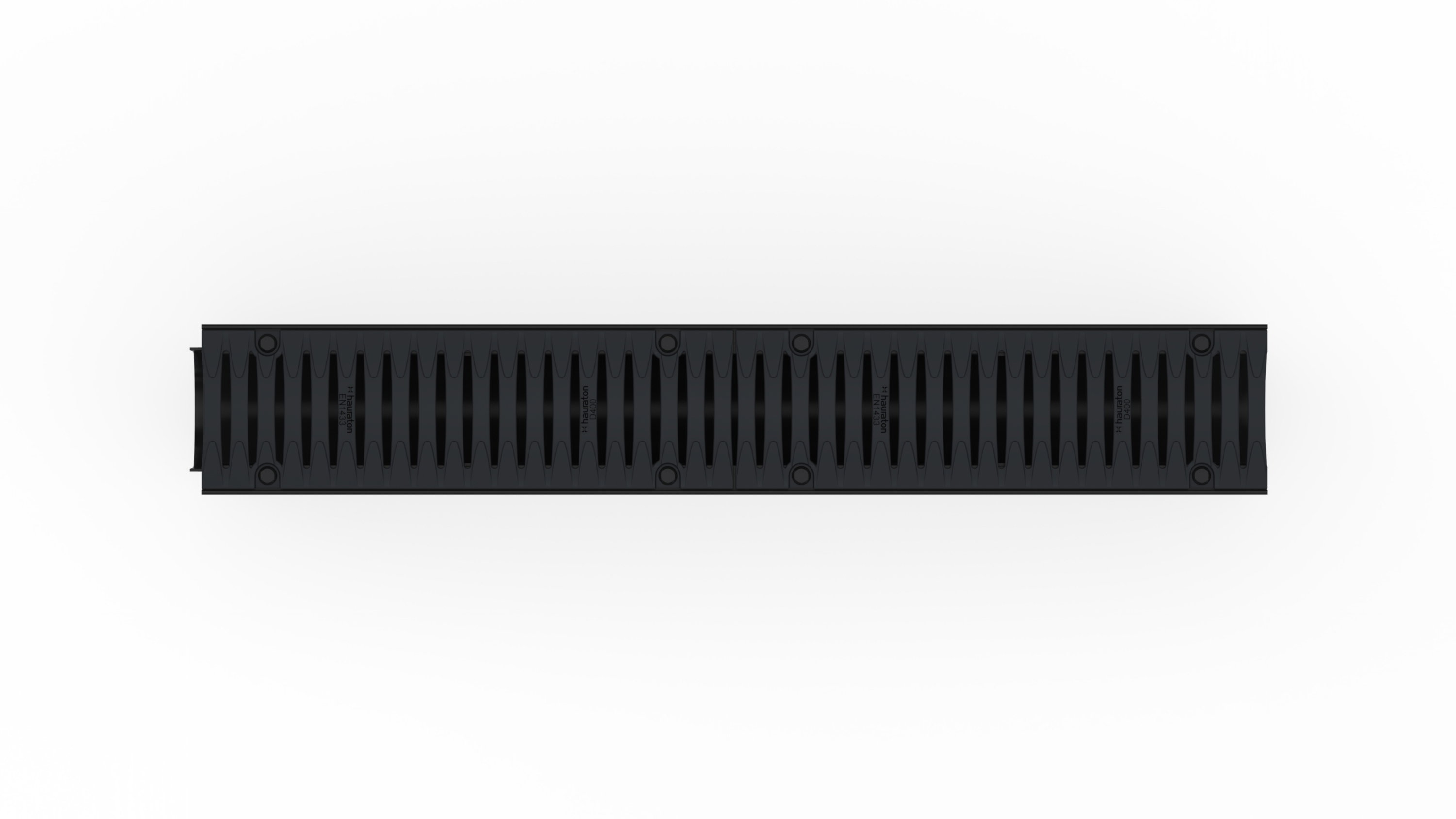

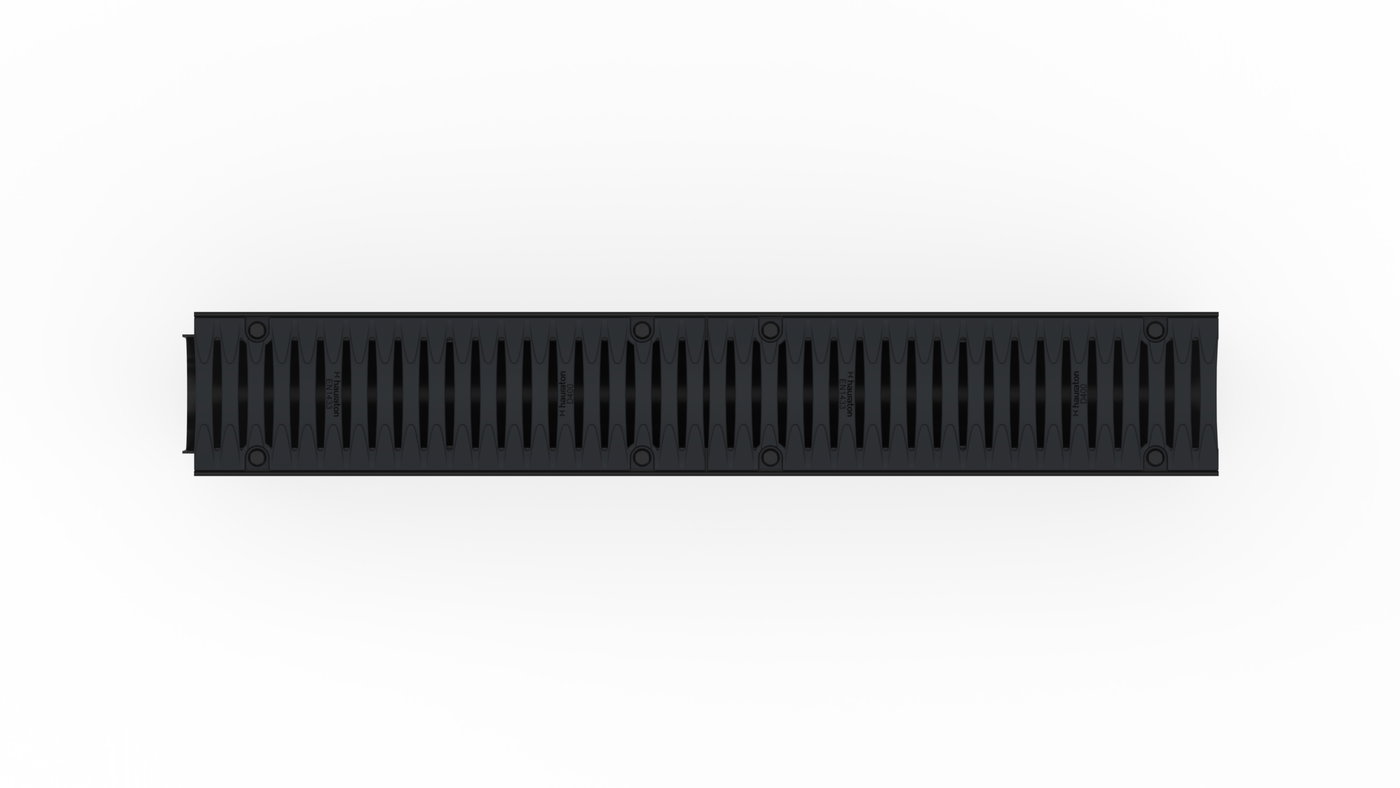

Top view

Data Sheet

Technical information and metrics
Article No.
40095
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
13.29 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 100 Channel type 020 with ductile iron cover SW 110/9 mm in FIBRETEC design, black, cl. D 400, 1 m
Product description
RECYFIX NC 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frame, with vertical connection possibility DN/OD 110, with ductile iron cover SW 110/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black , with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 1000x160x250 mm, item no. 40095
Packaging unit
28

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class D 400, channel height ≥ 150 mm

Installation example

Asphalt class D 400 - E 600, channel height ≥ 150 mm

Installation example

Concrete class D 400 - E 600, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, Type 75, Type 95

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250, Type 75, Type 95

Installation example

Cemented floor class D 400 - E 600,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Concrete class C 250 - D 400, as double strand

Installation example

Asphalt class C 250 - D 400, as double strand

Installation example

Concrete class E 600, as double strand

Installation example

Installation instructions
Installation instructions
