Article No. 40102

RECYFIX NC 150, class D 400

Type 01 with ductile iron cover, SW 148/9 mm in FIBRETEC design, KTL-coated, 8-fold bolting, 1 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

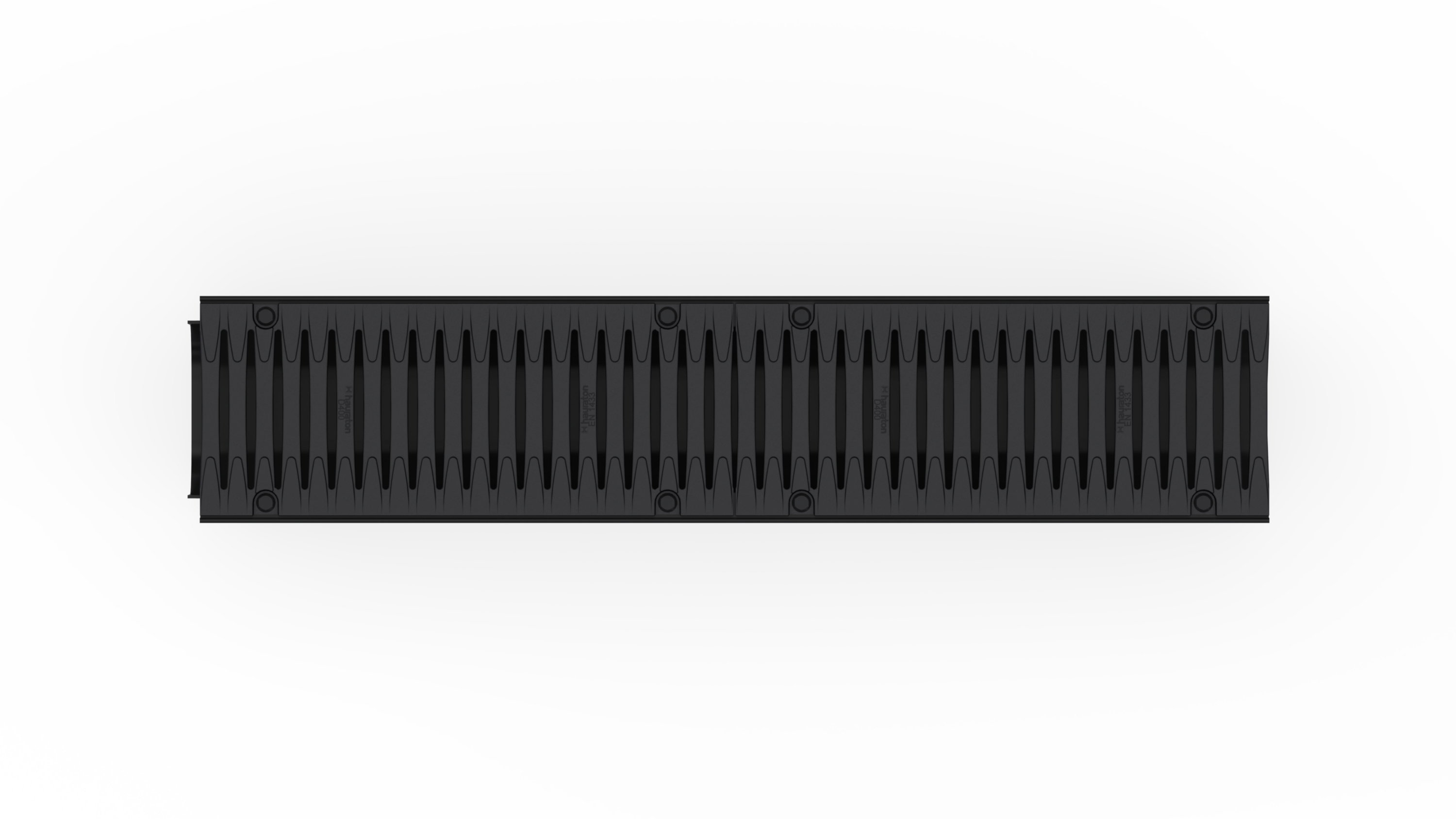

Top view

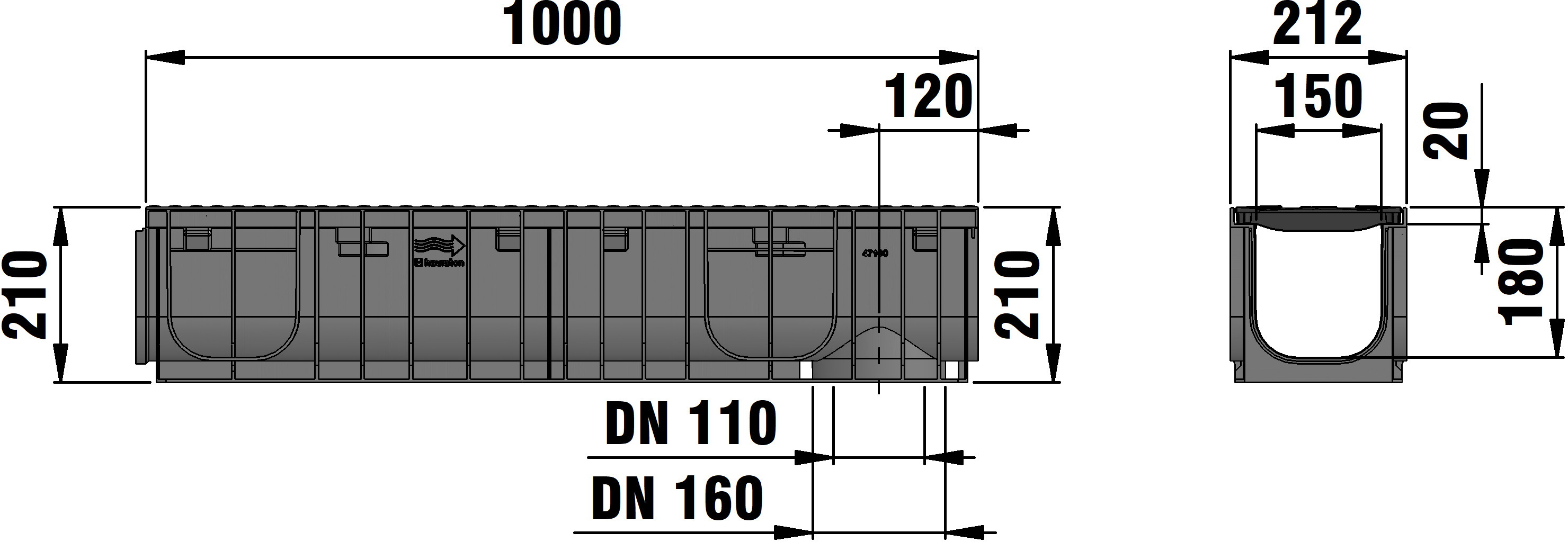

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
40102
Length
1000 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
17.90 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
417.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 150 Channel type 01 with ductile iron cover SW 148/9 mm in FIBRETEC design, KTL-coated, cl. D 400, 1 m
Product description
RECYFIX NC 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frame, with vertical connection possibility DN/OD 110/160, with ductile iron cover SW 148/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 1000x212x210 mm, item no. 40102
Packaging unit
25

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class D 400 - E 600, channel height ≥ 150 mm

Installation example

Asphalt class D 400 - E 600, channel height ≥ 150 mm

Installation example

Pavement class D 400, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Concrete class C 250 - D 400, as double strand

Installation example

Asphalt class C 250 - D 400, as double strand

Installation example

Concrete class E 600, as double strand

Installation example
