Article No. 40105
RECYFIX NC 200, class D 400
type 01 with ductile iron grate, SW 198/10 mm in FIBRETEC design, KTL-coated, 8-fold screwed, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

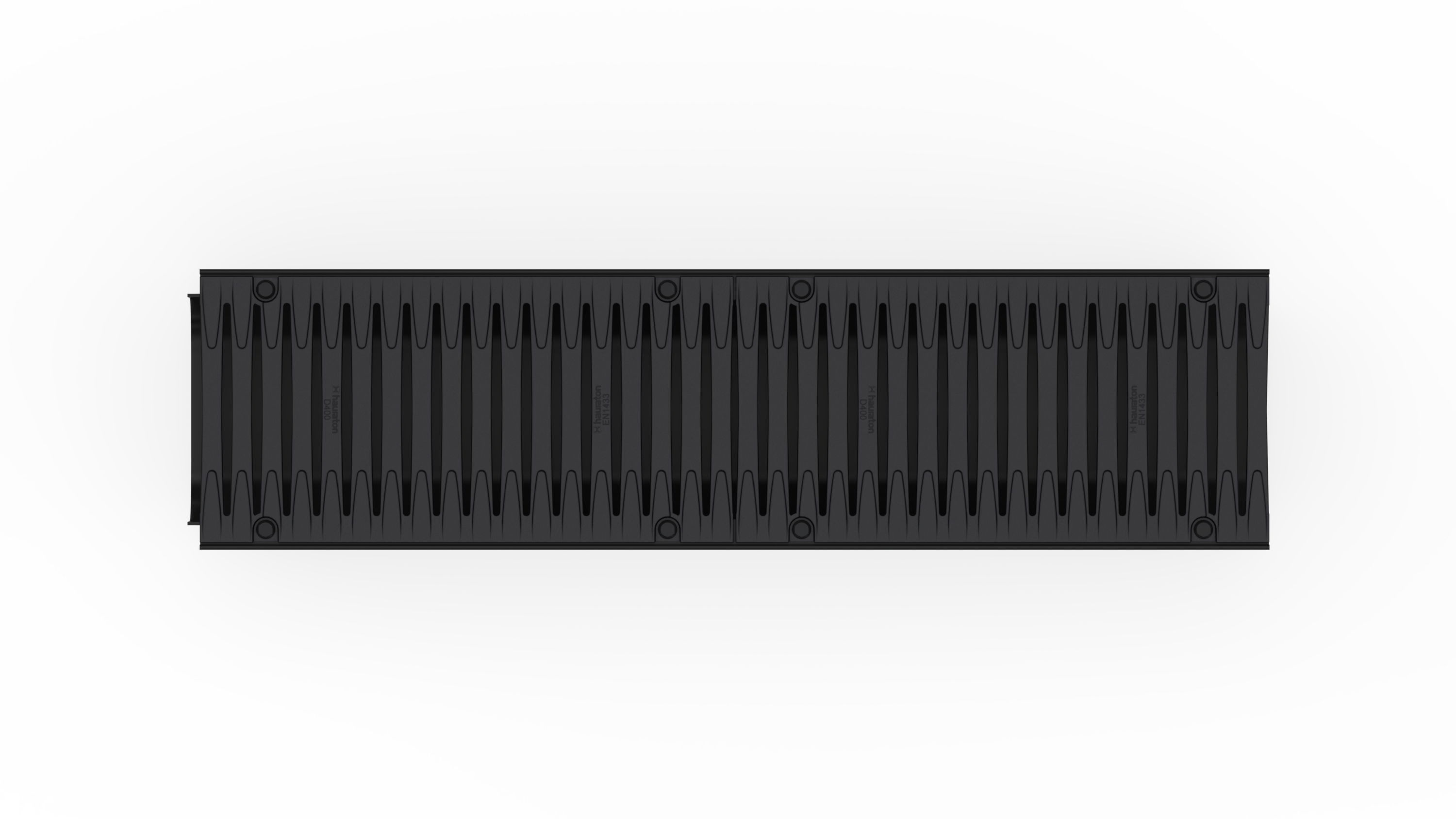

Top view

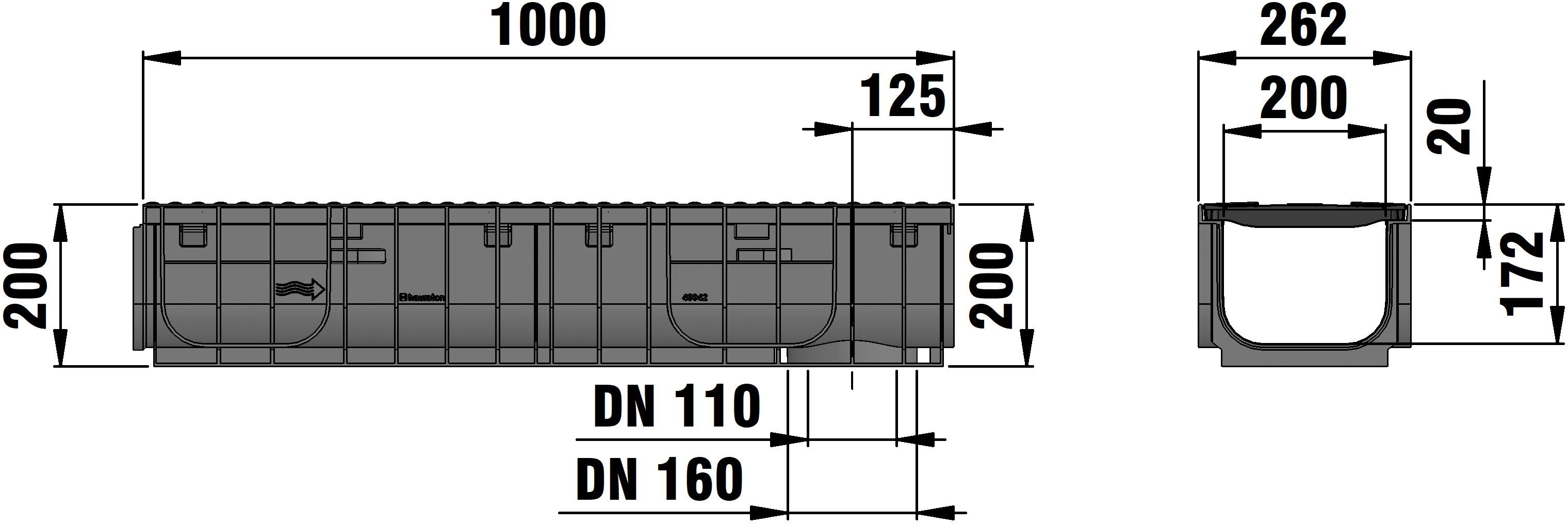

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40105
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
19.60 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
572.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 200 Channel type 010 with ductile iron cover SW 198/10 mm in FIBRETEC design, KTL-coated, cl. D 400, 1 m
Product description
RECYFIX NC 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron cover slot width 198/10 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 8-fold bolting load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 1000x262x200 mm, item no. 40105
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - E 600,
Asphalt class D 400 - E 600,
Pavement class D 400,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
