Back to overview
Article No. 41461

RECYFIX PLUS 100, class C 250

Type 01 with ductile iron cover SW 80/14 mm, black, stainless steel, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

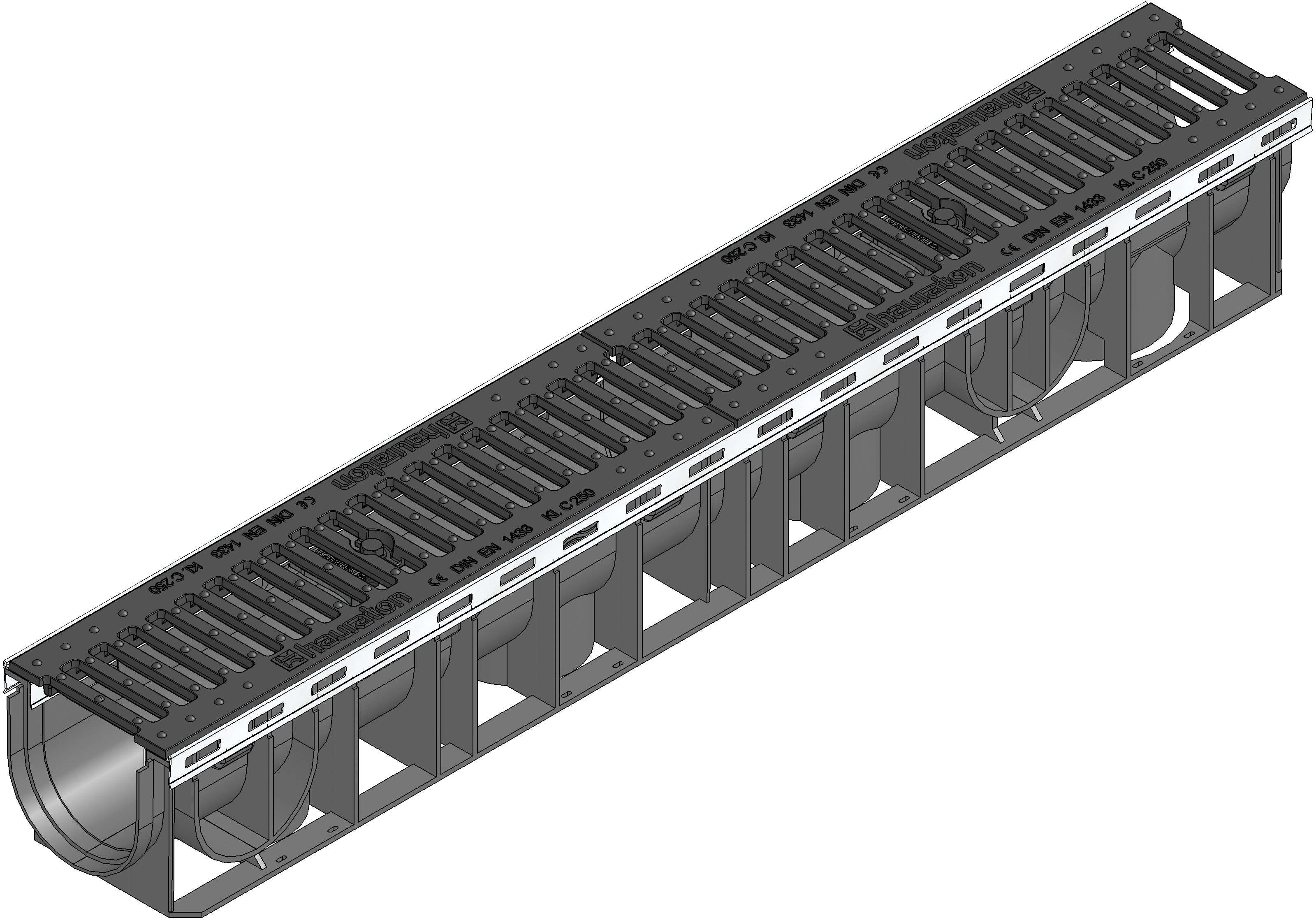

Product image

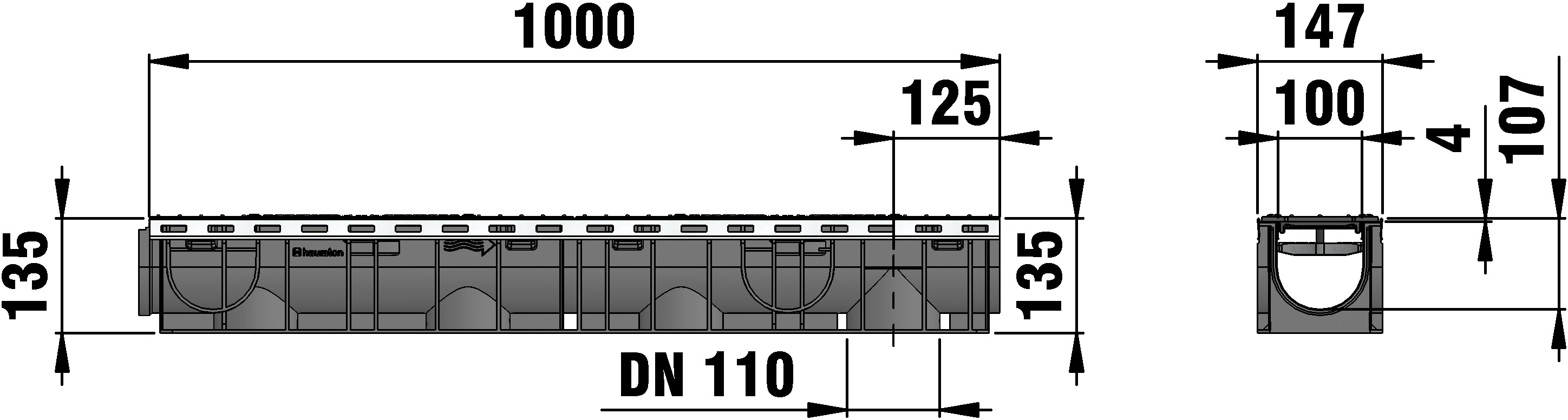

Technical drawing

Drawing (CAD)

Drawing (CAD)

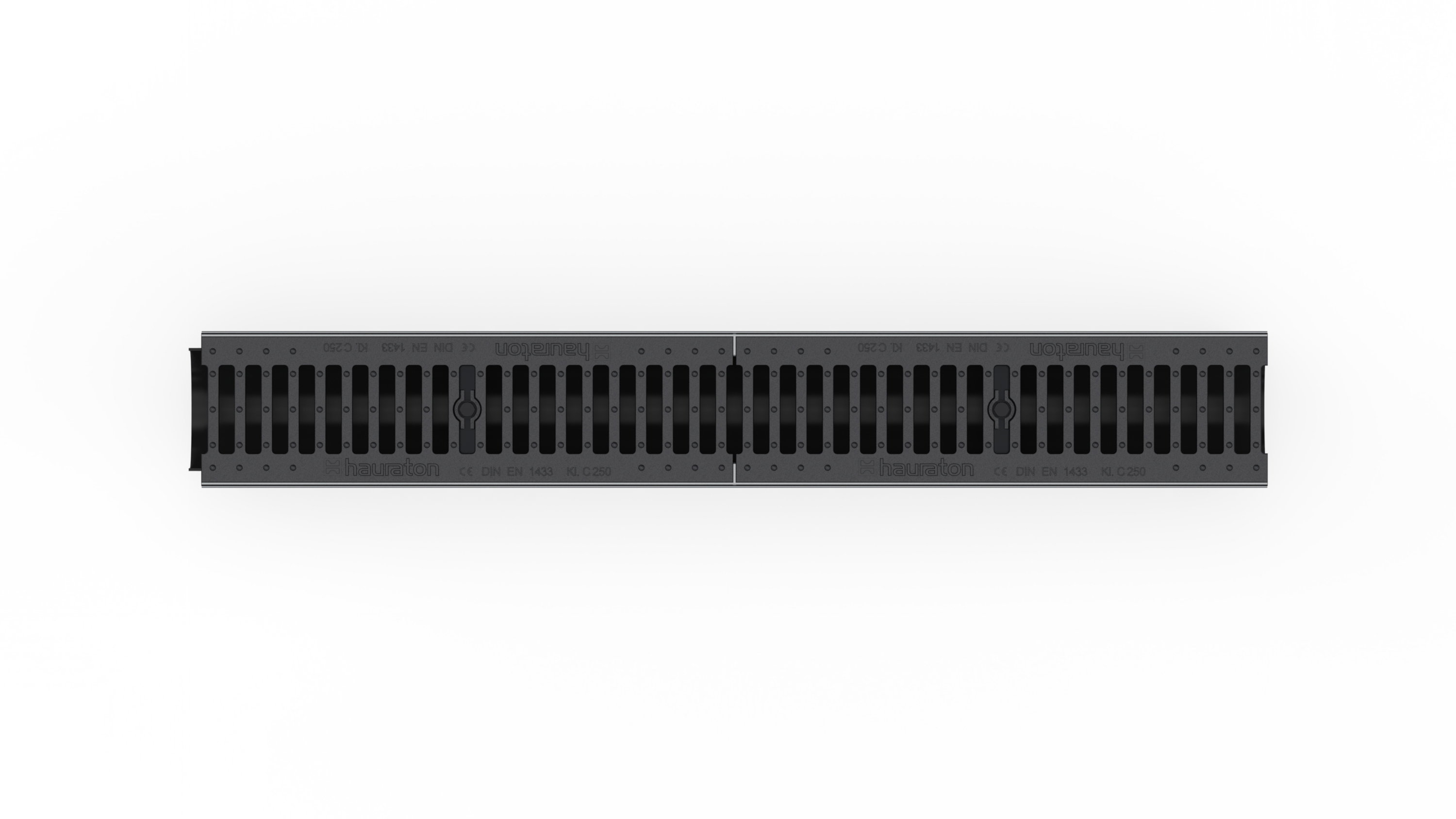

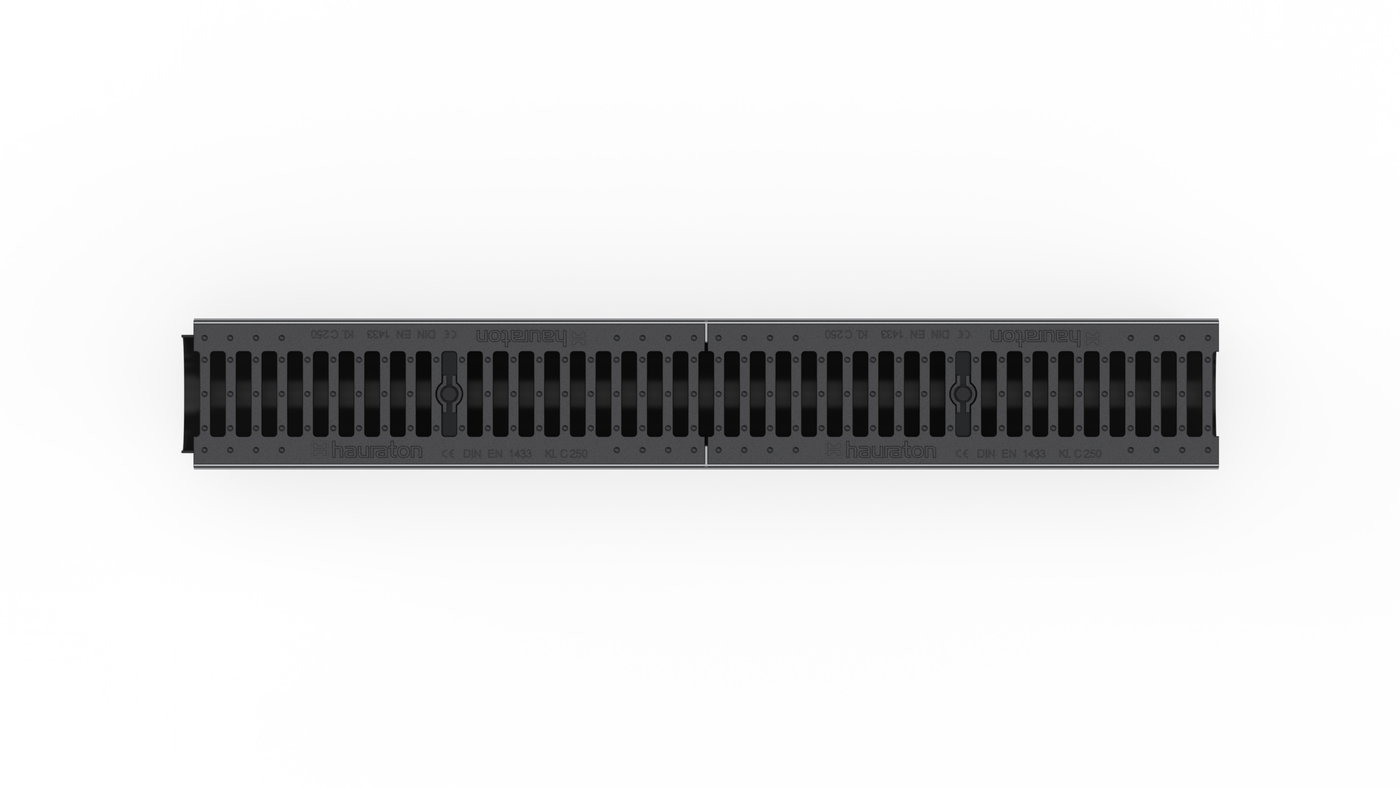

Top view

Data Sheet

Technical information and metrics
Article No.
41461
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
6 mm
Weight
9.10 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301, Steel black galvanised
Intake cross-section
464.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
Stainless steel 1.4301
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PLUS 100 Channel type 01 with edge frames made of stainless steel and ductile iron cover SW 80/14 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 100 type 01 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with vertical connection possibility DN/OD 110, with ductile iron cover SW 80/14 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x147x135 mm, item no. 41461
Packaging unit
49

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - B 125, Type 60, Type 80

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - C 250, channel height ≥ 150 mm

Installation example

Cemented floor class A 15 - C 250,

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, Type 60, Type 80

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, channel height ≥ 134 mm

Installation example

Asphalt class C 250, channel height ≥ 134 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 134 mm

Installation example

Concrete class C 250, channel height ≥ 134 mm

Installation example

Pavement class C 250, channel height ≥ 134 mm

Installation example

Installation instructions
Installation instructions
