Article No. 47085

RECYFIX PRO 100, class C 250

Type 01 with reinforced slotted cover, SW 80/10 mm, stainless steel, locked, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

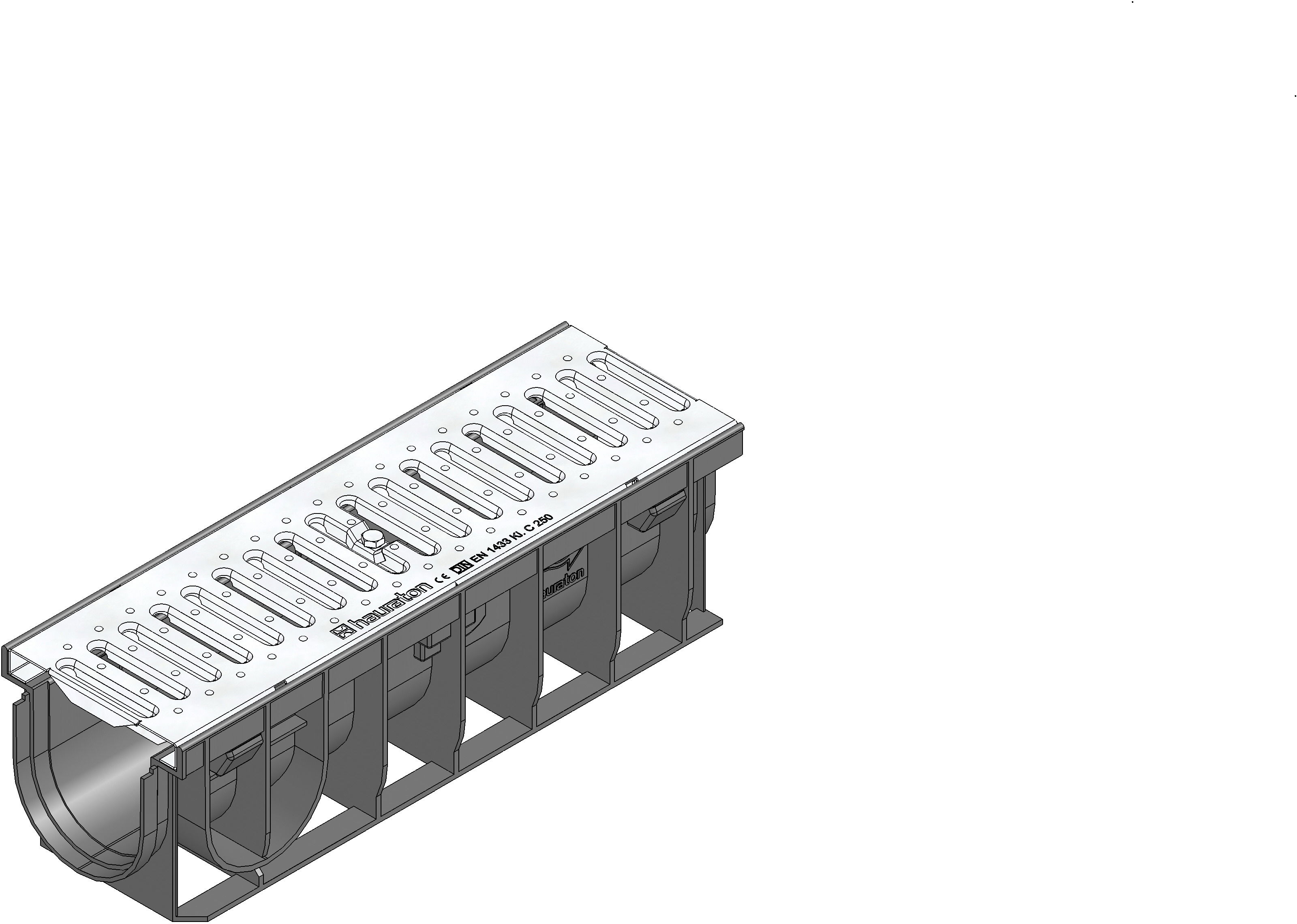

Product image

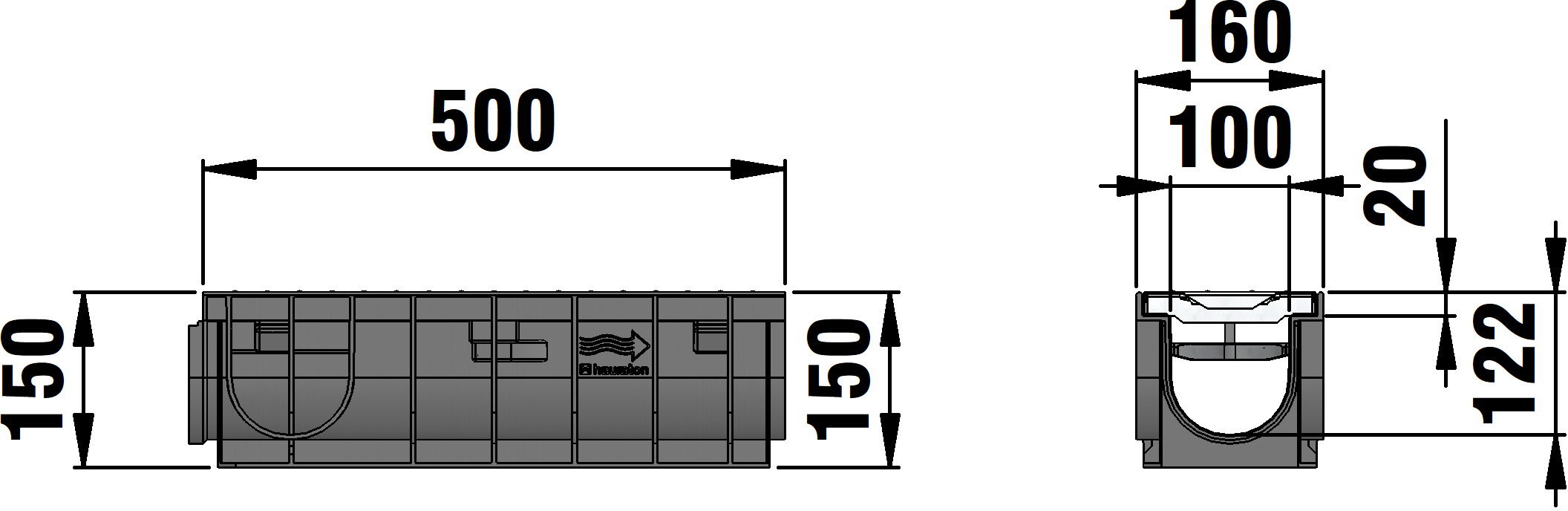

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
47085
Length
500 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
3.60 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
285.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with reinforced slotted cover SW 80/10 mm, stainless steel, cl. C 250 , locked, 0.5 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with reinforced slotted cover SW 80/10 mm, stainless steel CNS 1.4301, with locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x160x150 mm, item no. 47085
Packaging unit
98

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
