Article No. 47468

RECYFIX PRO 100, class C 250

Type 75, with FIBRETEC design slotted cover SW 110/9 mm, in the colour Slate, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

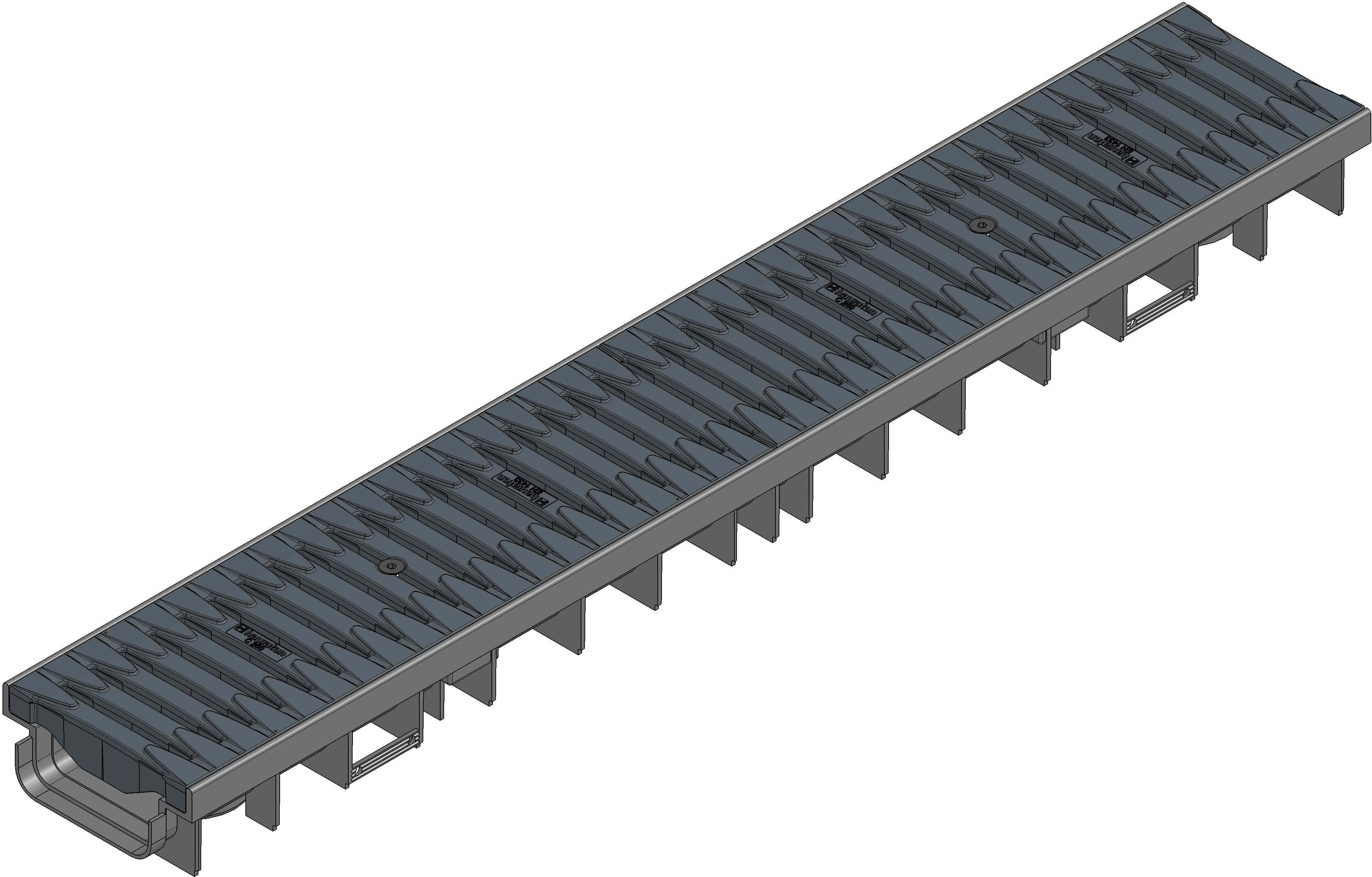

Product image

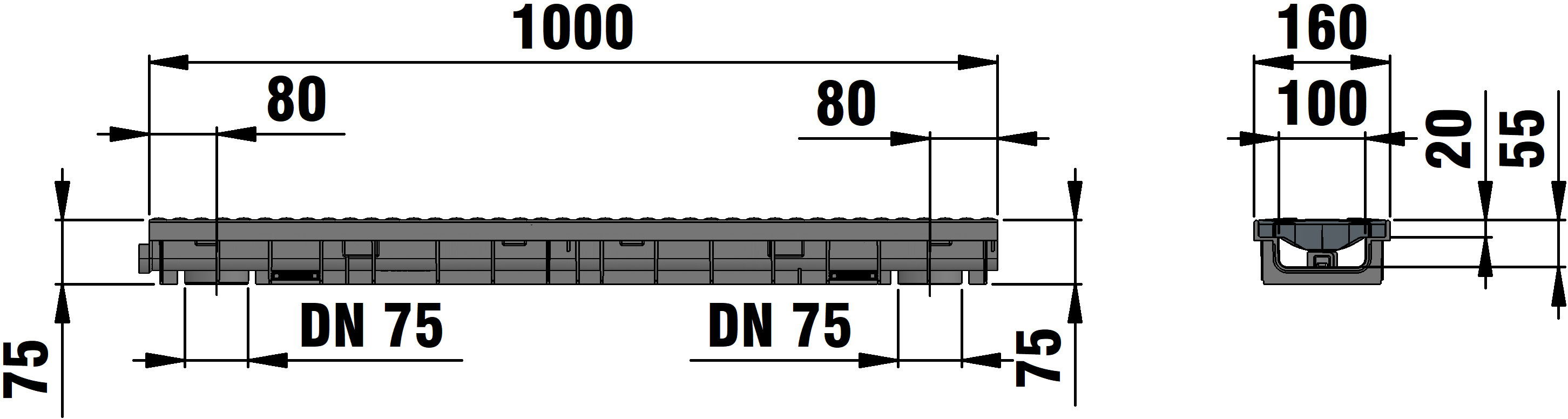

Technical drawing

Drawing (CAD)

Drawing (CAD)

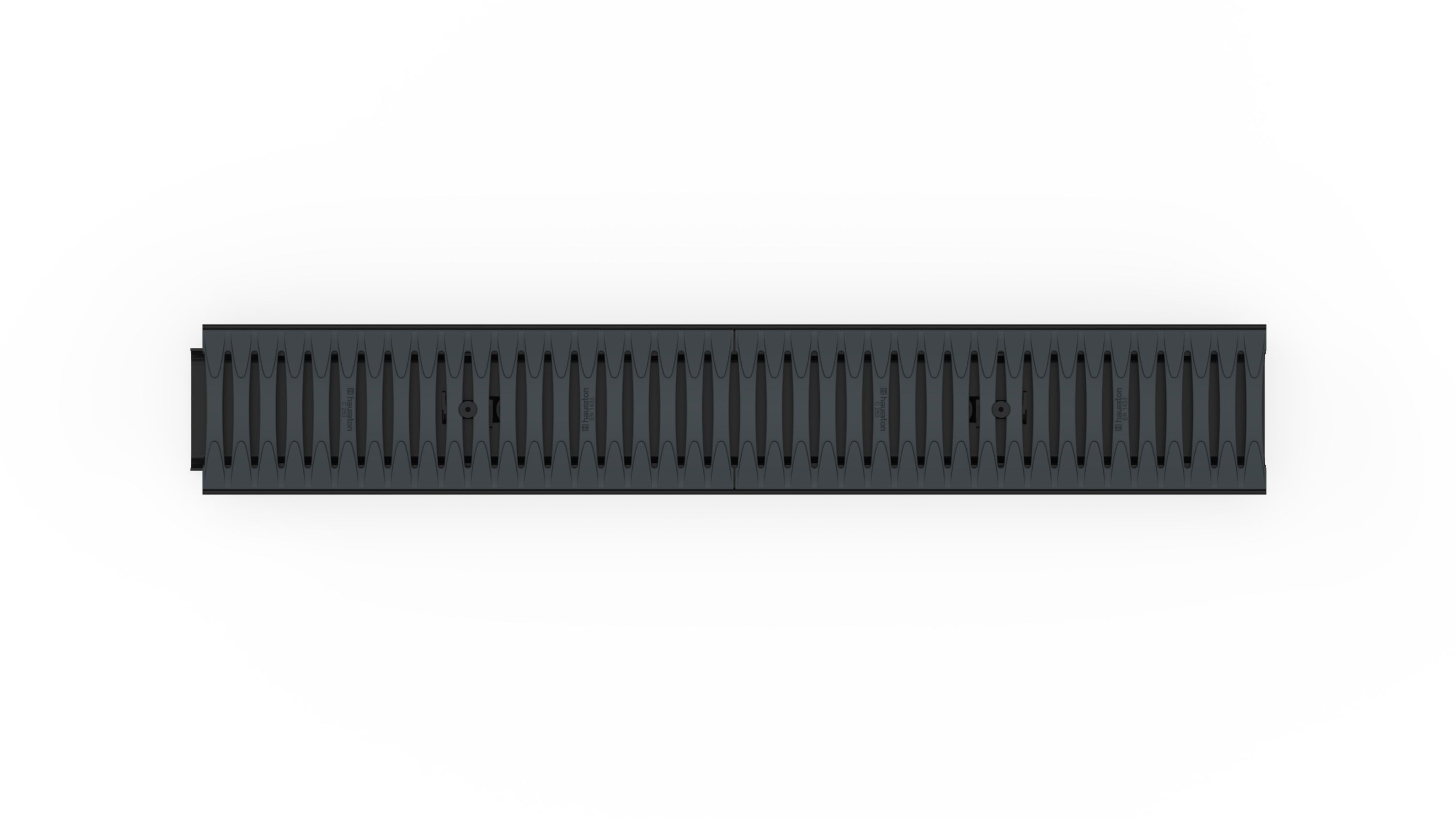

Top view

Data Sheet

Technical information and metrics
Article No.
47468
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
3.33 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 75 with integrated edge frames, with FIBRETEC Design slotted cover SW 110/9 mm, in the colour Slate, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 75 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, with FIBRETEC design slotted cover SW 110/9 mm, made of fibre-reinforced polyamide, in the colour Slate, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x160x75 mm, item no. 47468
Packaging unit
84

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example
