Article No. 47181
RECYFIX PRO 150, class A 15
Type 01 with longitudinal cover Filigree, bar distance 8 mm, stainless steel, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

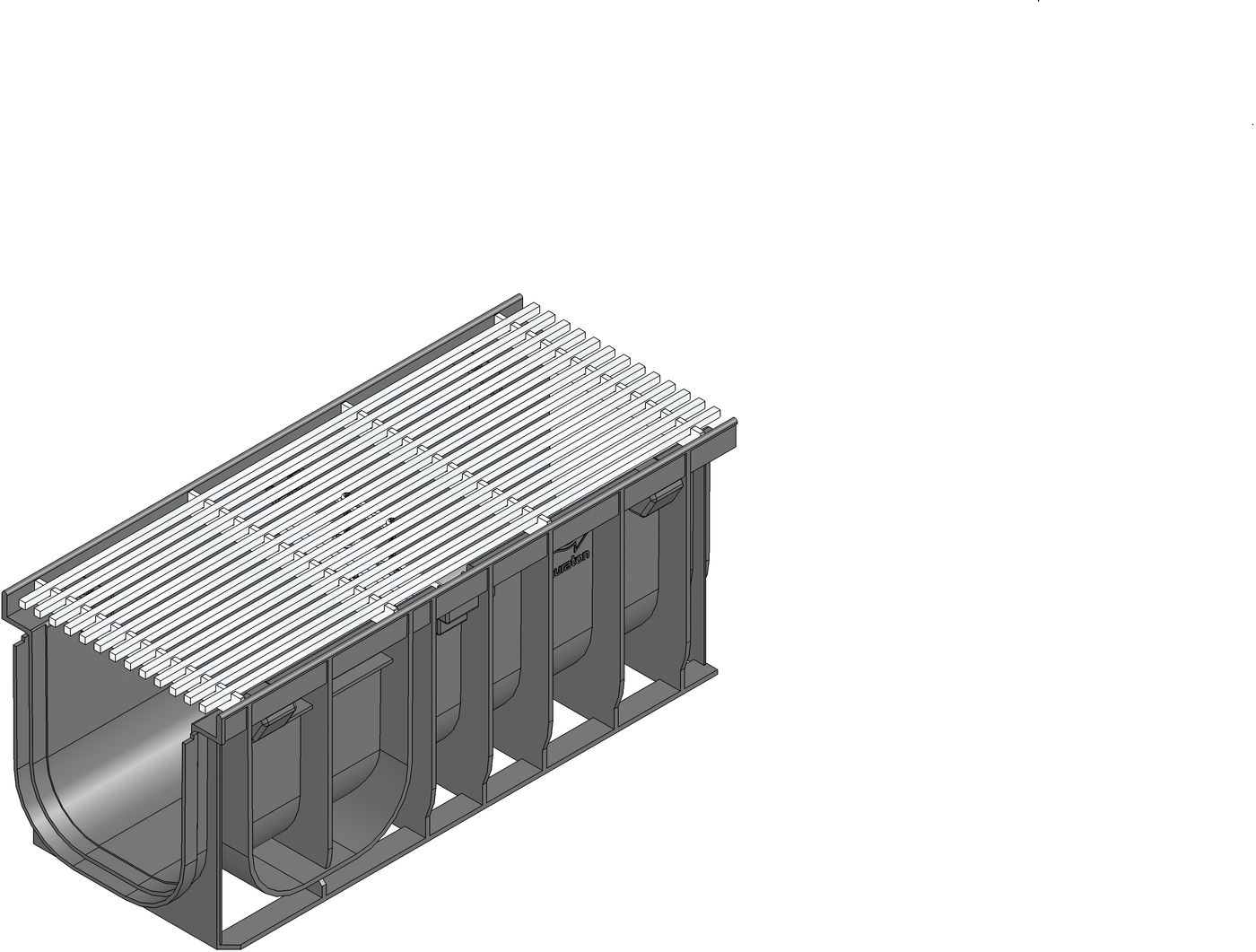

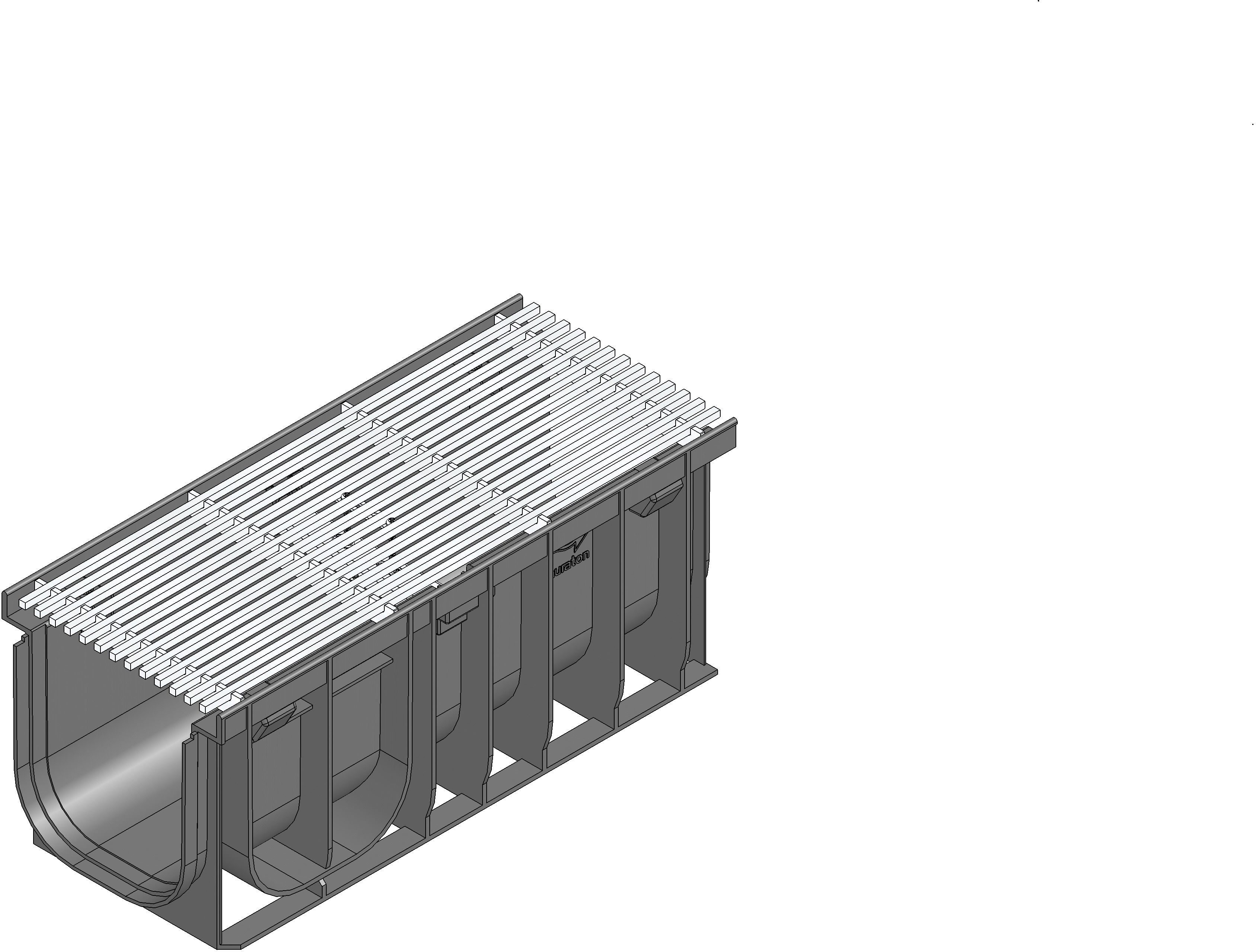

Product image

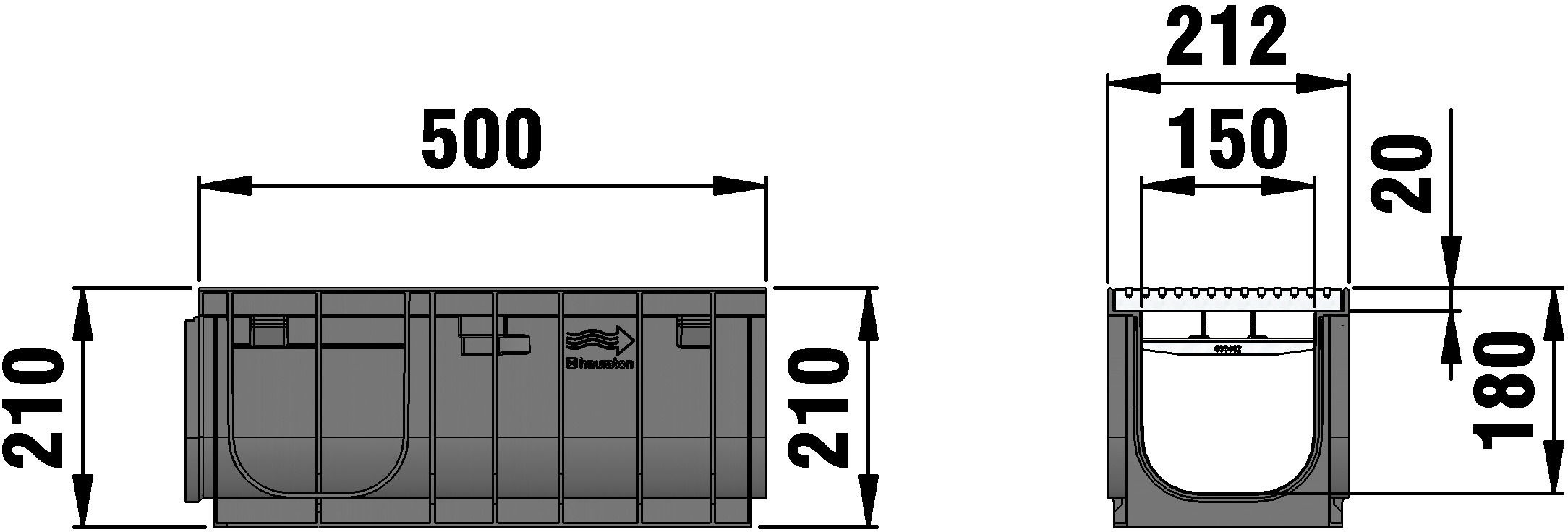

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47181
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
3.51 kg
Material
recycled, modified Polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
1156.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Sales text
RECYFIX PRO 150 Channel type 01 with integrated edge frames, with longitudinal cover Filigree, bar distance 8 mm, stainless steel, cl. A 15, locked, 0.5 m
Product description
RECYFIX PRO 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with longitudinal cover Filigree bar distance 8 mm, stainless steel CNS 1.4301, with locking, load class A 15 according to EN 1433, LxWxH 500x212x210 mm, item no. 47181
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
