Article No. 47148
RECYFIX PRO 150, class B 125
Type 01 with mesh cover, MS 30/10 mm, stainless steel, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

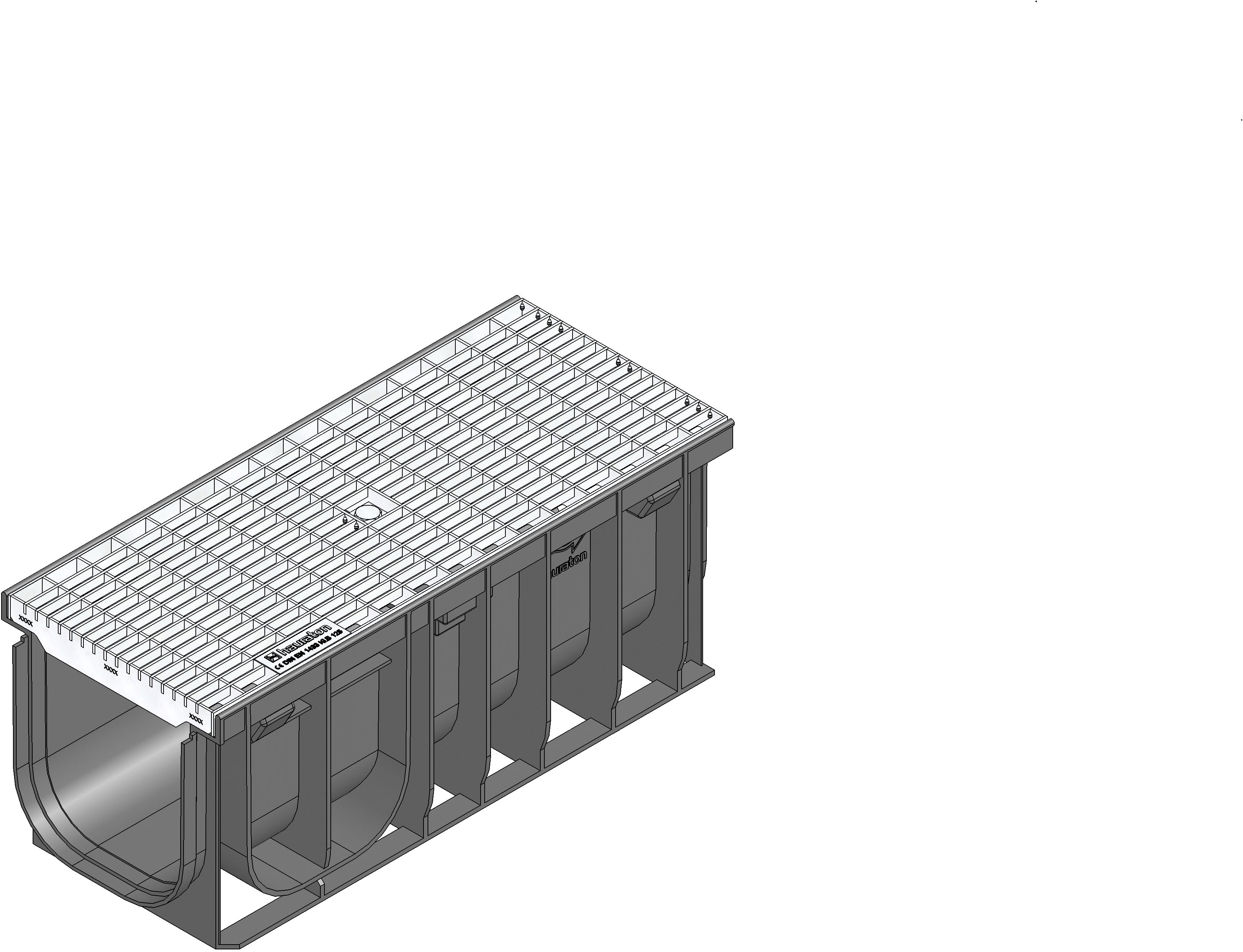

Product image
Technical drawing
Drawing (CAD)

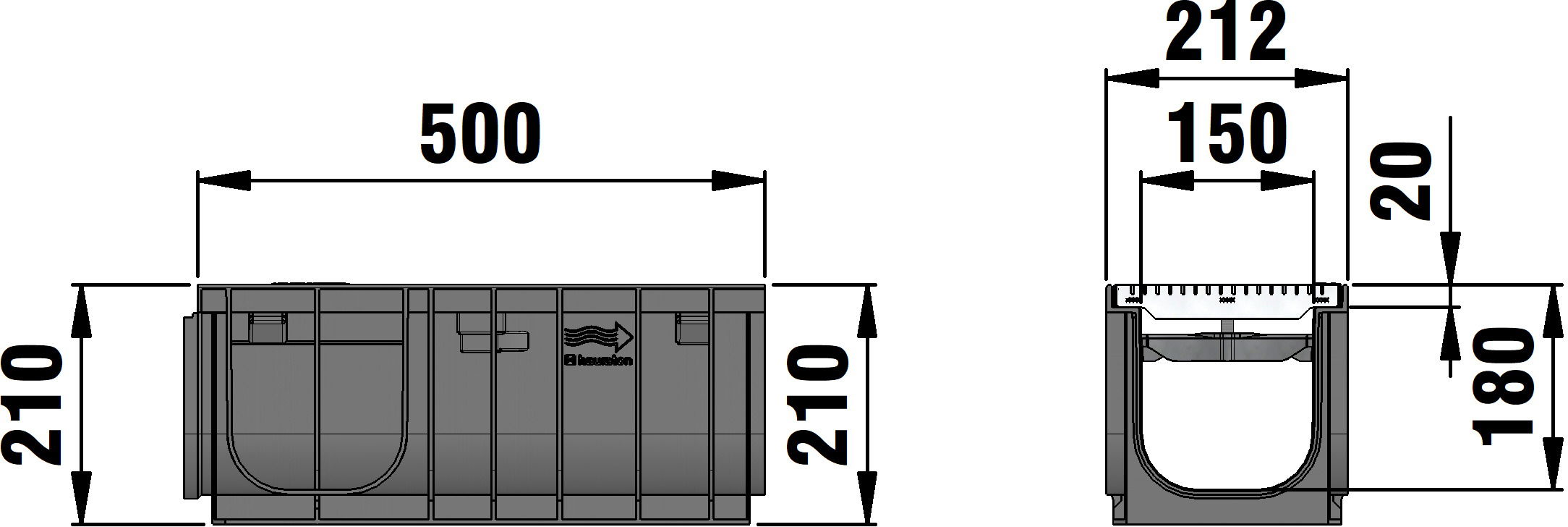

Drawing
Data Sheet
Technical information and metrics
Article No.
47148
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
4.30 kg
Material
recycled, modified Polypropylene, reinforced Polyamide, Stainless steel 1.4301
Intake cross-section
1468.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 150 Channel type 01 with integrated edge frames, with mesh cover MS 30/10 mm, stainless steel, cl. B 125, locked, 0.5 m
Product description
RECYFIX PRO 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with mesh cover MS 30/10 mm, stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x212x210 mm, item no. 47148
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
