Article No. 47161

RECYFIX PRO 150, class D 400

Type 01 with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, locked, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

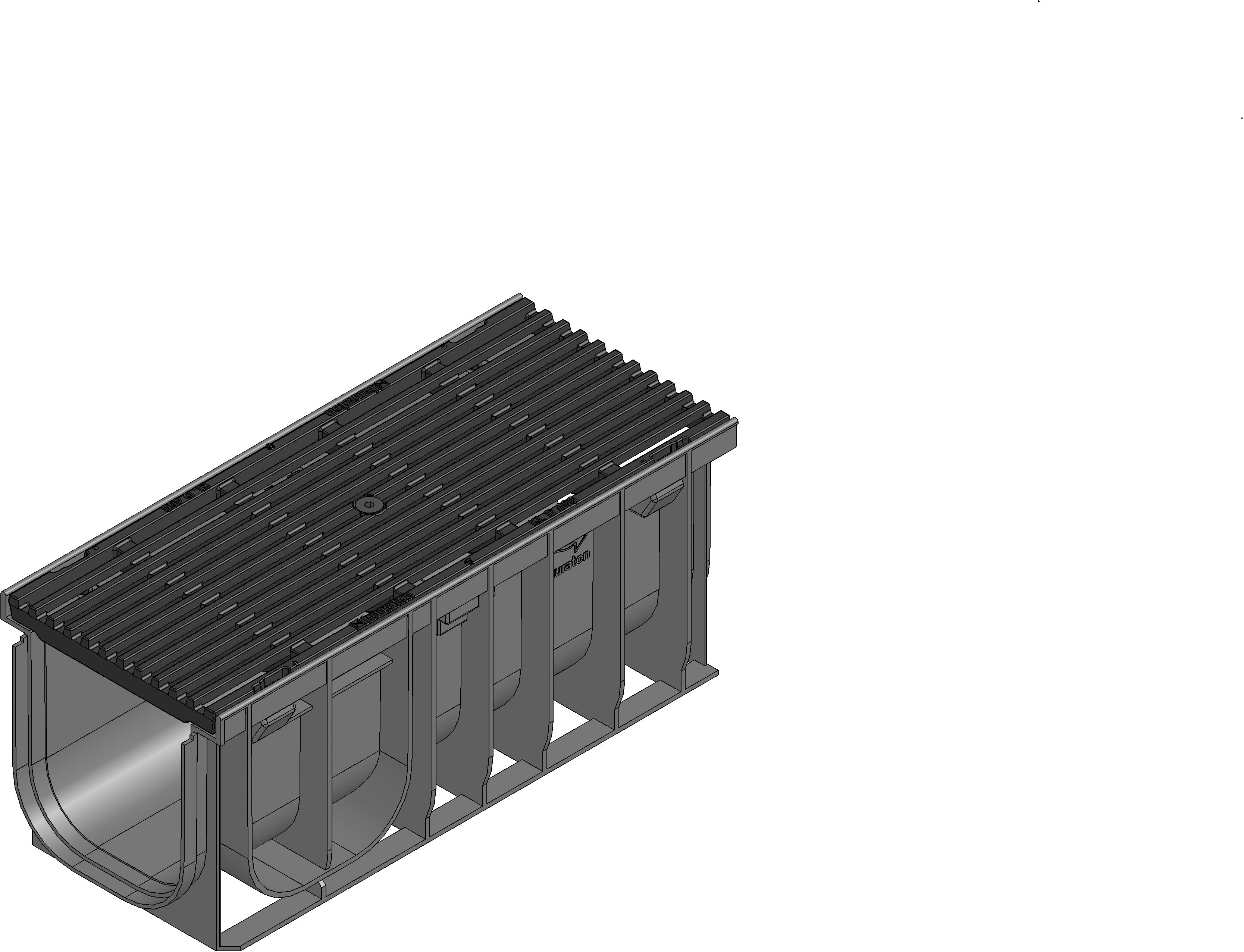

Product image

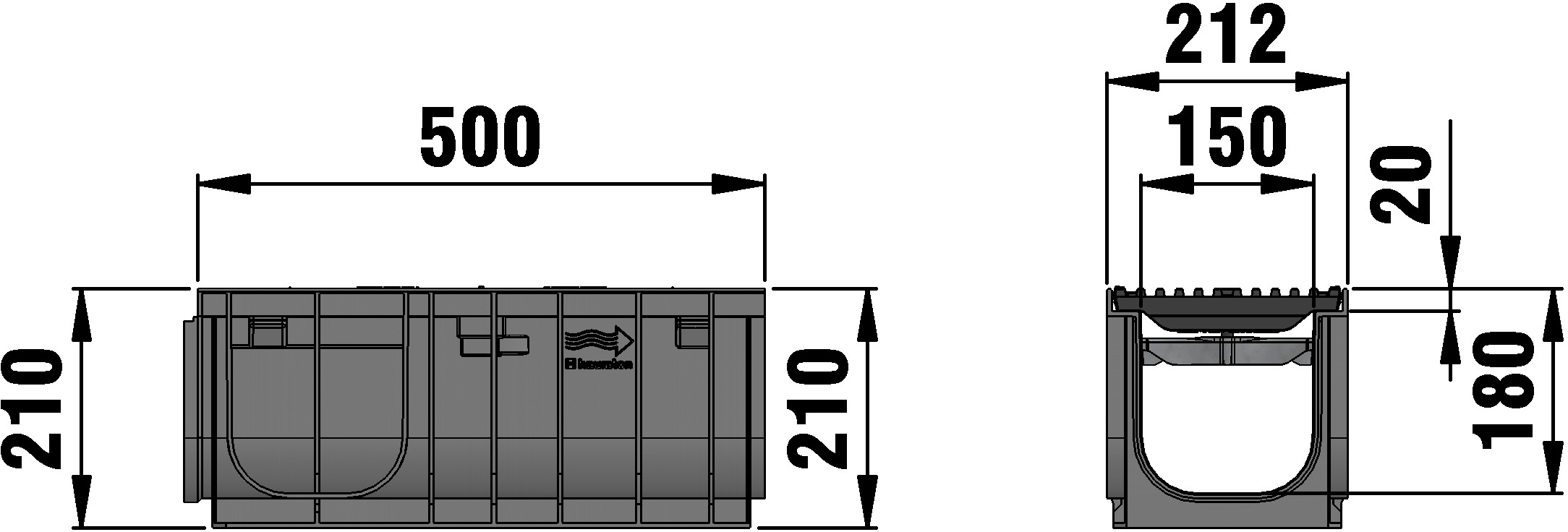

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
47161
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
7.59 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
740.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 150 Channel type 01 with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, KTL-coated, cl. D 400, locked, 0.5 m
Product description
RECYFIX PRO 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with longitudinal ductile iron cover bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x212x210 mm, item no. 47161
Packaging unit
50

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Asphalt class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, Type 115

Installation example

Pavement class A 15 - C 250,

Installation example

Pavement class C 250, Type 115

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Asphalt class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand
