Article No. 47186
RECYFIX PRO 200, class A 15
Type 115 with longitudinal cover Filigree, bar distance 8 mm, stainless steel, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

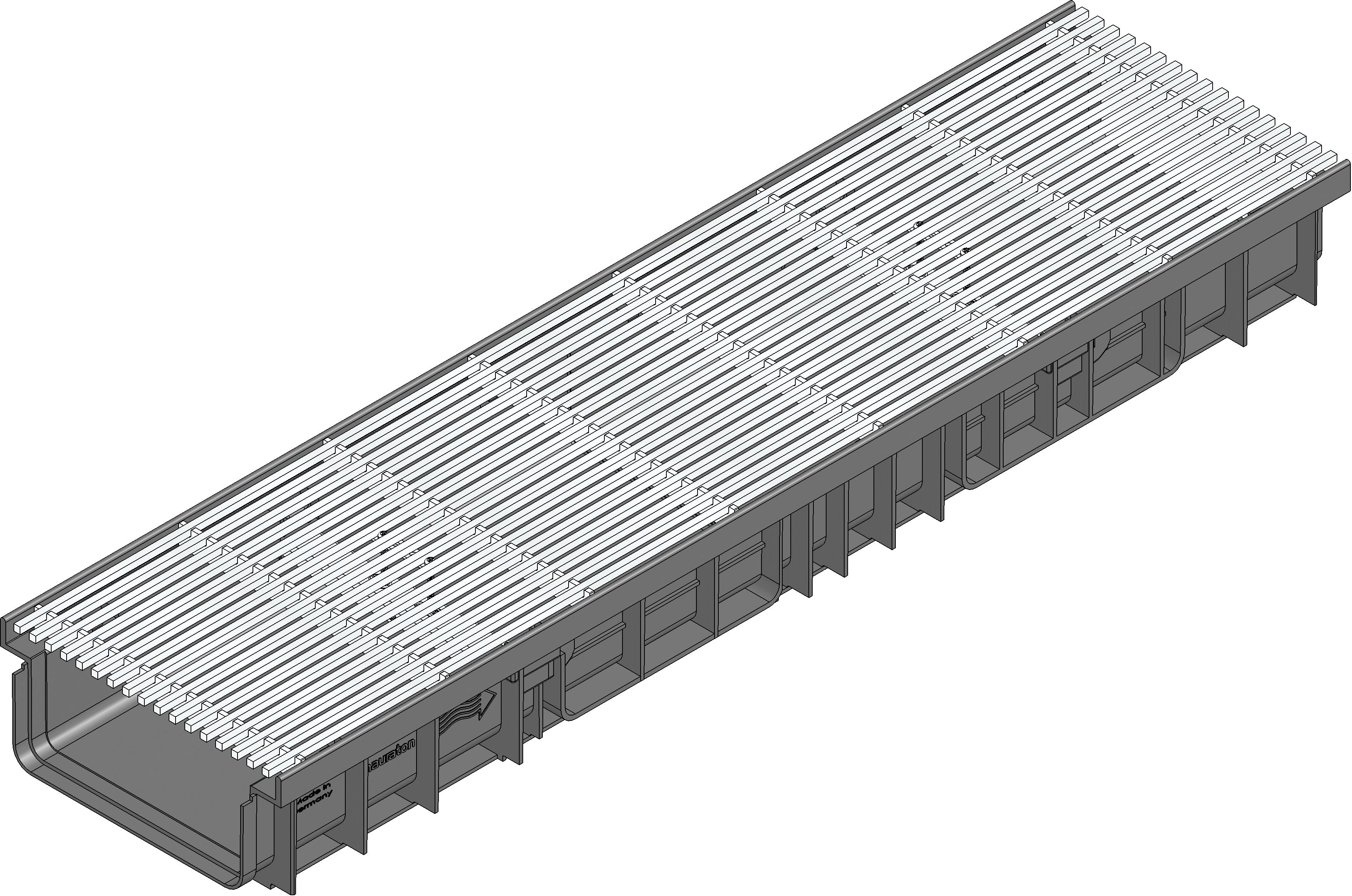

Product image

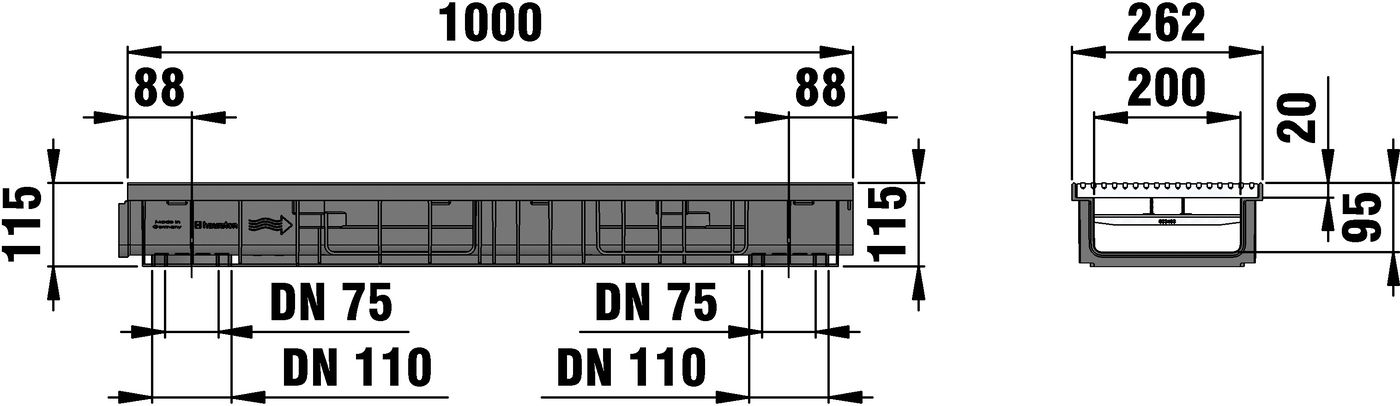

Technical drawing
Drawing (CAD)
Drawing

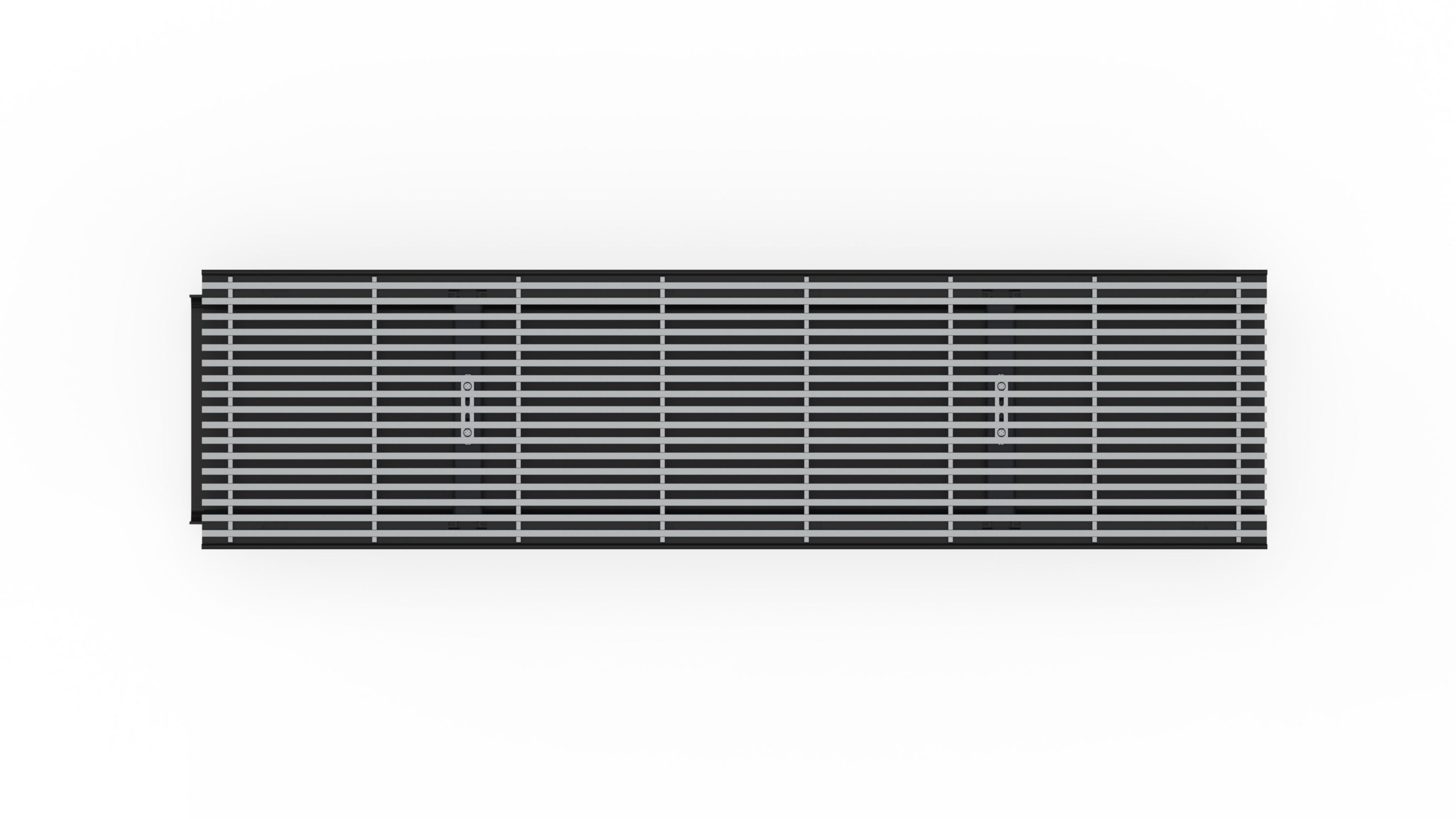

Top view
Data Sheet
Technical information and metrics
Article No.
47186
Length
1000 mm
Width
262 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
8.10 kg
Material
recycled, modified Polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
1410.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Sales text
RECYFIX PRO 200 Channel type 115 with integrated edge frames, with longitudinal cover Filigree, bar distance 8 mm, stainless steel , cl. A 15, locked, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, with longitudinal cover Filigree bar distance 8 mm, stainless steel CNS 1.4301, with locking, load class A 15 according to EN 1433, LxWxH 1000x262x115 mm, item no. 47186
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
