Article No. 41234
RECYFIX STANDARD 100, class C 250
Type 60 with ductile iron cover, SW 80/6 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

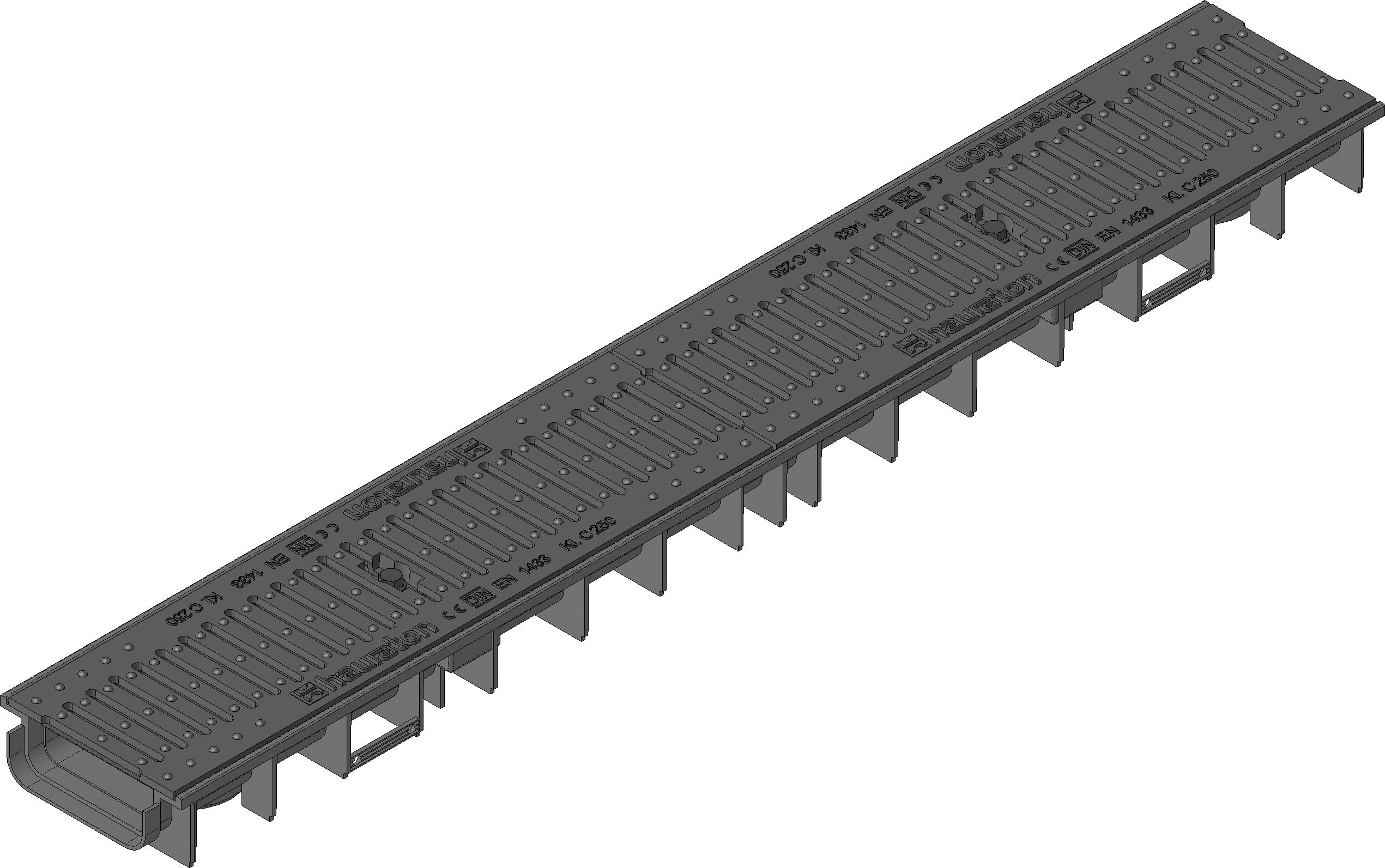

Product image
Technical drawing
Drawing
Drawing (CAD)

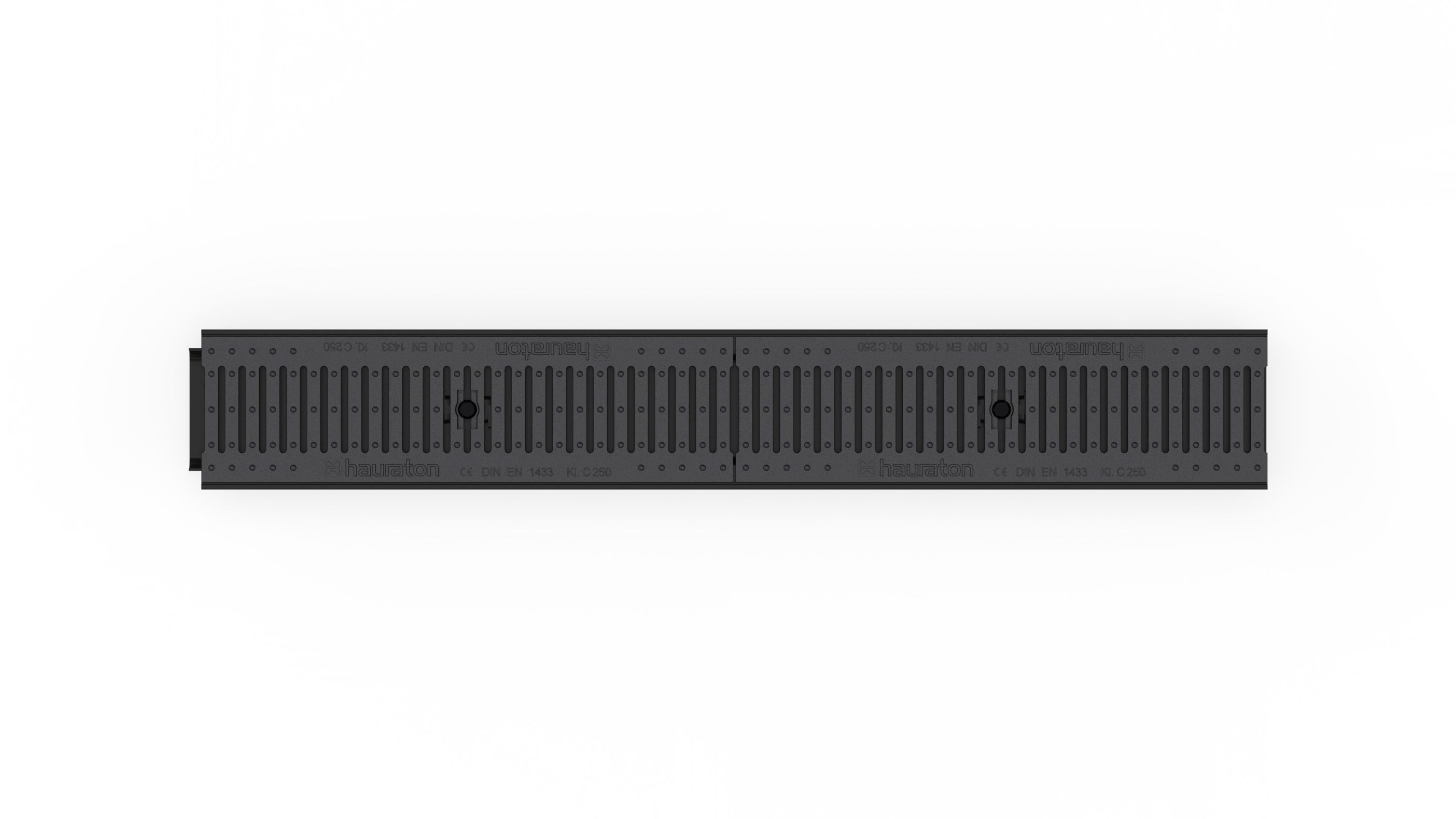

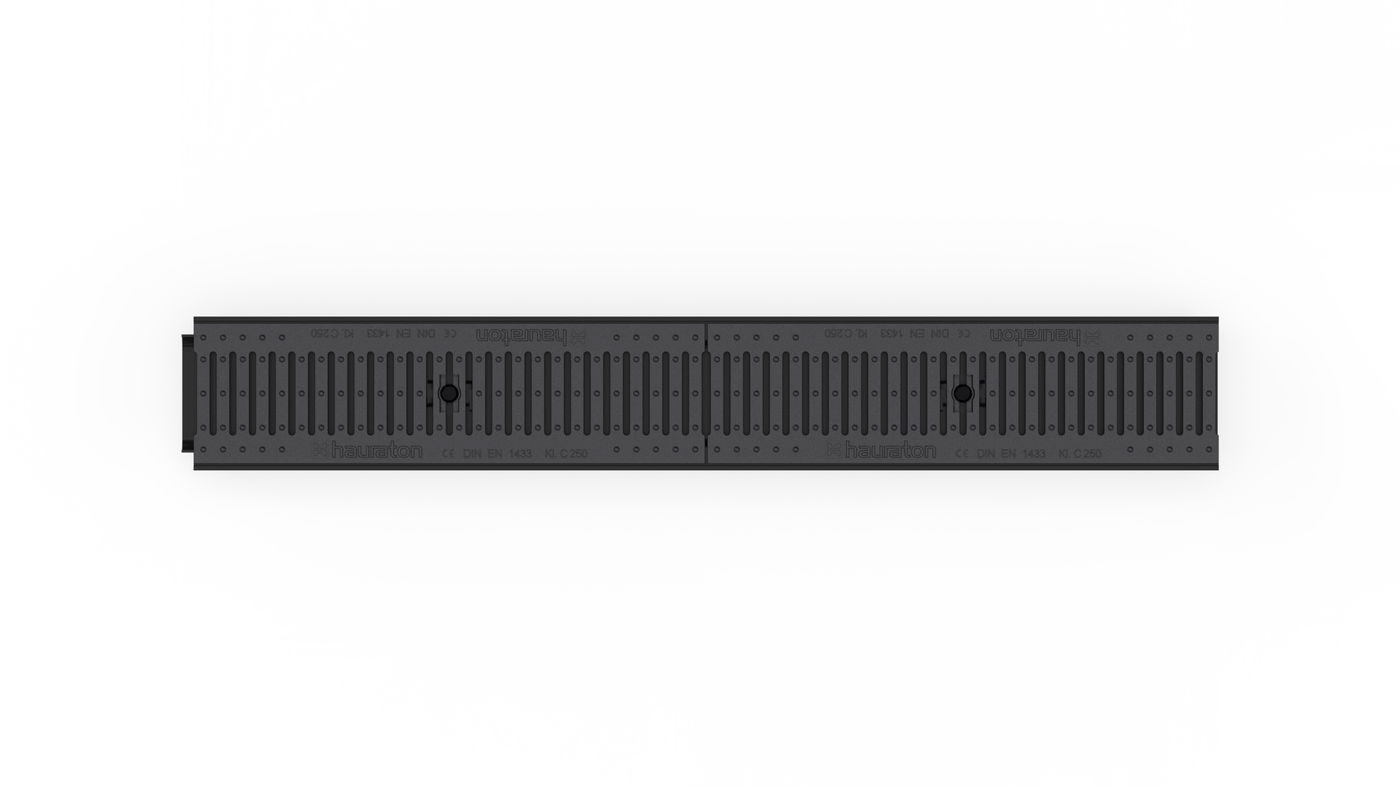

Top view
Data Sheet
Technical information and metrics
Article No.
41234
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
6 mm
Weight
7.39 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 Channel type 60 with ductile iron cover SW 80/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 100 type 60 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75, with ductile iron cover SW 80/6 mm, made of spheroidal ductile iron GJS 500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x150x60 mm, item no. 41234
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
