Article No. 10307
STEELFIX SLOT D, Construction height 180 mm, neck height 130 mm, class A 15
Type 180, asymmetric, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

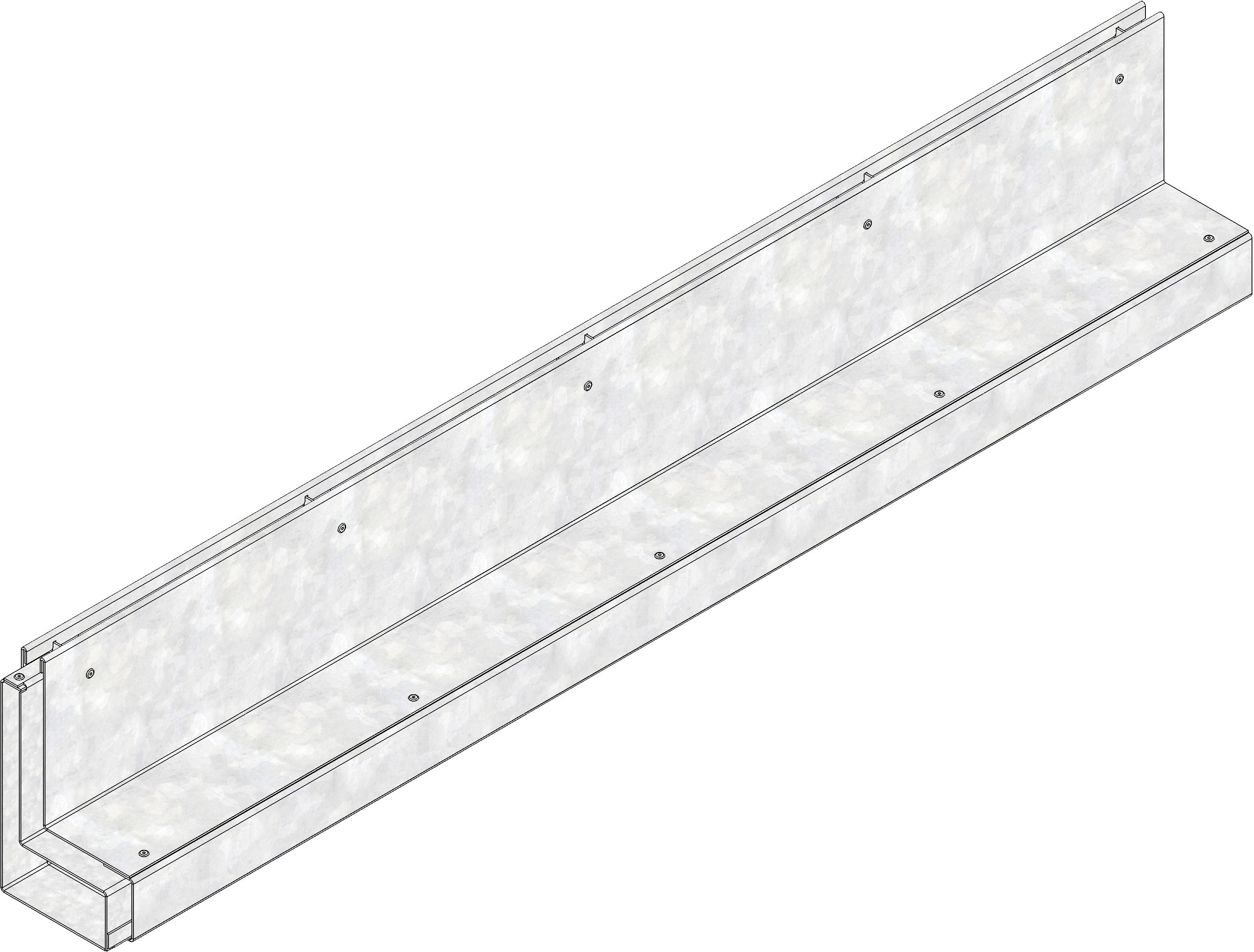

Product image
Technical drawing
Drawing (CAD)

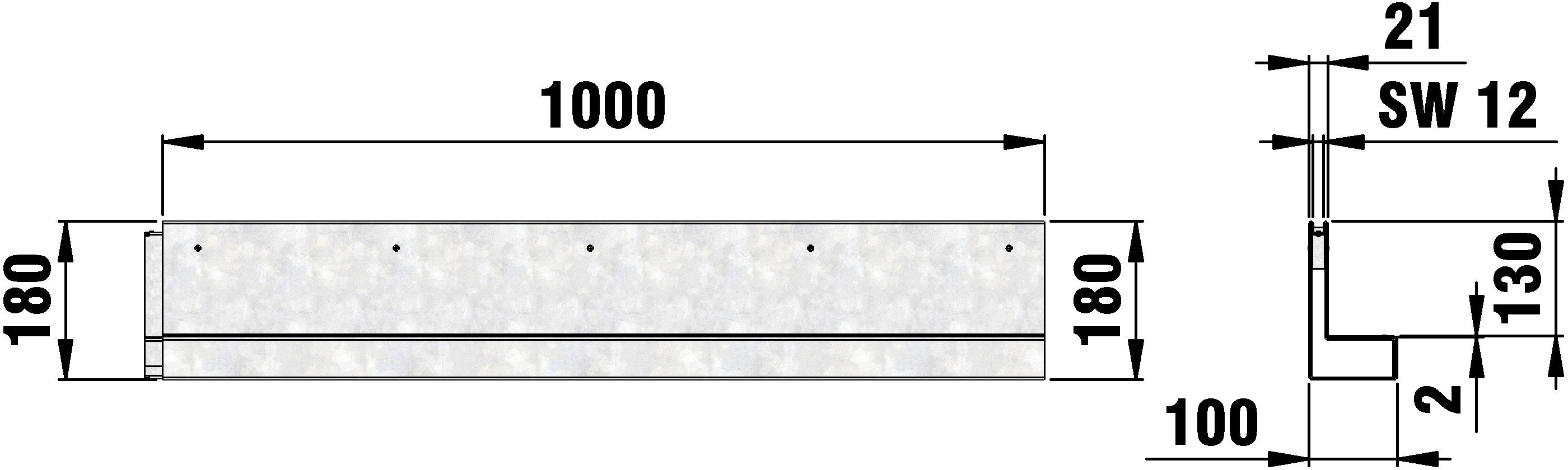

Drawing
Data Sheet
Technical information and metrics
Article No.
10307
Length
1000 mm
Width
100 mm
Height
180 mm
Weight
7.02 kg
Material
strip galvanized steel
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
100
Internal channel cross-section
-
Fall
-
Inlet opening
12
Type according to DIN EN 1433
M
Sales text
STEELFIX SLOT 100 type 180, SW 12 mm, neck height 130 mm, galvanised, asymmetric, cl. A 15, with connector, 1 m
Product description
STEELFIX SLOT 100 type 180, slot width 12 mm, neck height 130 mm, asymmetric, made of galvanised steel, with connector, load class A 15, LxWxH 1000x100x180 mm, item no. 10307
Packaging unit
-
Tender Texts
Installation example
Pavement / large-size slab class A 15, STEELFIX SLOT D
