Article No. 10308
STEELFIX SLOT D, Construction height 180 mm, neck height 130 mm, class A 15
Type 180, asymmetric, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

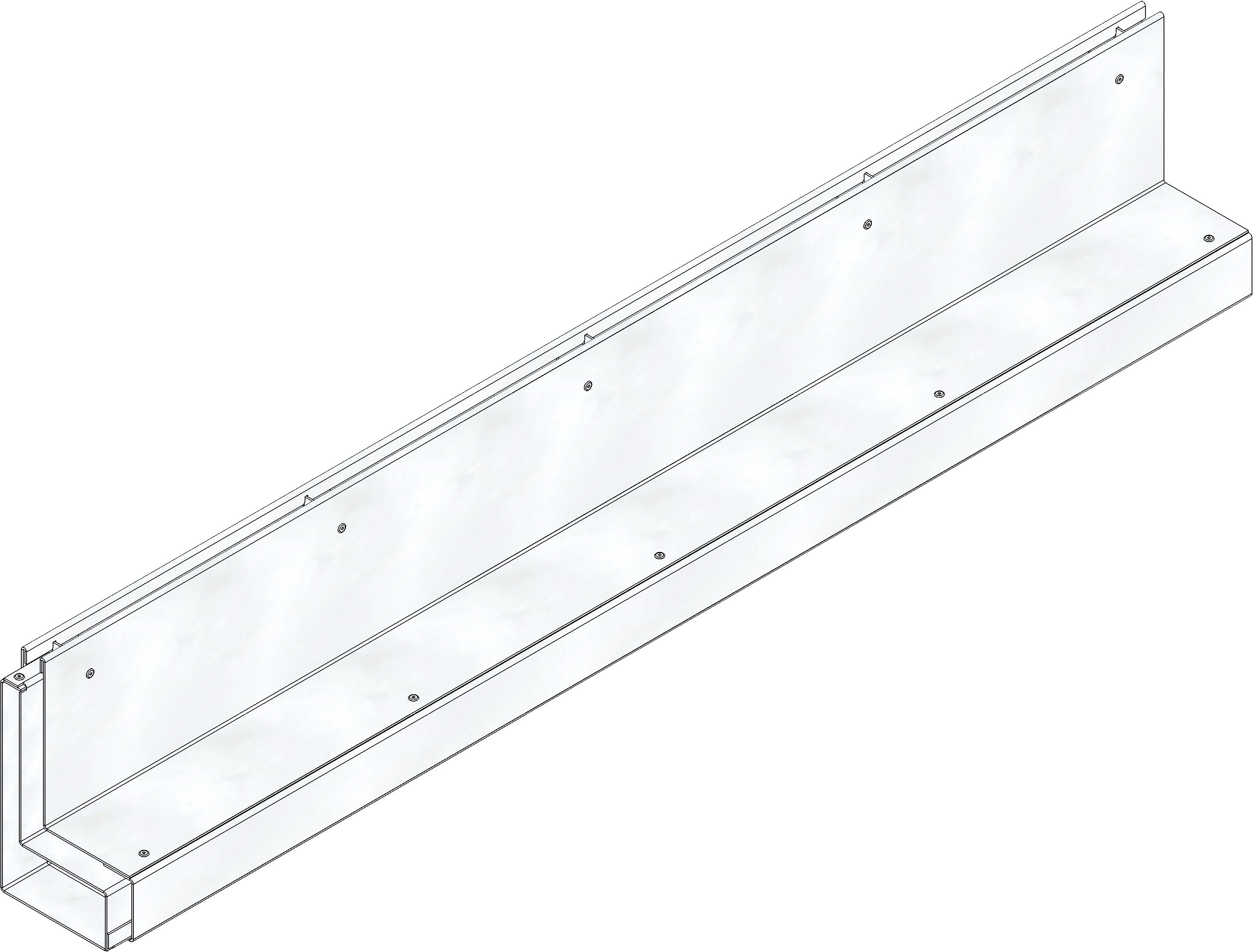

Product image

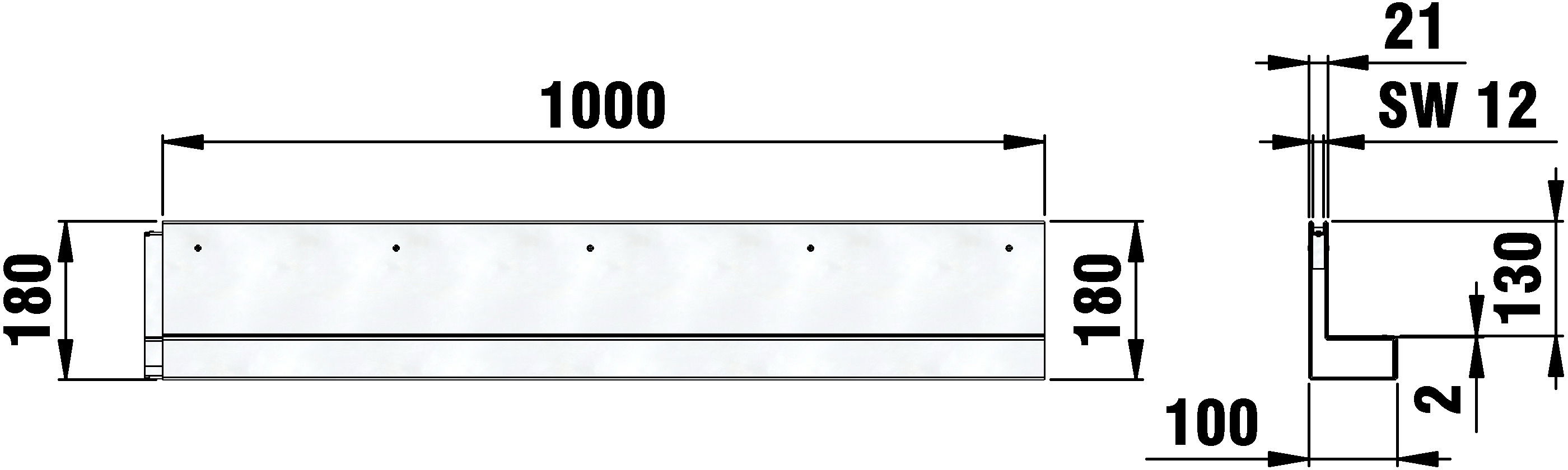

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10308
Length
1000 mm
Width
100 mm
Height
180 mm
Weight
7.19 kg
Material
Stainless steel 1.4301
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
100
Internal channel cross-section
-
Fall
-
Inlet opening
12
Type according to DIN EN 1433
M
Sales text
STEELFIX SLOT 100 type 180, SW 12 mm, neck height 130 mm, stainless steel, asymmetric, cl. A 15, with connector, 1 m
Product description
STEELFIX SLOT 100 type 180, slot width 12 mm, neck height 130 mm, asymmetric, made of stainless steel CNS 1.4301, with connector, load class A 15, LxWxH 1000x100x180 mm, item no. 10308
Packaging unit
-
Tender Texts
Installation example
Pavement / large-size slab class A 15, STEELFIX SLOT D
