Article No. 69061
STEELFIX REGULAR 115
Longitudinal cover, bar distance 12 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

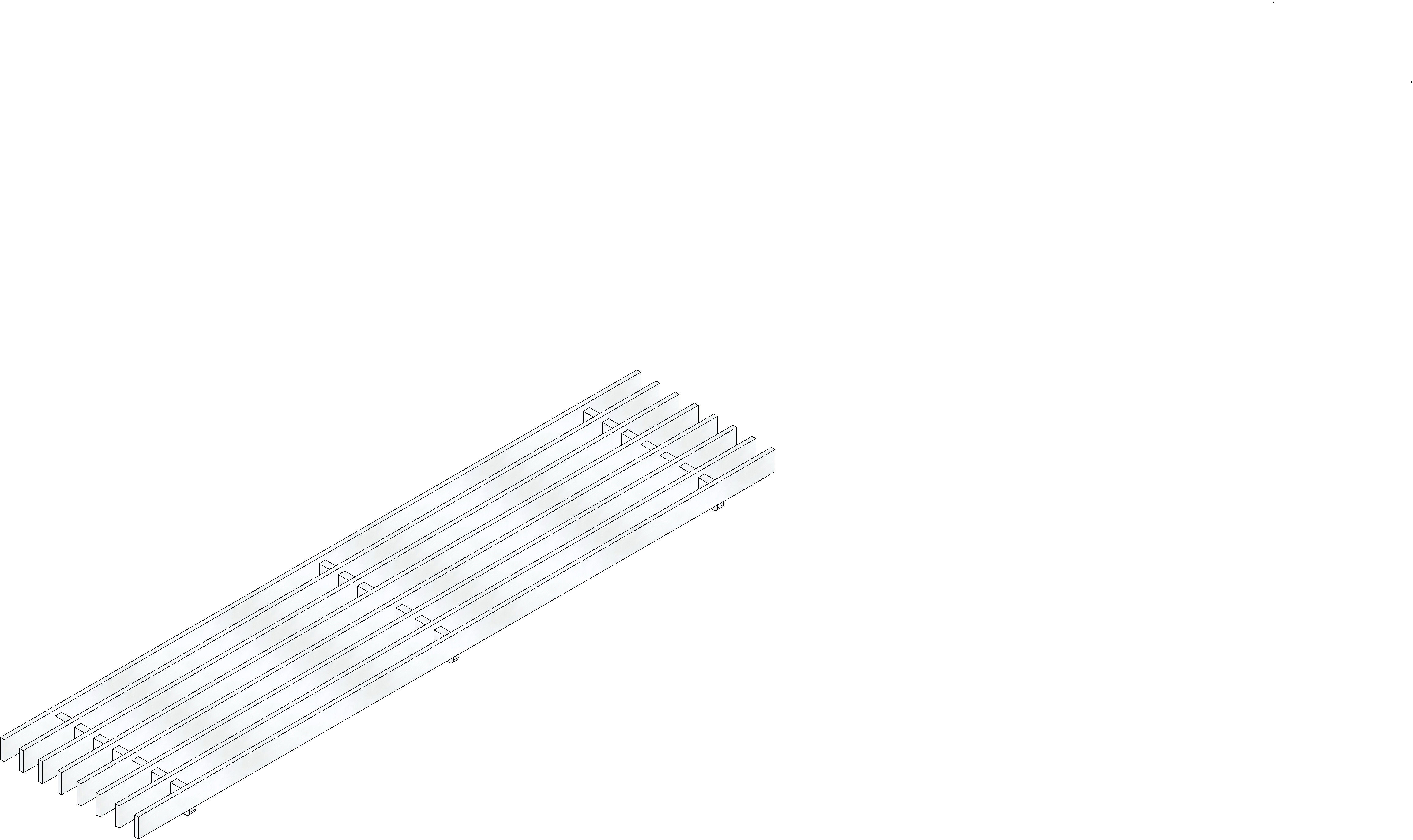

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69061
Length
500 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.59 kg
Material
Stainless steel 1.4301
Intake cross-section
811.0 cm²/m
Nominal size
115
Inlet opening
0
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover bar distance 9 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 115, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 115 -Longitudinal cover bar distance 12 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 500 mm, item no. 69061
Packaging unit
-
