Article No. 33395
STEELFIX REGULAR 115
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

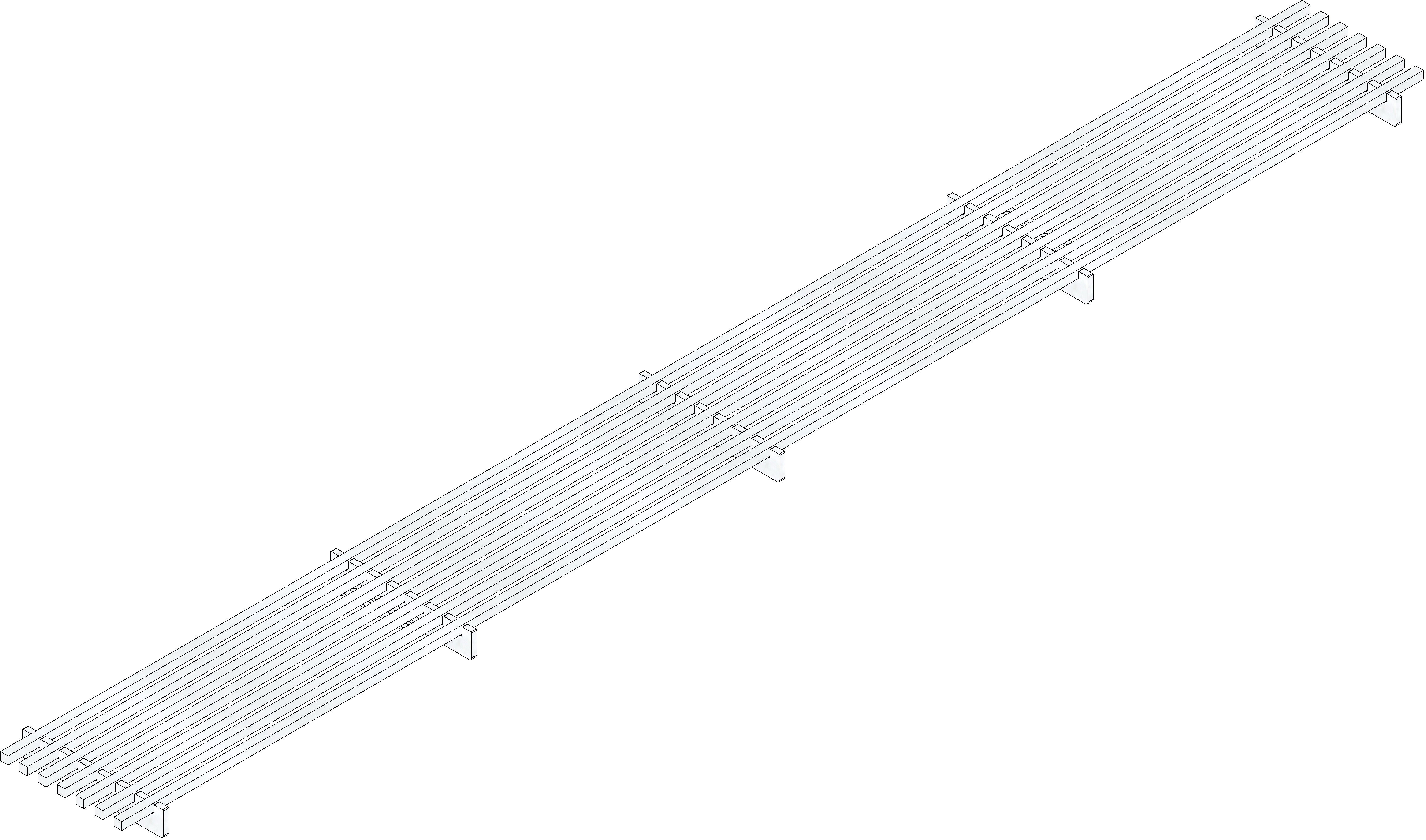

Product image
Technical drawing
Drawing (CAD)
Drawing

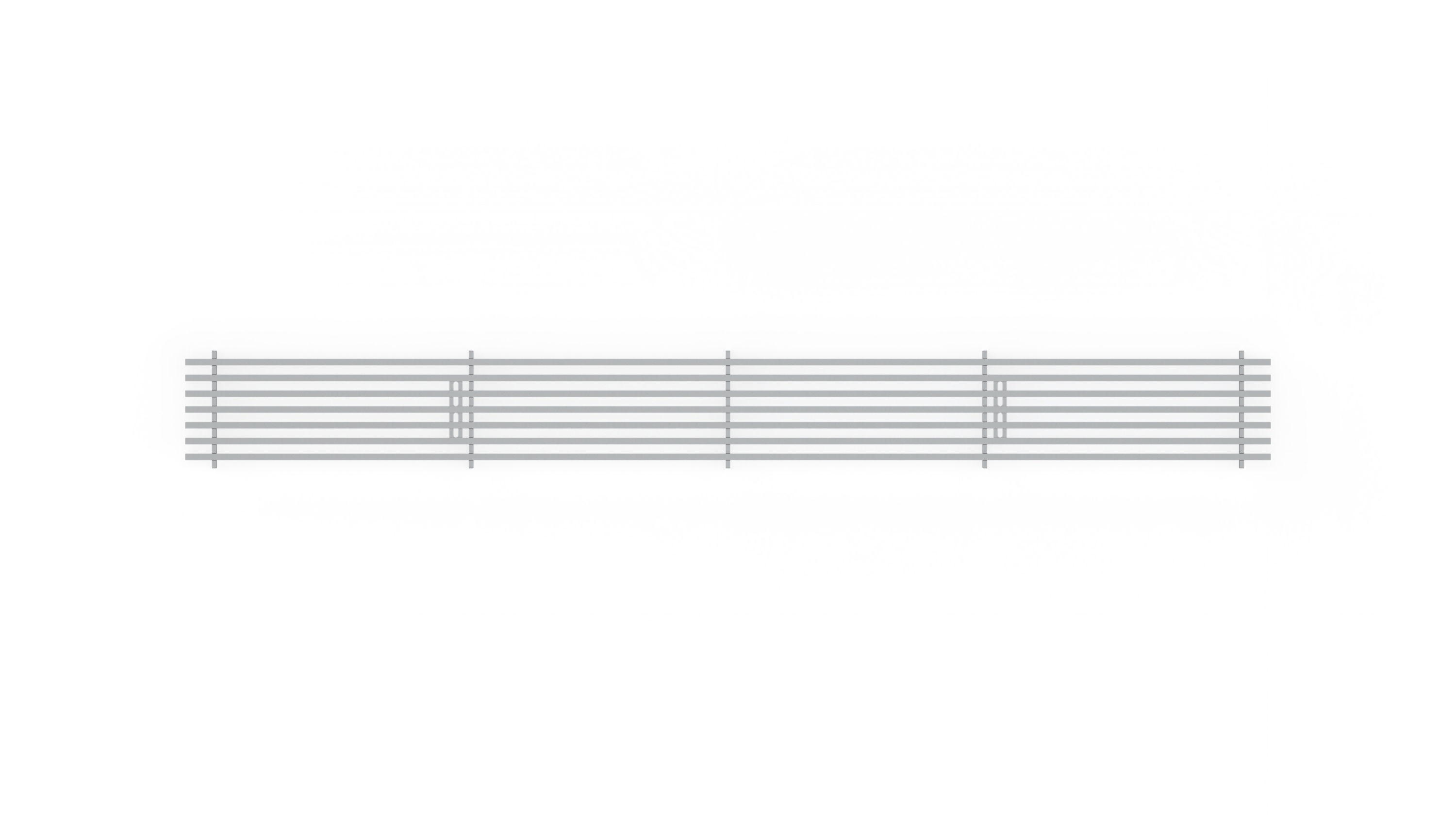

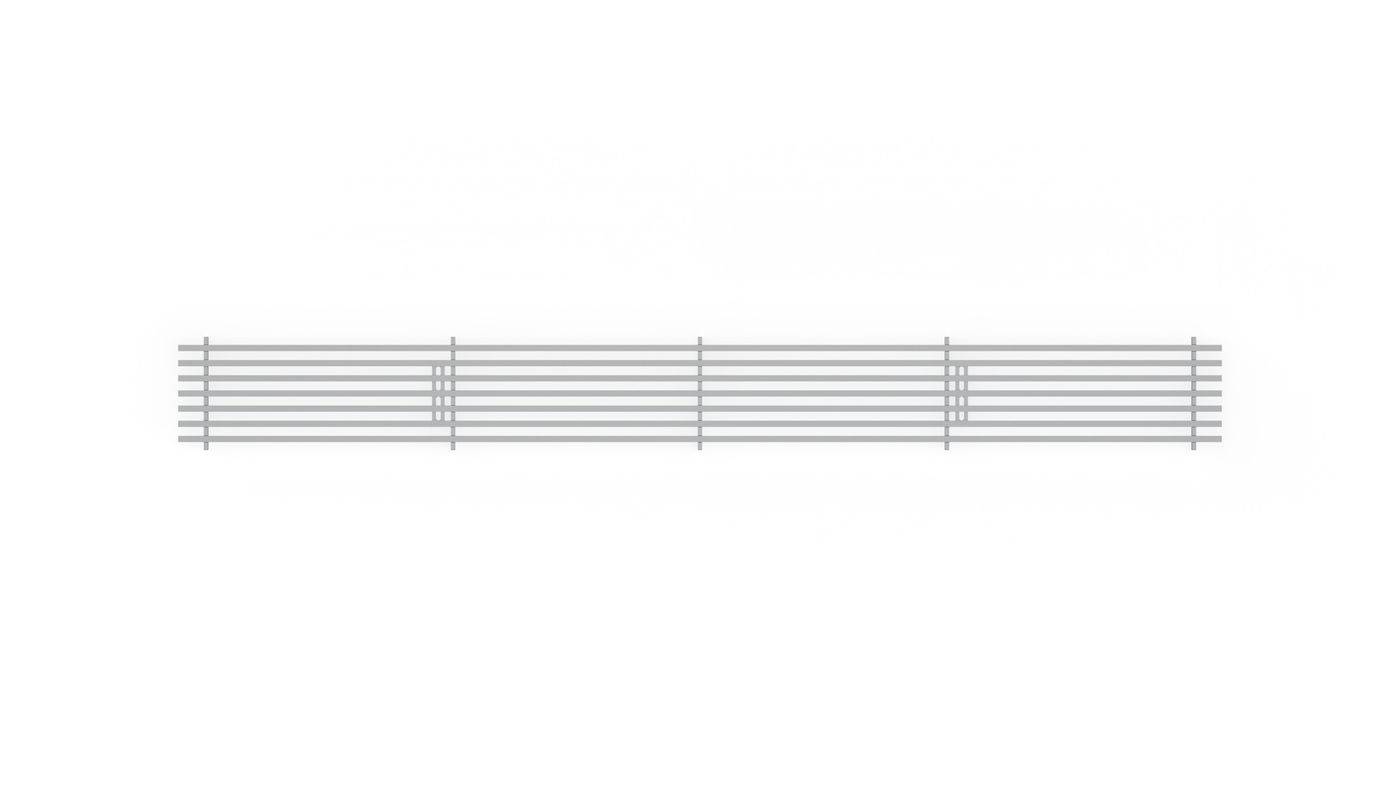

Top view
Data Sheet
Technical information and metrics
Article No.
33395
Length
1000 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.24 kg
Material
Stainless steel 1.4301
Intake cross-section
636.0 cm²/m
Nominal size
115
Inlet opening
0
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover Filigree, bar distance 8 mm, stainless steel, pedestrian and wheelchair-accessible, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 1 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115 - Longitudinal cover Filigree, bar distance 8 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 1000 mm, item no. 33395
Packaging unit
-
