Article No. 60905
STEELFIX REGULAR 115
Longitudinal cover, bar distance 12 mm, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

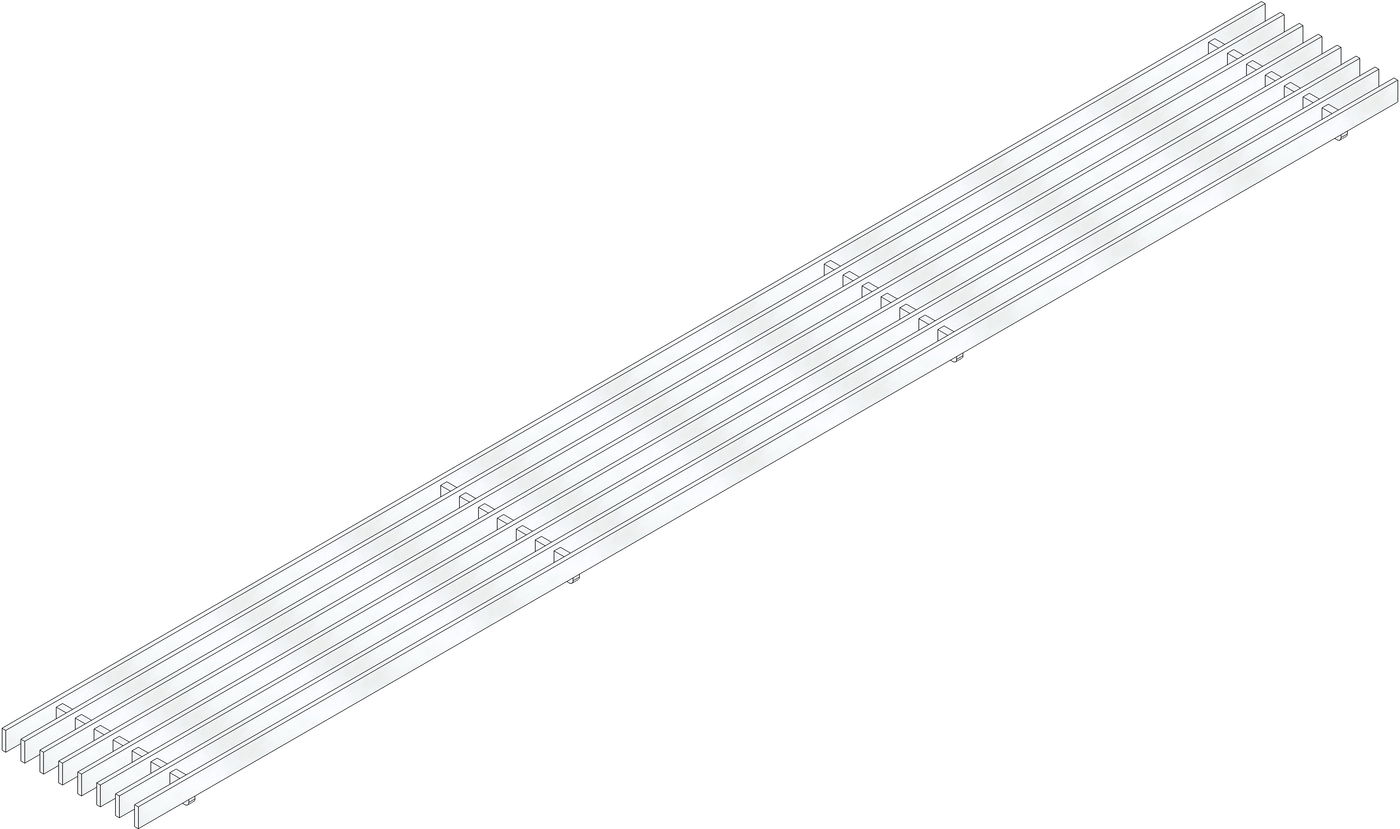

Technical drawing
Drawing (CAD)

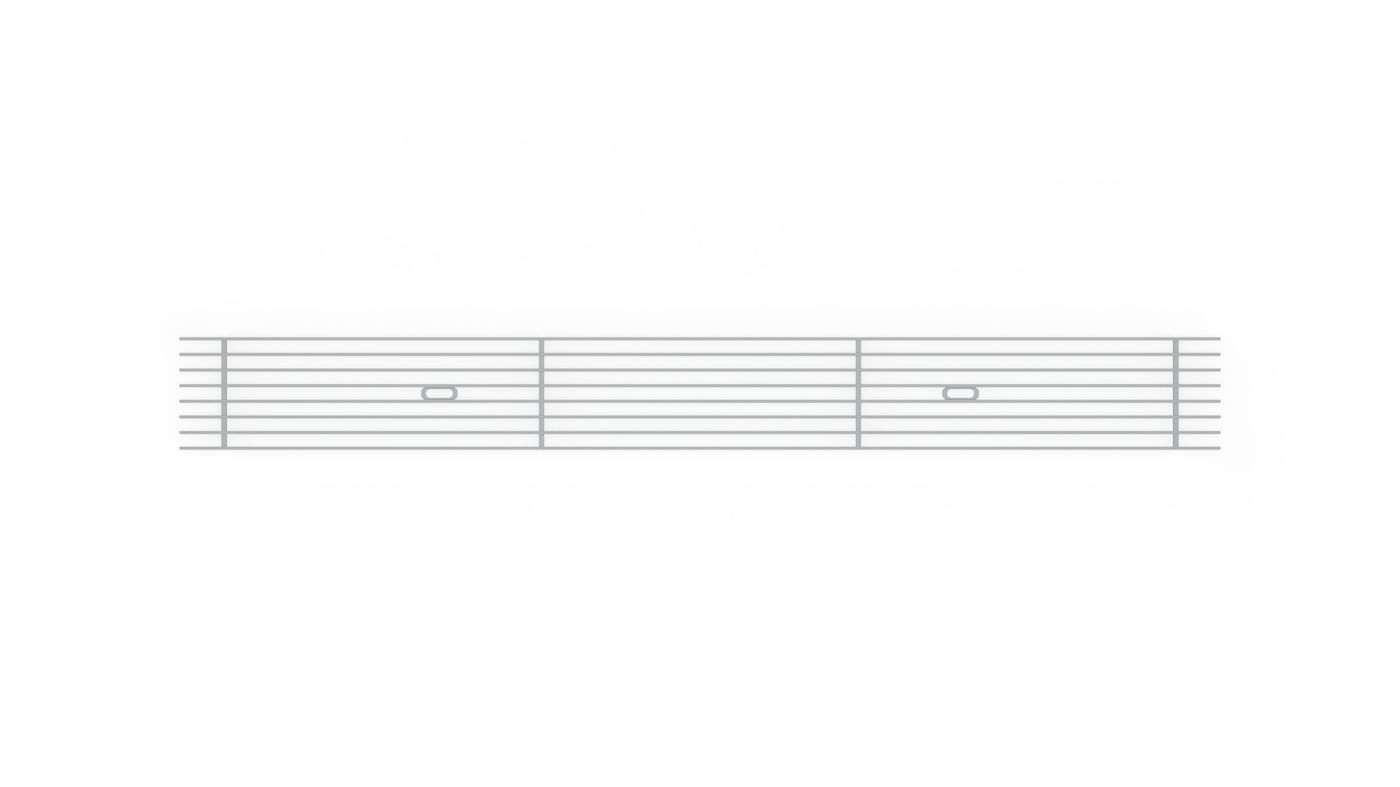

Top view
Data Sheet
Technical information and metrics
Article No.
60905
Length
1000 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.93 kg
Material
Stainless steel 1.4301
Intake cross-section
822.0 cm²/m
Nominal size
115
Inlet opening
0
Fixing type
Loose blatant
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover bar distance 12 mm, stainless steel, cl. A 15, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 1 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115 -longitudinal cover, bar distance 12 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 1000 mm, item no. 60905
Packaging unit
306
