Article No. 69021
STEELFIX REGULAR 115
Mesh cover MS 30/10 mm, galvanised, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

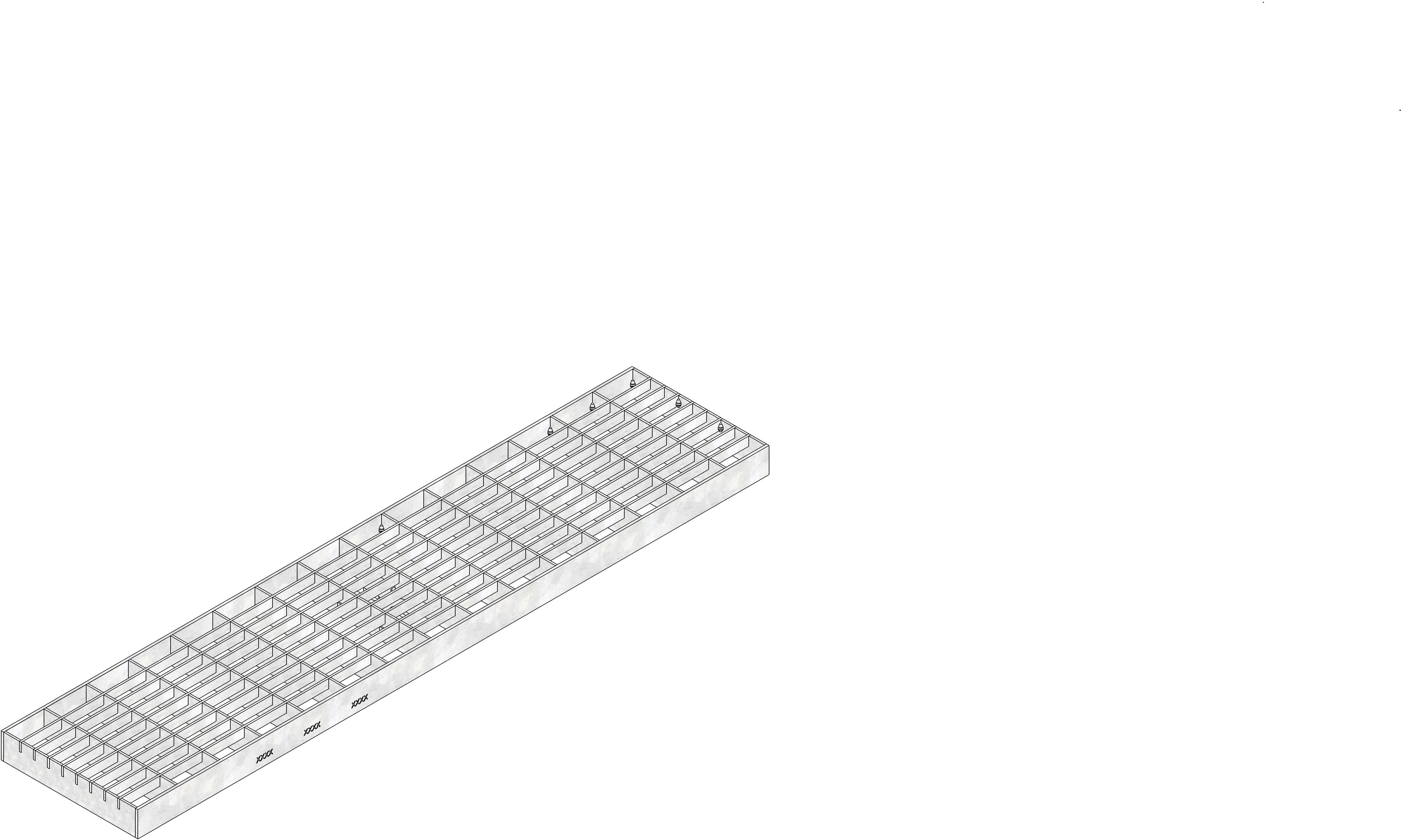

Product image
Technical drawing
Drawing (CAD)

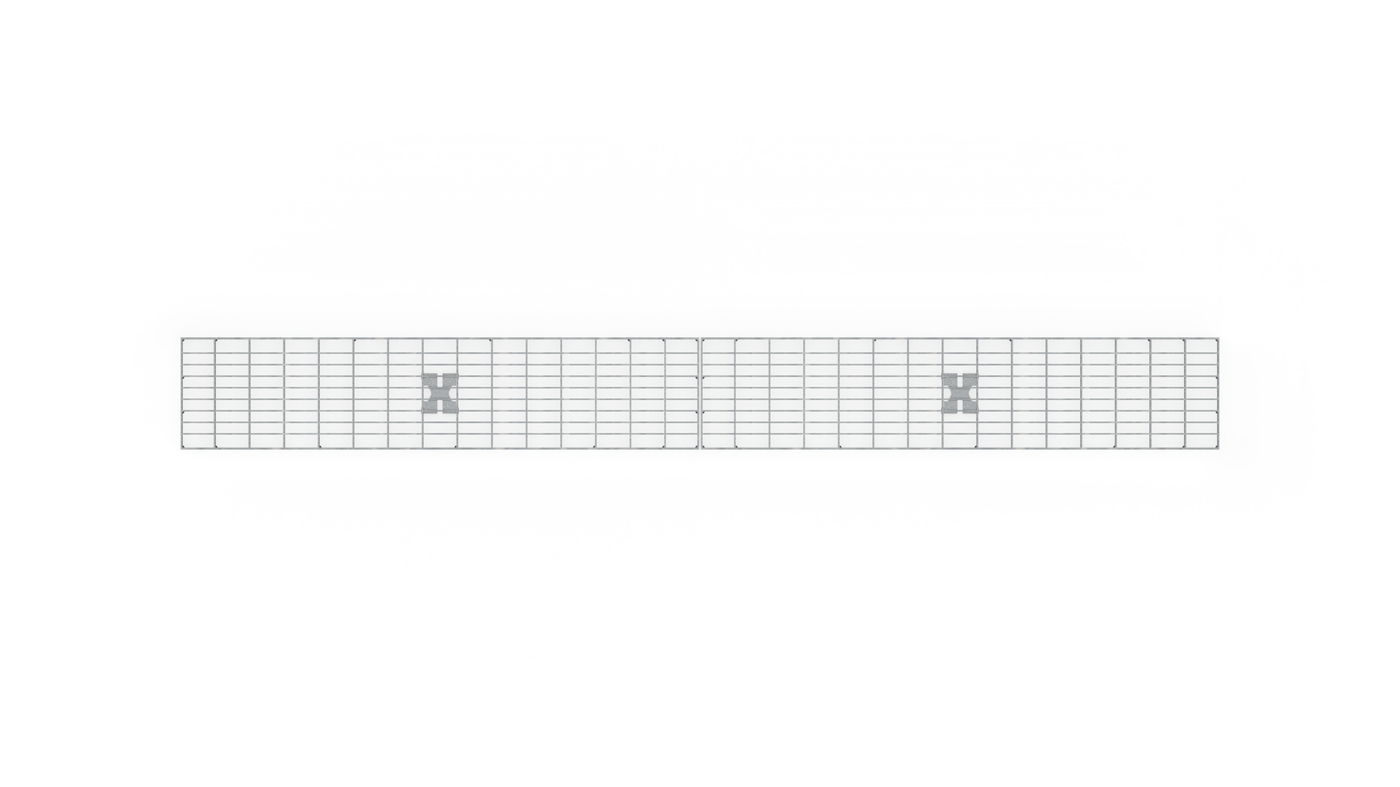

Drawing

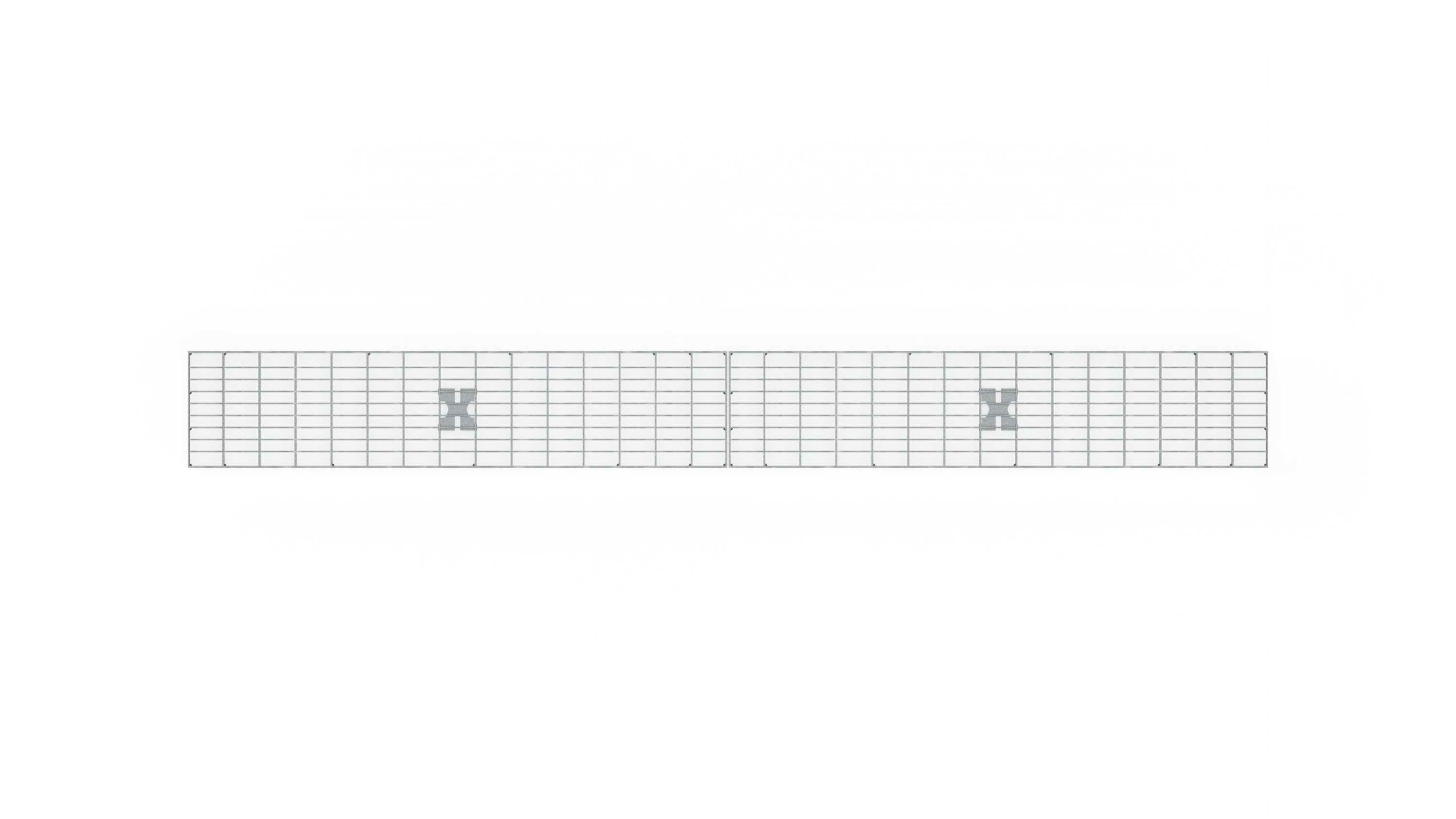

Top view
Data Sheet
Technical information and metrics
Article No.
69021
Length
500 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.11 kg
Material
hot-dip galvanised steel
Intake cross-section
861.0 cm²/m
Nominal size
115
Inlet opening
10
Fixing type
Locking handle
Material cover
hot-dip galvanised steel
Sales text
Mesh cover MS 30/10 mm, galvanised, cl. A 15, 1-fold screwable, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 0.5 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115 - Mesh cover MS 30/10 mm, made of galvanised steel, load class A 15, 1-fold bolting possibility, installation length 500 mm, item no. 69021
Packaging unit
-
