Article No. 69023
STEELFIX REGULAR 115
Mesh cover MS 30/10 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

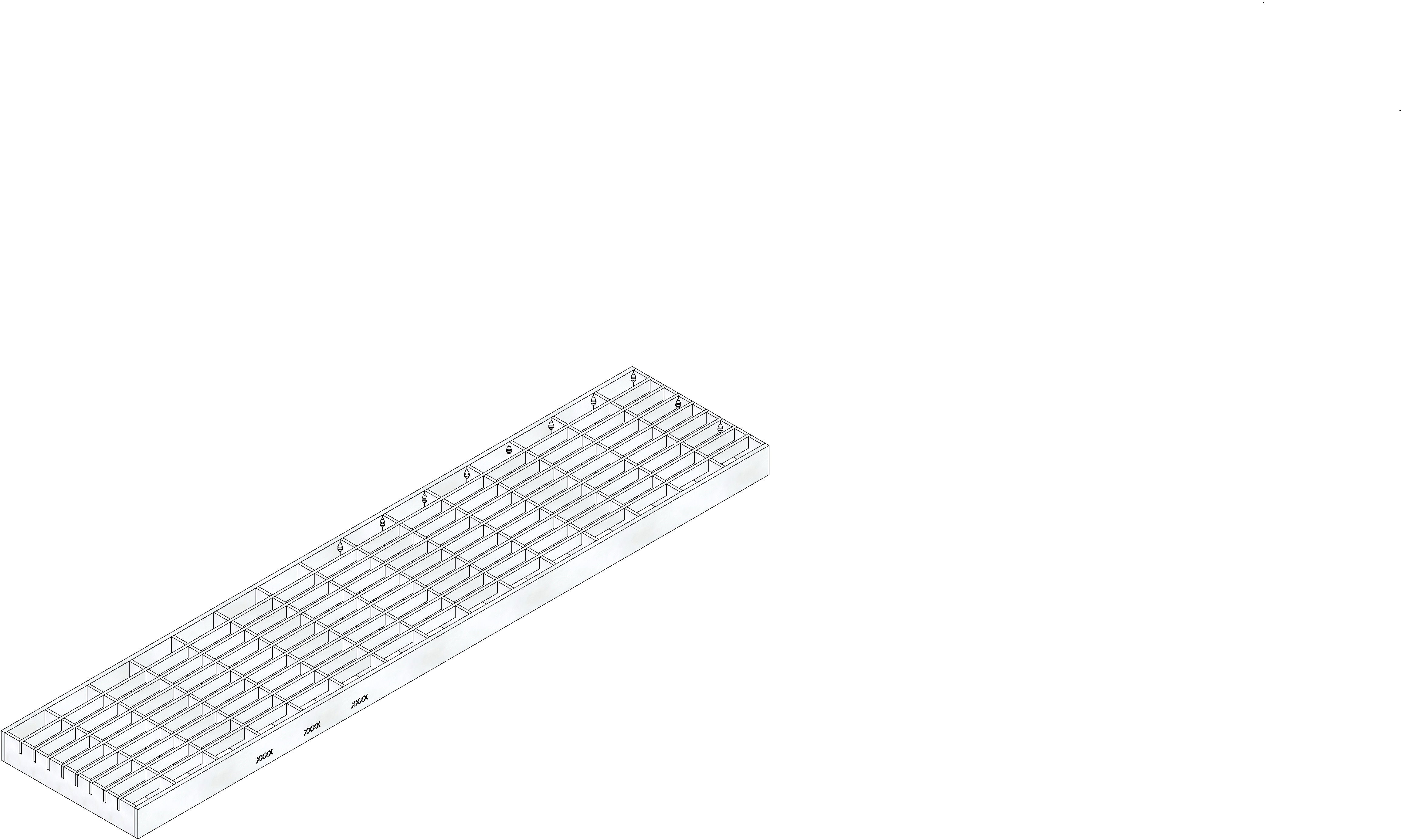

Product image
Technical drawing
Drawing (CAD)

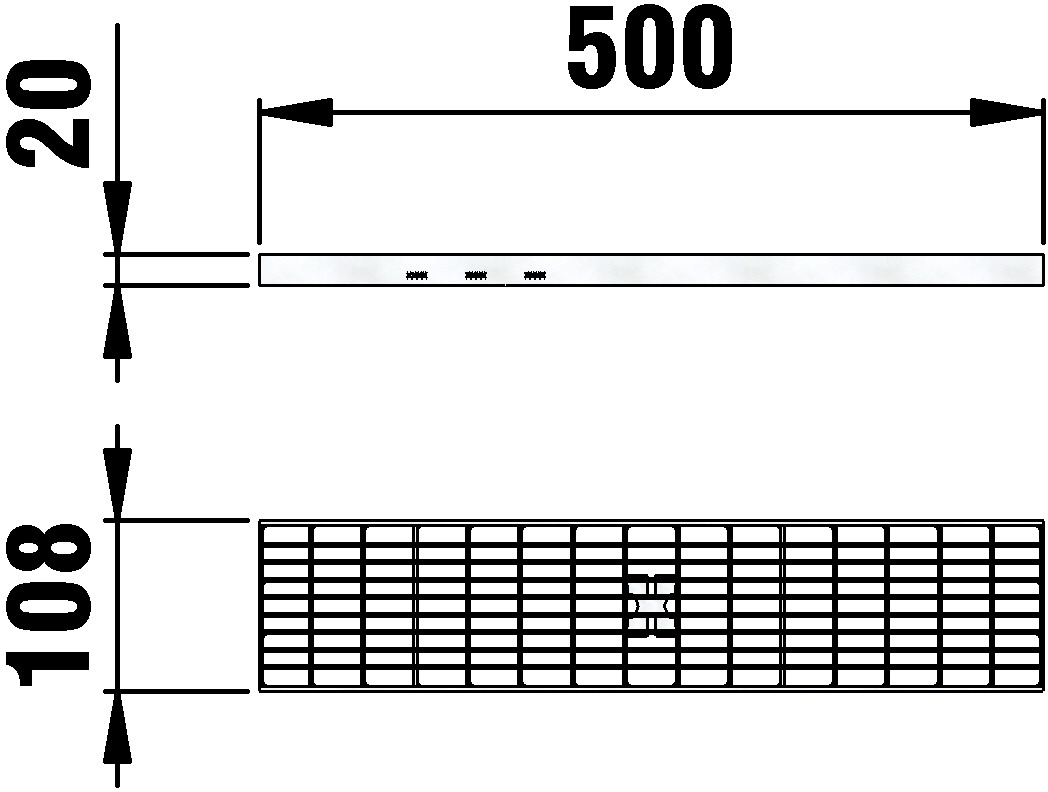

Drawing

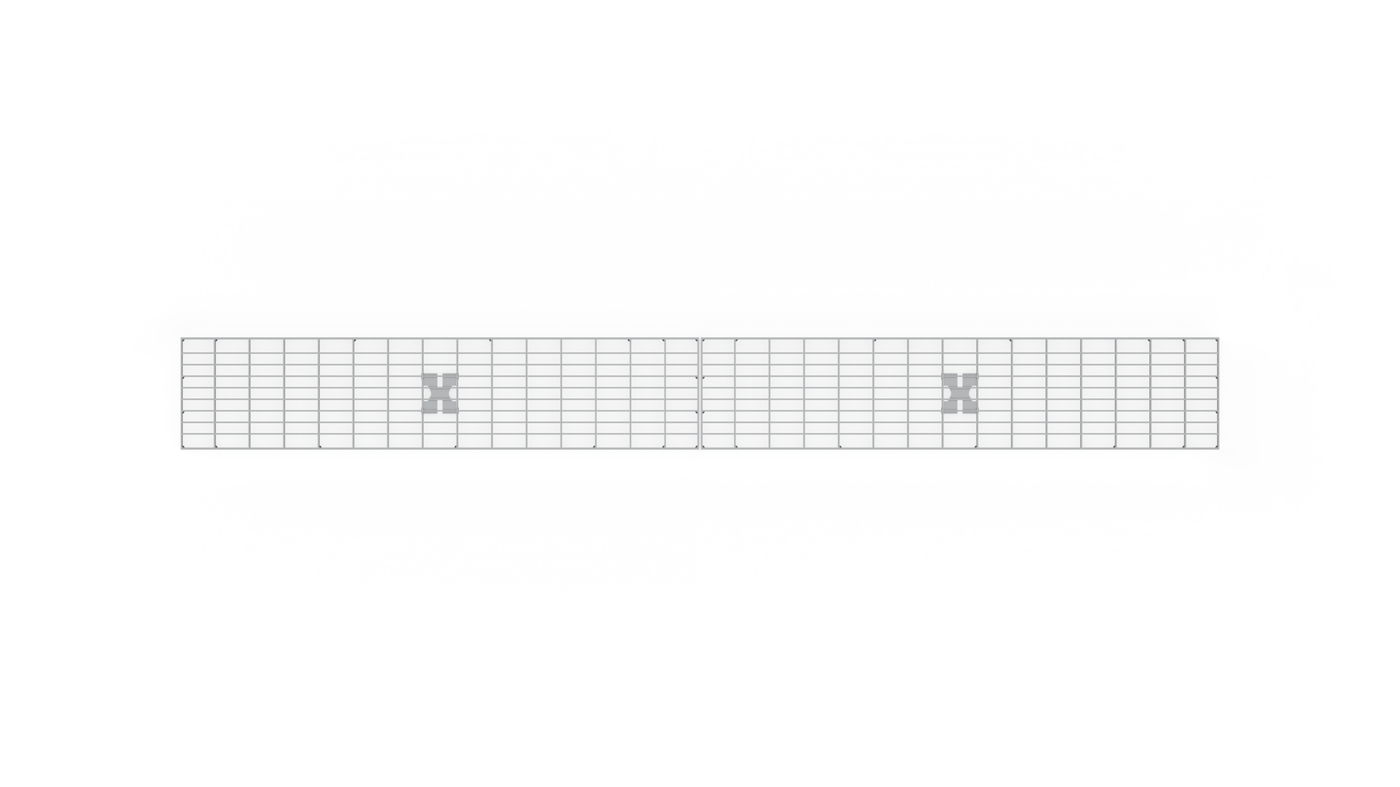

Top view
Data Sheet
Technical information and metrics
Article No.
69023
Length
500 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.41 kg
Material
Stainless steel 1.4301
Intake cross-section
861.0 cm²/m
Nominal size
115
Inlet opening
10
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, 1-fold screwable, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 0.5 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115 - Mesh cover MS 30/10 mm, made of stainless steel CNS 1.4301, load class A 15, 1-fold bolting possibility, installation length 500 mm, item no. 69023
Packaging unit
-
