Article No. 66007

STEELFIX REGULAR 135, height 75 mm

Type 75, drain element, galvanised, 1.0 m

Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

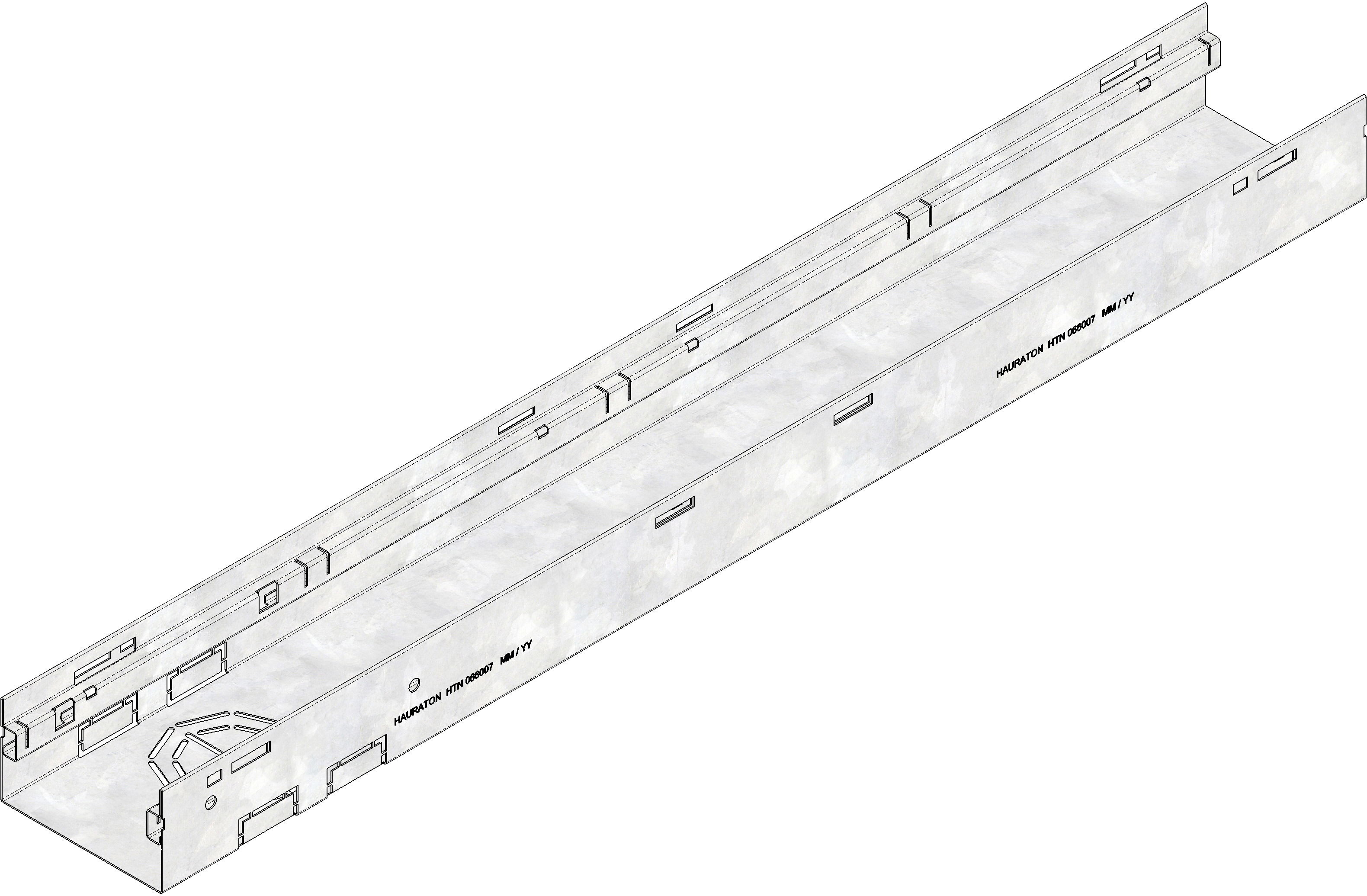

Product image

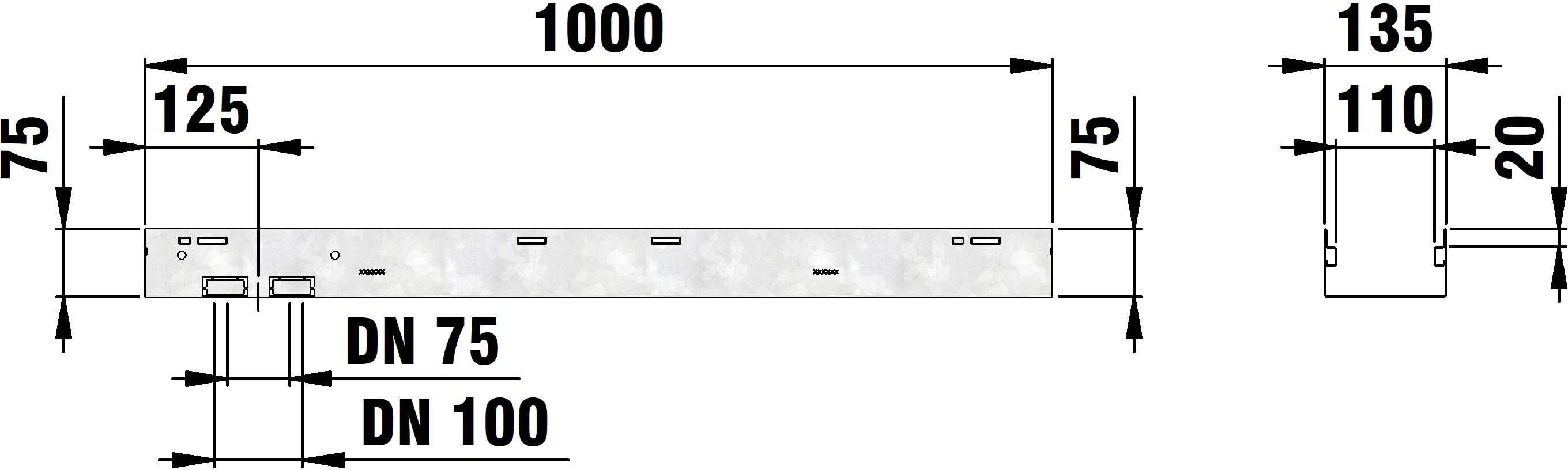

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66007
Length
1000 mm
Width
135 mm
Height
75 mm
Weight
3.06 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
67 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 135 Channel body type 75 - drain element, galvanised, installation height 75 mm, 1 m
Product description
STEELFIX REGULAR 135 type 75 - Channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x135x75 mm, item no. 66007
