Article No. 66003

STEELFIX REGULAR 135, height 75 mm

Type 75, galvanised, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

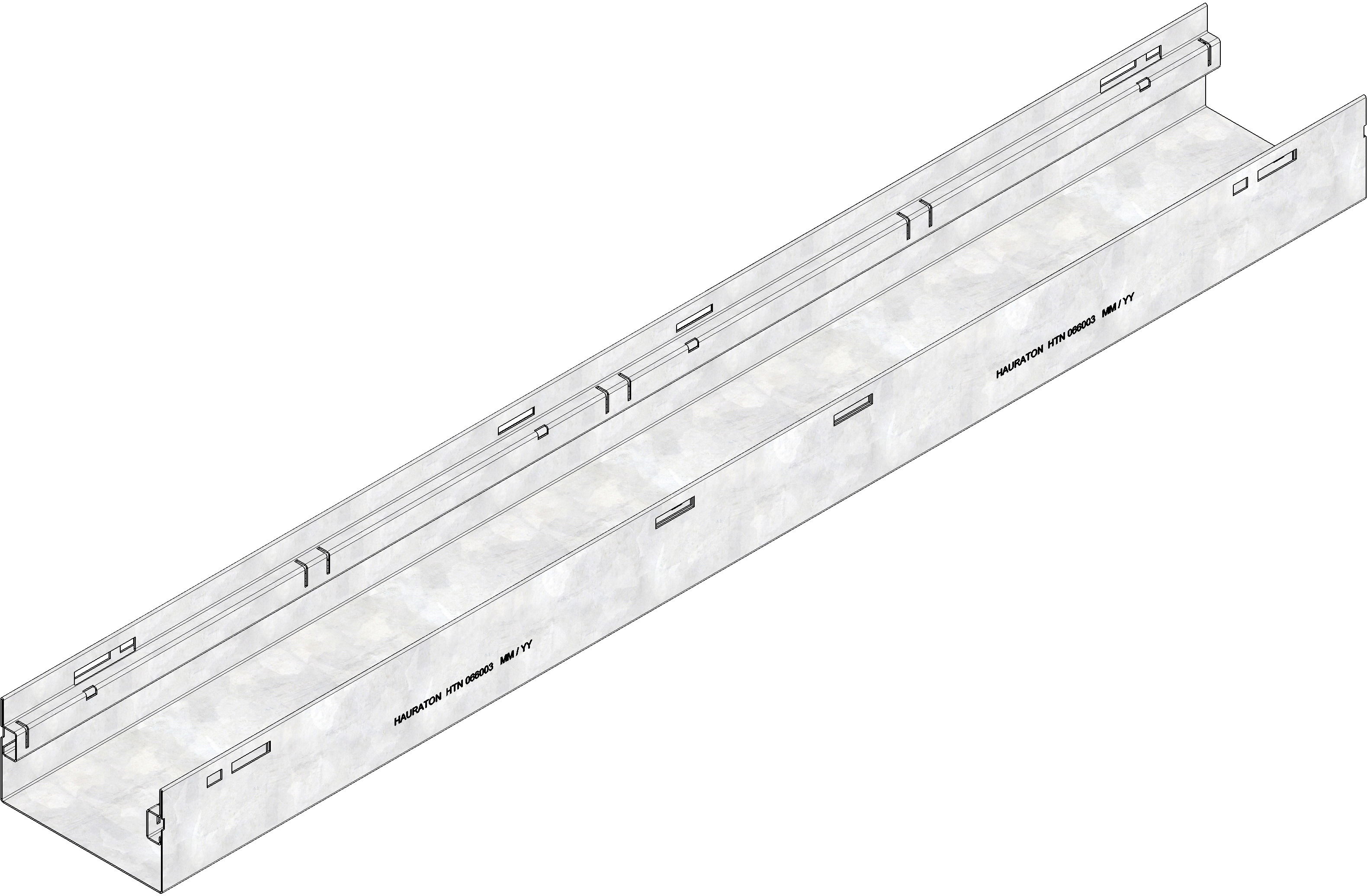

Product image

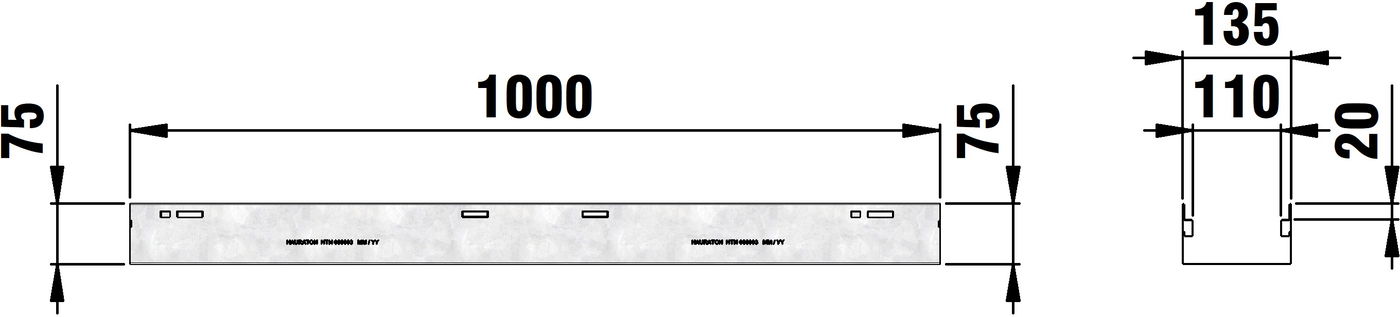

Technical drawing

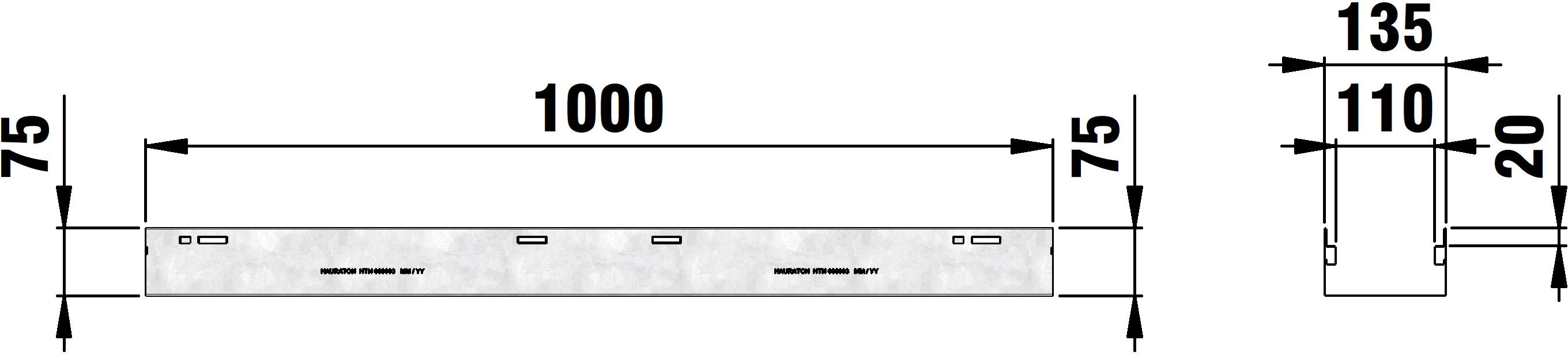

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66003
Length
1000 mm
Width
135 mm
Height
75 mm
Weight
3.10 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
67 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 135 Channel body type 75, galvanised, installation height 75 mm, 1 m
Product description
STEELFIX REGULAR 135 type 75 - Channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, LxWxH 1000x135x75 mm, item no. 66003
Packaging unit
-

Tender Texts

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example
