Article No. 66023

STEELFIX REGULAR 205, height 45 mm

Type 45, drain element, galvanised, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

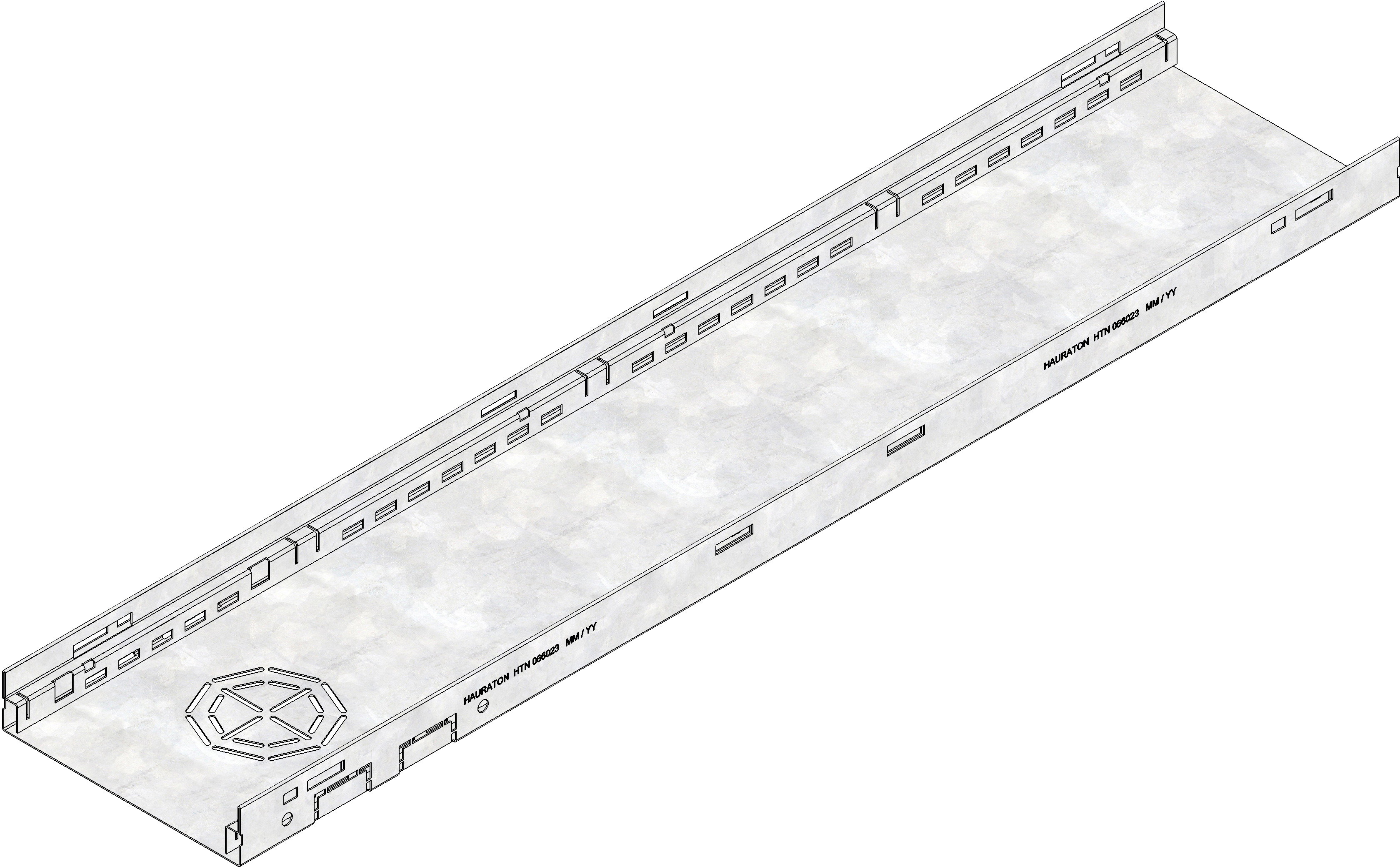

Product image

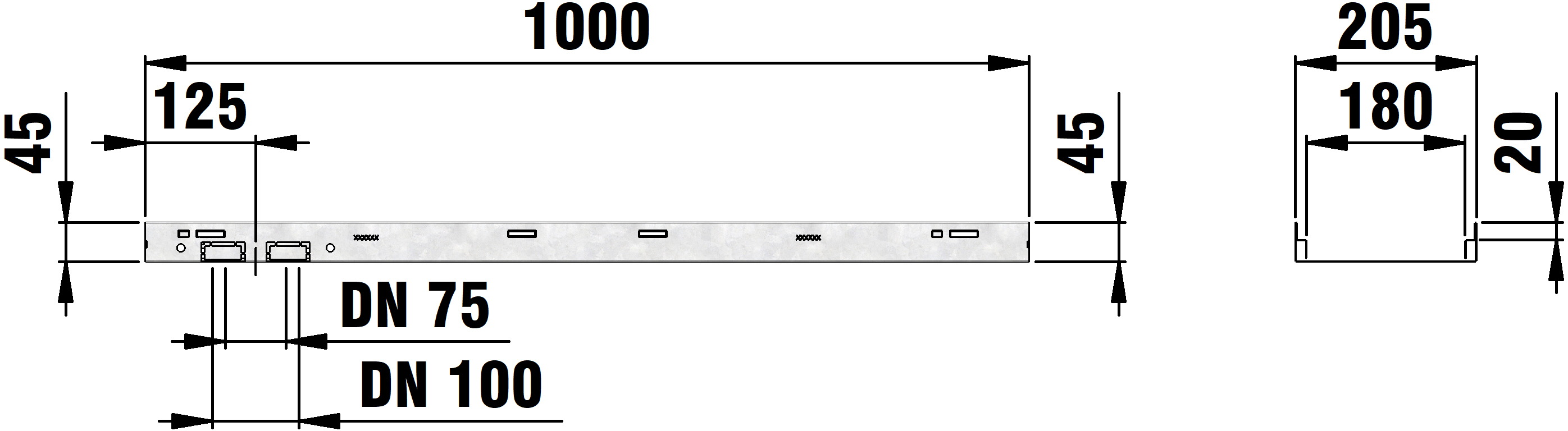

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66023
Length
1000 mm
Width
205 mm
Height
45 mm
Weight
2.71 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
43 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 205 Channel body type 45 - drain element, galvanised, installation height 45 mm, 1 m
Product description
STEELFIX REGULAR 205 type 45 - Channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x205x45 mm, item no. 66023
Packaging unit
-

Tender Texts

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example
